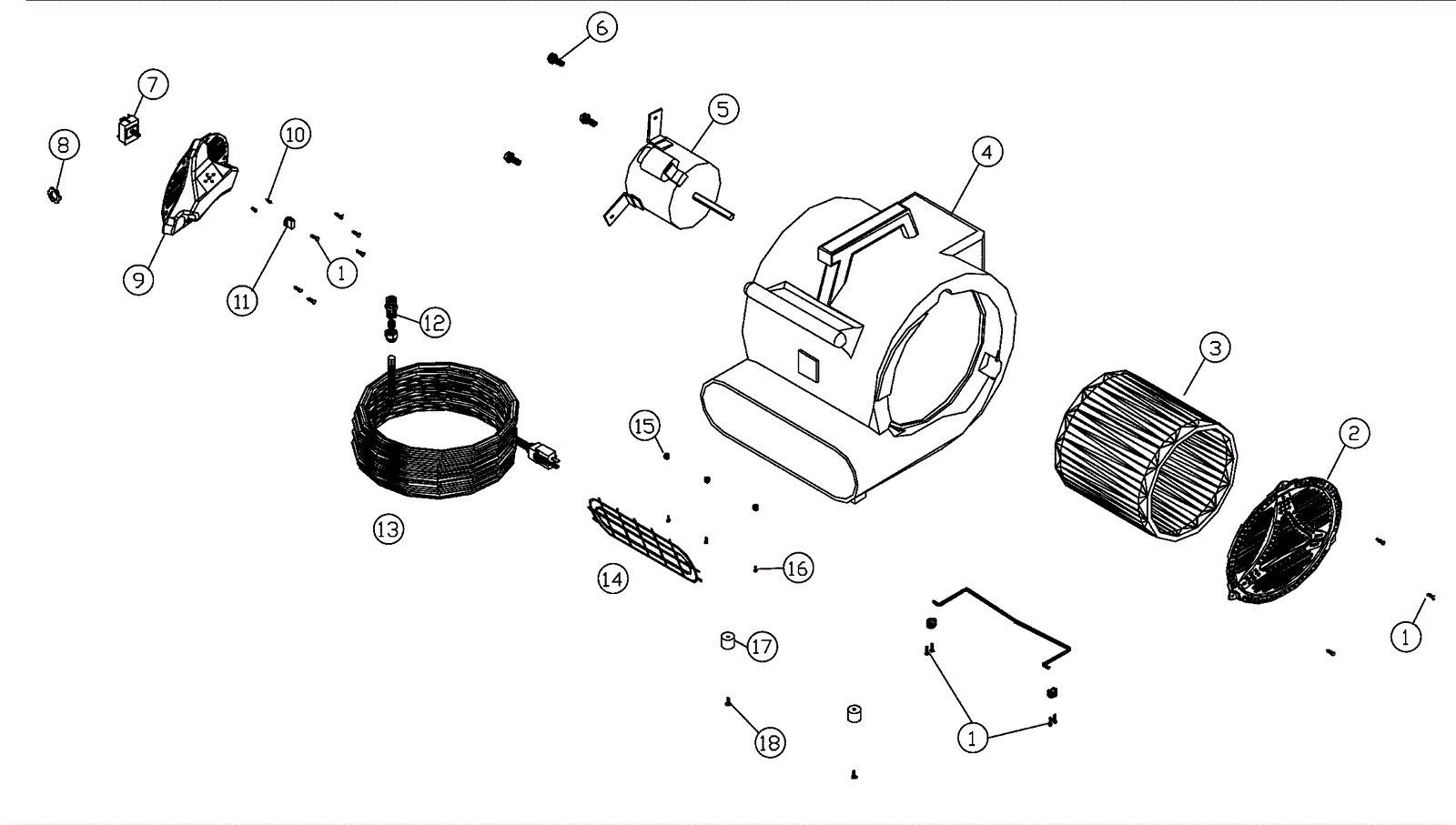

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0680
|
Screw 6 x 1/2 pan head phillips T-A sheet metal |
|
|
|
2 |
190-0249
|
Intake panel |
|
|
|
3 |
190-1672
|
Squirrel cage with lock nut (metal) |
|
|
|
4 |
190-0250
|
Dryer housing (OBSOLETE) |
|
|
|
5 |
190-0252
|
1/2HP dryer motor and capacitor (OBSOLETE) |
|
|
|
6 |
190-0254
|
Screw 3/8-16 x 1/2 |
|
|
|
7 |
183-7483
|
3 speed rotary switch |
|
|
|
8 |
216-0181
|
Nut 1/2 lock steel conduit |
|
|
|
9 |
190-0257
|
Motor control panel |
|
|
|
10 |
999-1538
|
Screw M4-.7 x 6mm flat head phillips |
|
|
|
11 |
190-0258
|
Switch knob |
|
|
|
12 |
216-0173
|
Strain relief |
|
|
|
13 |
183-0563
|
16/3 power cord 20 foot |
|
|
|
14 |
190-0259
|
Grill |
|
|
|
15 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
|
|
|
16 |
999-0916
|
Screw 8-32 x 1/2 pan head phillips stainless steel |
|
|
|
17 |
190-0030
|
Rubber foot (black) (new style) |
|
|
|
18 |
999-0697
|
Screw 8-32 x 3/4 pan head phillips stainless steel |
|
|
|
