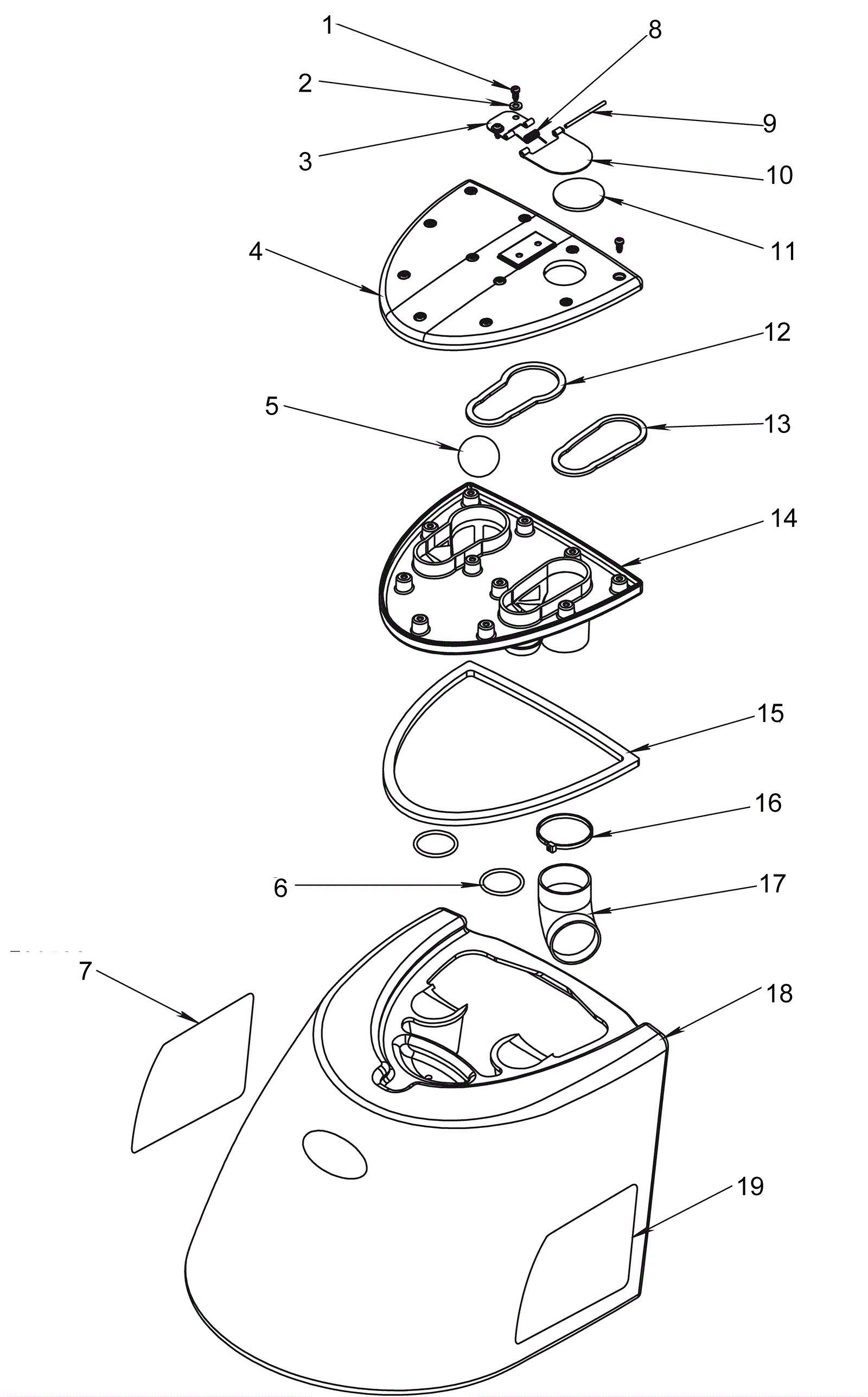

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-4833
|
Screw |
13 |
|
|
2 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
3 |
189-4834
|
Hinge mount plate |
1 |
|
|
4 |
189-4835
|
Upper recovery tank window cover |
1 |
|
|
5 |
189-4836
|
Float ball |
1 |
|
|
6 |
189-4837
|
Recovery tank seal |
2 |
|
|
7 |
189-4838
|
Right hand label |
1 |
|
|
8 |
189-4839
|
Hinge spring |
1 |
|
|
9 |
189-4840
|
Hinge pin |
1 |
|
|
10 |
189-4841
|
Hinged door |
1 |
|
|
11 |
189-4842
|
Hinge door gasket |
1 |
|
|
12 |
189-8793
|
Lower vacuum lid gasket |
1 |
|
|
13 |
189-8794
|
Lower solution lid gasket |
1 |
|
|
14 |
189-8795
|
Lower window cover |
1 |
|
|
15 |
189-8796
|
Lid gasket |
1 |
|
|
16 |
189-4843
|
Cable tie |
1 |
|
|
17 |
189-4844
|
90 degree hose cuff |
1 |
|
|
18 |
189-4845
|
Recovery tank (red) |
1 |
|
|
19 |
189-4846
|
Left hand label |
1 |
|
|
