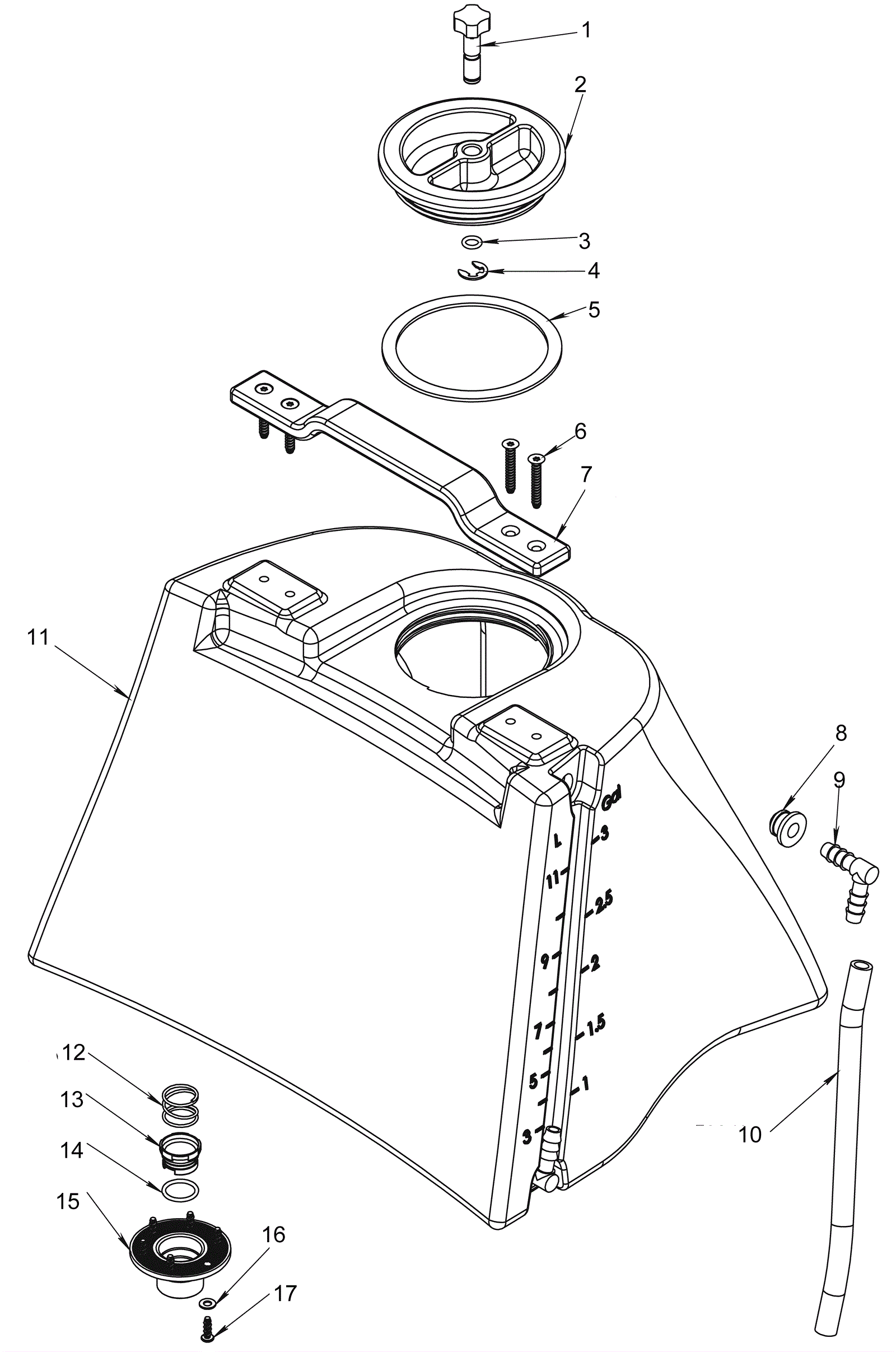

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 189-8790 Vent pin 1
2 189-4824 Solution tank cap 1
3 189-4482 O-ring 1
4 189-8792 E-clip 1
5 189-3208 Gasket 1
6 189-4825 Screw 4
7 189-8789 Solution tank handle 1
8 189-4607 Grommet 1
9 189-4826 Elbow fitting 1
10 189-4828 Tube 1
11 189-4829 Solution tank 1
12 189-4830 Plunger spring 1
14 189-4740 O-ring 1
15 189-4832 Screw 1
16 189-4708 Washer M4 1
17 189-4817 Screw 1
