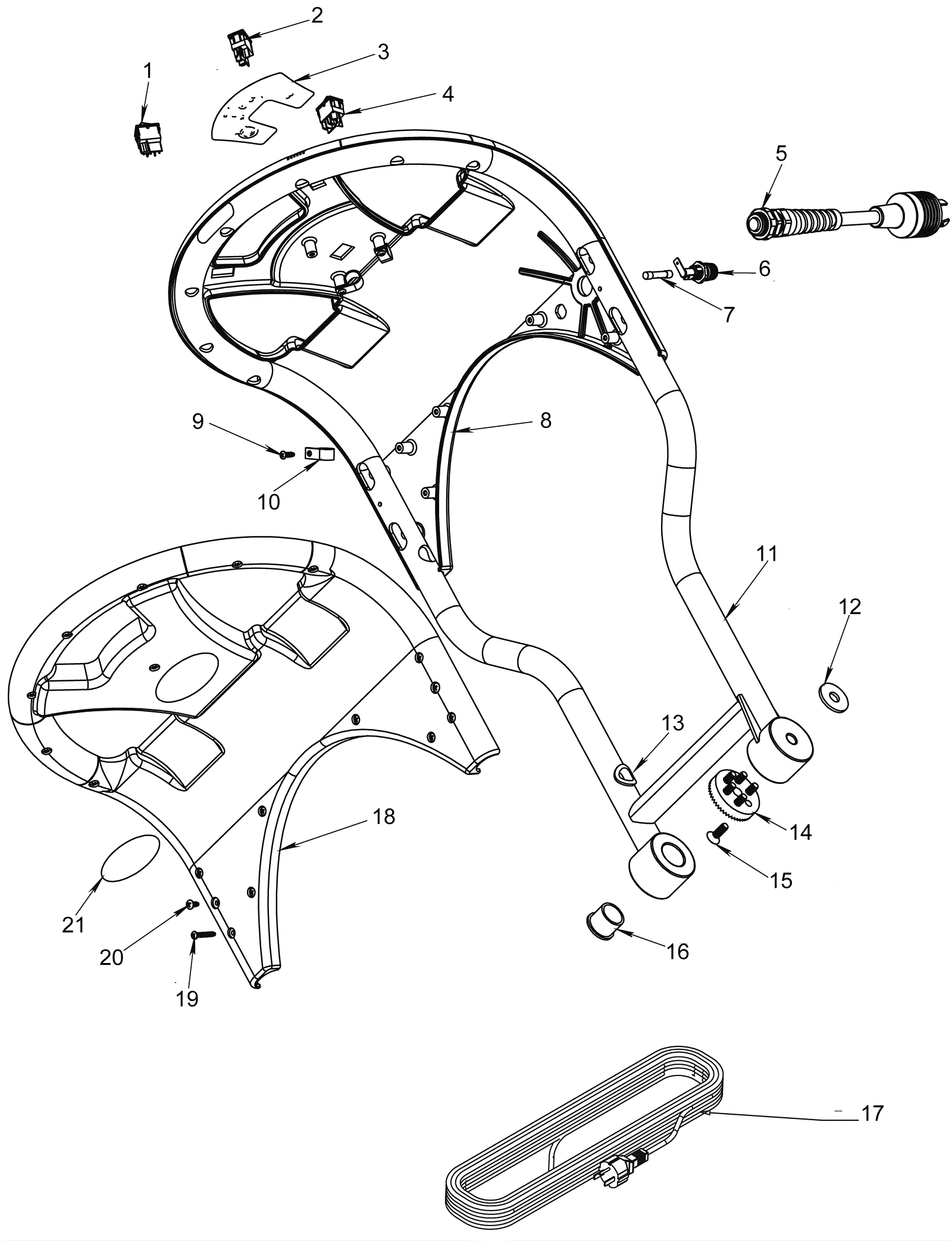

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-4816
|
Rocker switch |
1 |
|
|
2 |
189-4806
|
Rocker switch |
1 |
|
|
3 |
189-4807
|
GeneSys 15 console label |
1 |
|
|
4 |
189-4808
|
Lighted rocker switch (red) |
1 |
|
|
5 |
189-4385
|
Twist lock pigtail cord assembly with strain relief |
1 |
|
|
6 |
189-5640
|
Fuse holder |
1 |
|
|
7 |
189-4809
|
20amp fuse |
1 |
|
|
8 |
189-4811
|
Rear handle cover |
1 |
|
|
9 |
189-4817
|
Screw |
1 |
|
|
10 |
189-4812
|
Clamp |
1 |
|
|
11 |
189-4810
|
Handle weldment |
1 |
|
|
12 |
189-4736
|
Washer |
1 |
|
|
13 |
189-4739
|
Grommet |
1 |
|
|
14 |
189-4757
|
Handle adjustment gear |
1 |
|
|
15 |
999-1571
|
Screw 1/4-20 x 3/4 flat head socket stainless steel |
1 |
|
|
16 |
189-4737
|
Bushing |
1 |
|
|
17 |
189-4815
|
50 foot extension cord |
1 |
|
|
18 |
189-4814
|
Front handle cover |
1 |
|
|
19 |
189-4818
|
Screw |
8 |
|
|
20 |
999-1624
|
Screw #8-32 x 3/8 pan head phillips stainless steel |
2 |
|
|
21 |
189-4813
|
Front handle cover label |
1 |
|
|
