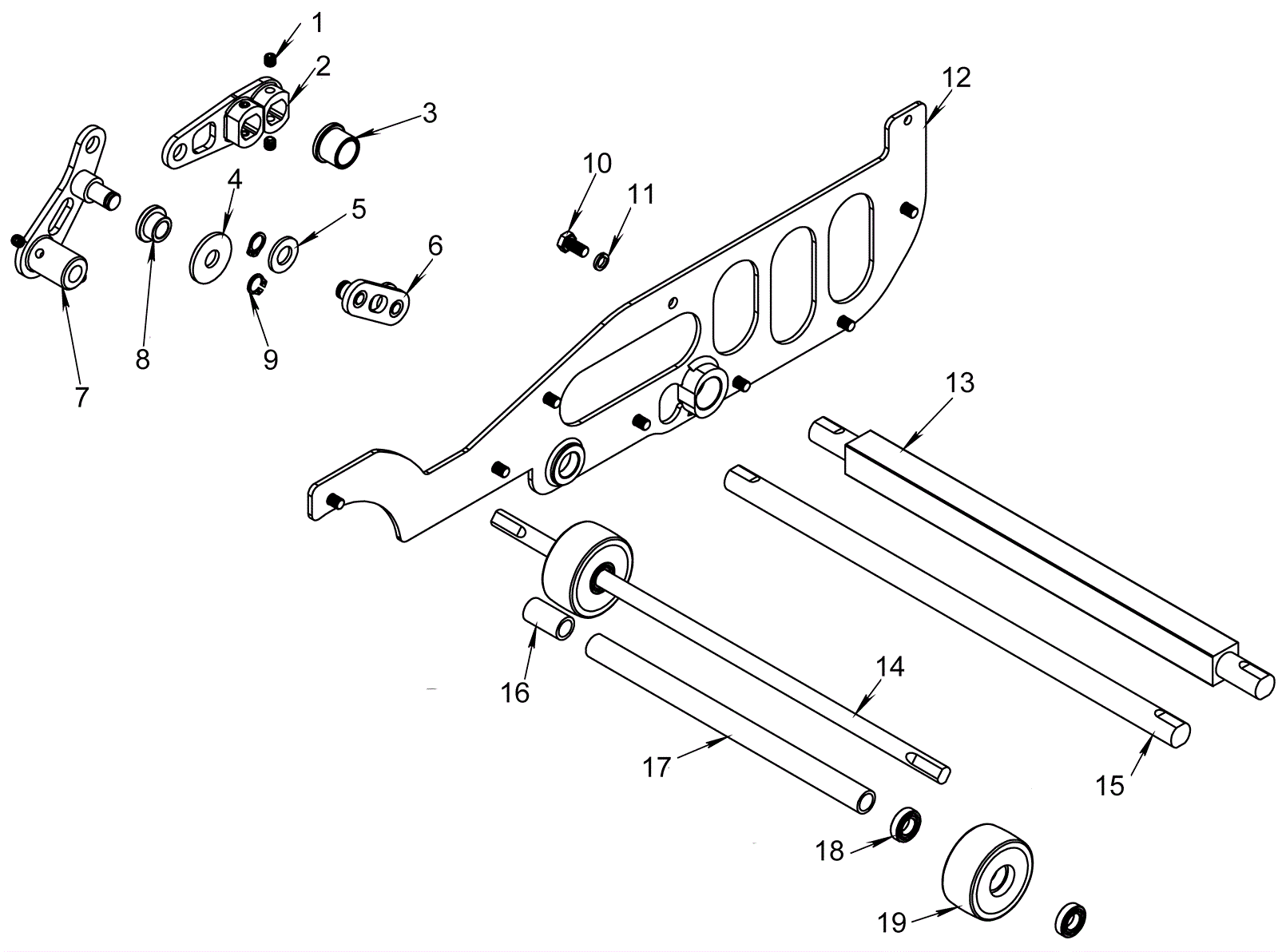

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-4774
|
Screw |
2 |
|
|
2 |
189-4797
|
Right hand lift arm weldment |
1 |
|
|
3 |
189-4770
|
Bushing |
1 |
|
|
4 |
189-4736
|
Washer |
1 |
|
|
5 |
999-9099
|
Washer M10 flat stainless steel |
1 |
|
|
6 |
189-4775
|
Foot pedal link weldment |
1 |
|
|
7 |
189-4798
|
Right hand pivot lever linkage |
1 |
|
|
8 |
189-4768
|
Bushing |
1 |
|
|
9 |
189-4772
|
Snap ring |
2 |
|
|
10 |
189-4778
|
Bolt |
1 |
|
|
12 |
189-4799
|
Lower frame bushing plate weldment |
1 |
|
|
13 |
189-4800
|
Foot pedal axle |
1 |
|
|
14 |
189-4803
|
Front wheel axle |
1 |
|
|
15 |
189-4802
|
Stiffing rod |
1 |
|
|
16 |
189-4805
|
Right hand wheel spacer |
1 |
|
|
17 |
189-4804
|
Inner wheel spacer |
1 |
|
|
18 |
189-4781
|
Bearing |
2 |
|
|
19 |
189-4801
|
Front wheel |
2 |
|
|
