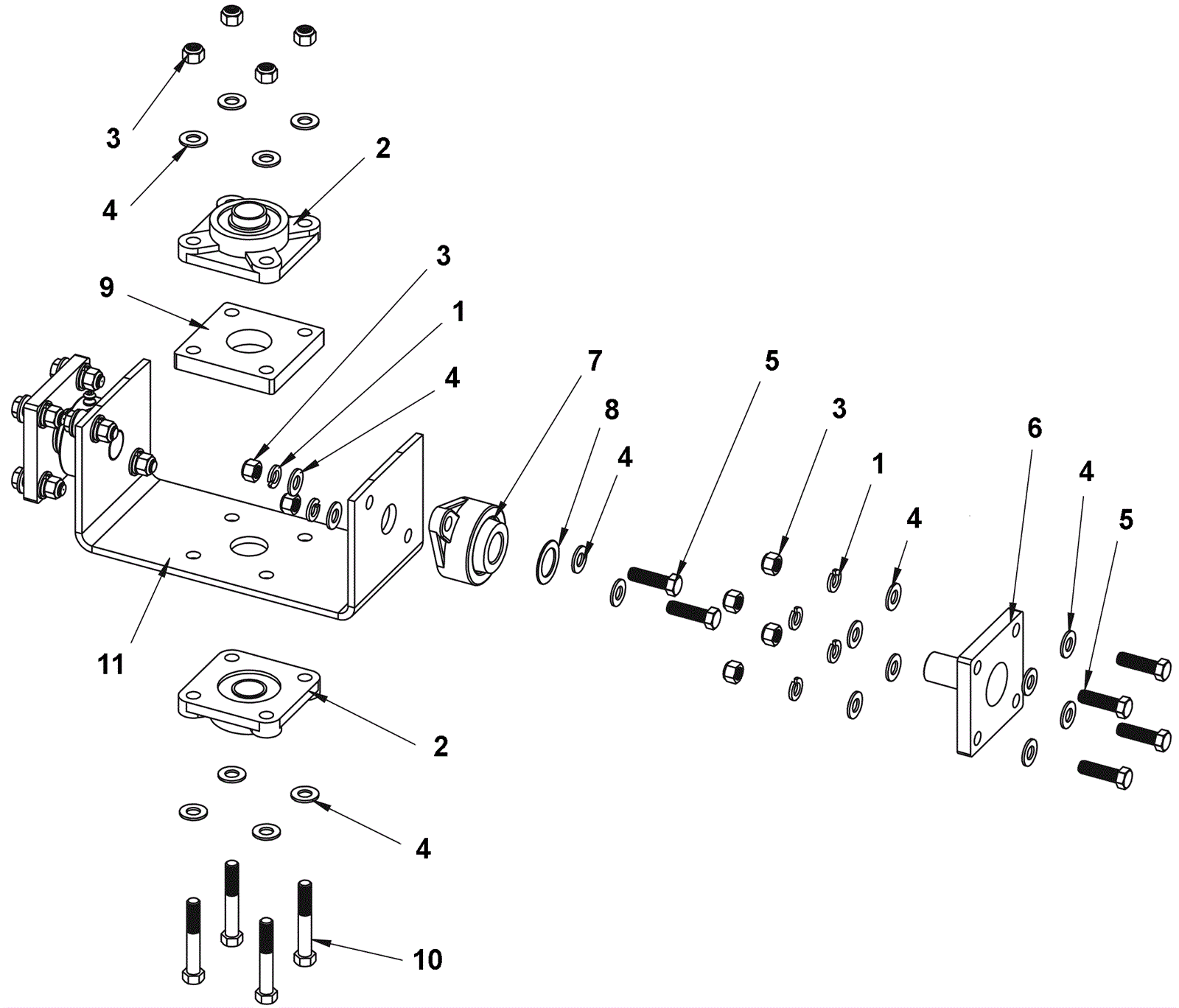

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
204-0070
|
Washer lock |
12 |
|
|
2 |
189-7685
|
Flange bushing |
2 |
|
|
3 |
189-5147
|
Nut |
16 |
|
|
4 |
999-0328
|
Washer 7/16 USS flat |
32 |
|
|
5 |
999-1961
|
Screw 7/16-14 x 1 1/2 hex head zinc |
12 |
|
|
6 |
189-4381
|
Pivot base assembly |
2 |
|
|
7 |
189-4383
|
Bearing block |
2 |
|
|
8 |
189-4382
|
Thrust washer |
2 |
|
|
9 |
189-9973
|
Center shaft spacer |
1 |
|
|
10 |
189-9974
|
Bolt |
4 |
|
|
11 |
189-9975
|
Pivot bracket |
1 |
|
|
