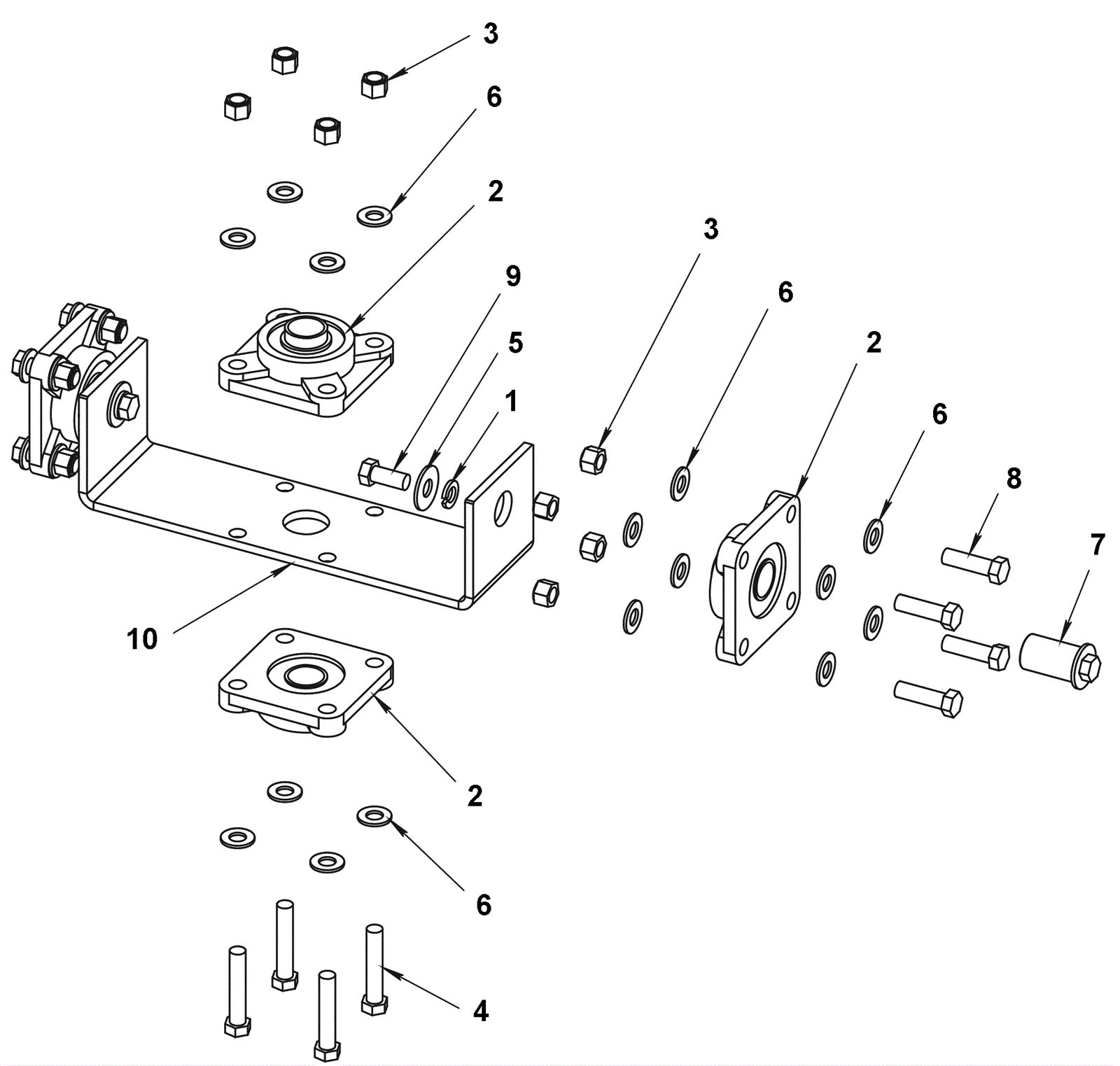

Pivot Bracket Assembly (before SN 6999)

#PartDescription ReqNotesAvailability
1 204-0070 Washer lock 2
2 189-7685 Flange bushing 4
3 189-5147 Nut 12
4 999-1960 Screw 7/16-14 x 2 1/4 hex head zinc 4
5 999-0328 Washer 7/16 USS flat 2
6 999-0328 Washer 7/16 USS flat 24
7 189-7686 Pivot axle 2
8 999-1961 Screw 7/16-14 x 1 1/2 hex head zinc 8
9 999-1962 Screw 7/16-14 x 1 hex head zinc 2
10 189-7687 Pivot bracket 1
