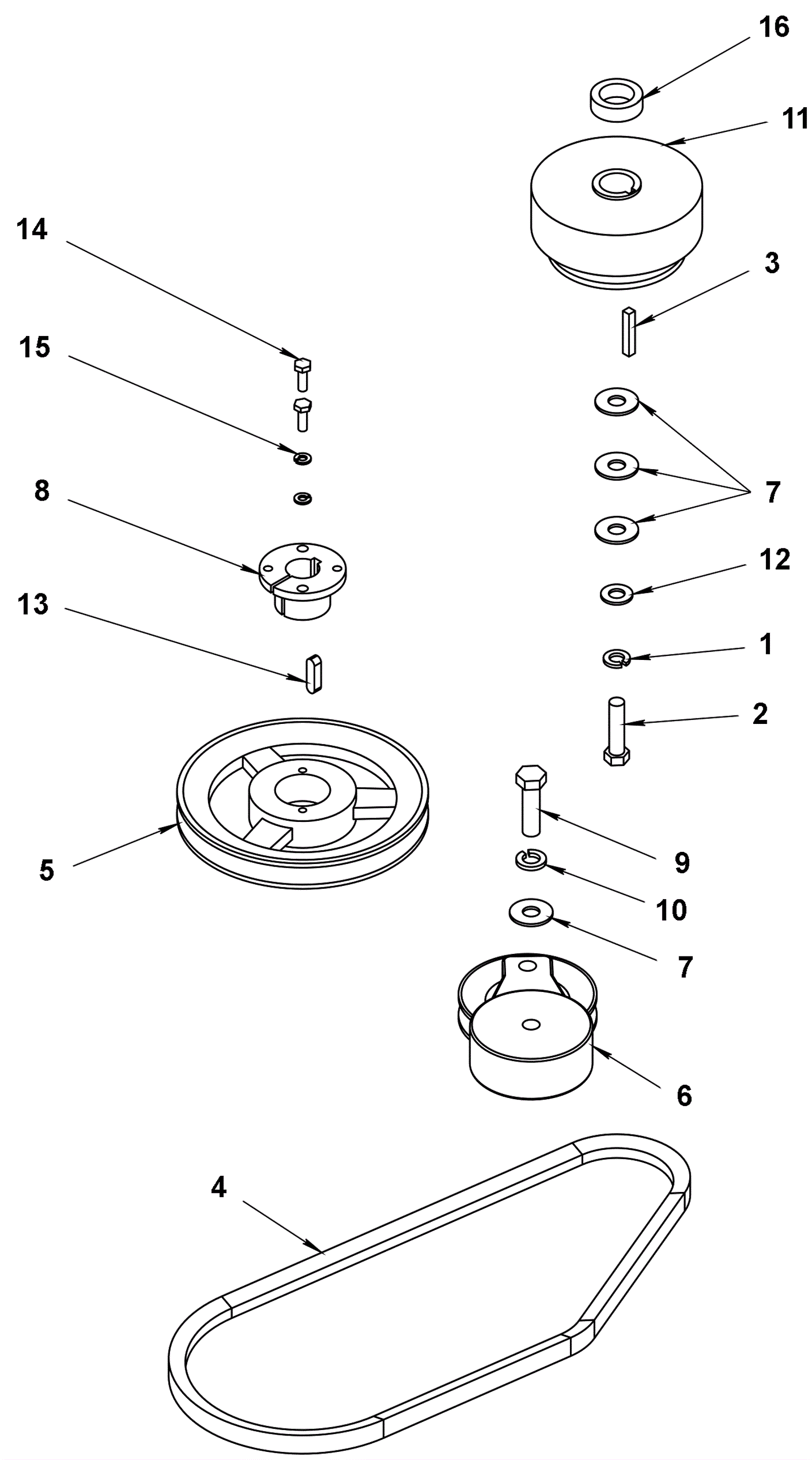

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
204-0070
|
Washer lock |
1 |
|
|
2 |
189-2203
|
Bolt |
1 |
|
|
3 |
189-8755
|
Square keyway |
1 |
|
|
4 |
991-0024
|
B44 belt |
1 |
|
|
5 |
189-7682
|
Pulley bushing |
1 |
|
|
6 |
189-7683
|
Rotary tensioner |
1 |
|
|
7 |
999-0328
|
Washer 7/16 USS flat |
4 |
|
|
8 |
189-8066
|
Bushing |
1 |
|
|
9 |
204-0084
|
Bolt |
1 |
|
|
10 |
204-0080
|
Washer lock |
1 |
|
|
11 |
189-9286
|
Centrifugal clutch |
1 |
|
|
12 |
999-0328
|
Washer 7/16 USS flat |
1 |
|
|
13 |
204-0019
|
Key Stock |
1 |
|
|
14 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
2 |
|
|
15 |
999-1049
|
Washer 1/4 split lock zinc plated |
2 |
|
|
16 |
189-7684
|
Stripper clutch top spacer |
1 |
|
|
