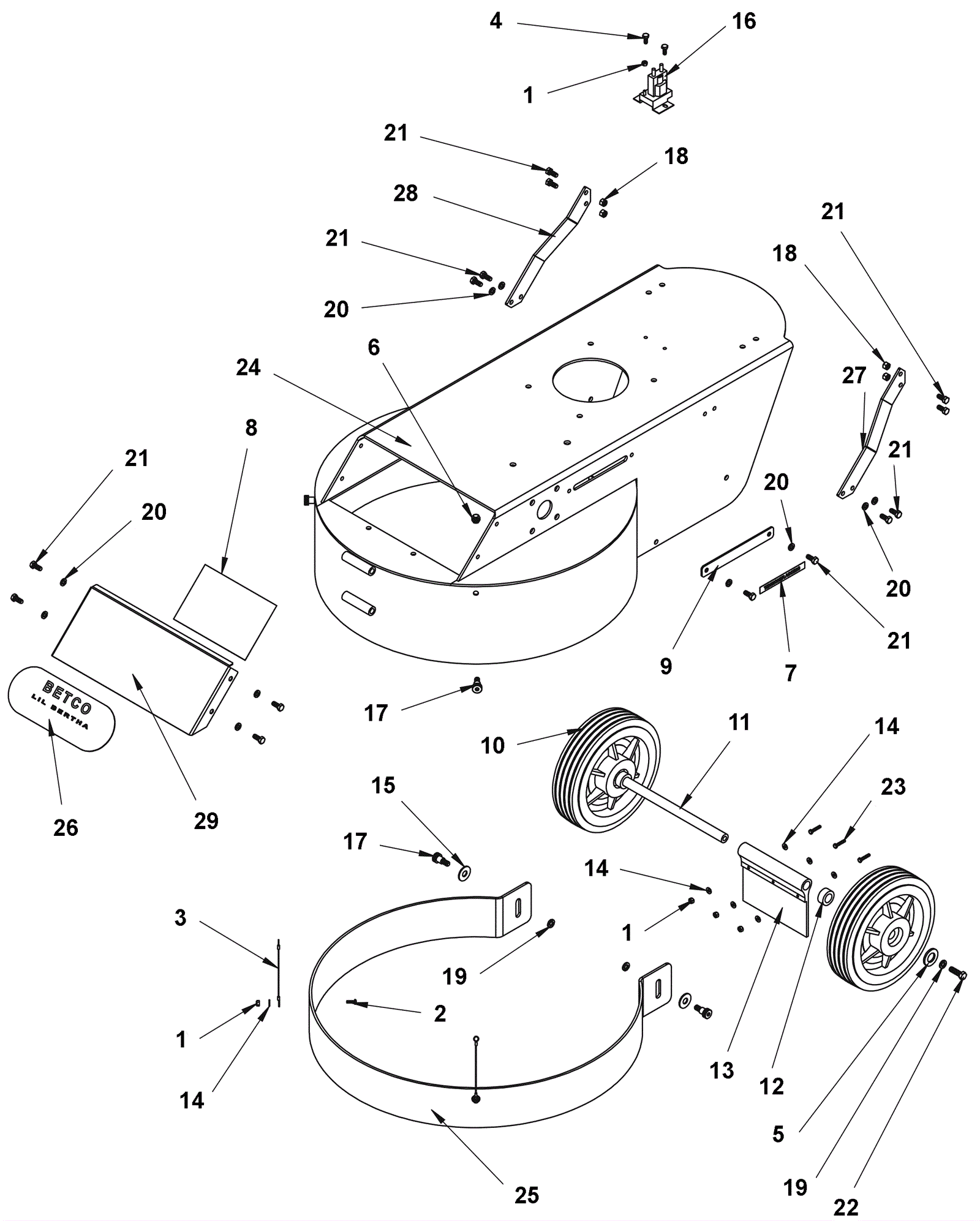

Deck Assembly

#PartDescription ReqNotesAvailability
1 204-0062 Nut 6
2 999-1487 Screw 10-32 x 5/8 pan head phillips stainless steel 2
3 189-9969 Lanyard 2
4 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
5 999-0630 Washer 3/4 SAE flat 2
6 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
7 189-7668 Tensioner access decal 1
8 189-7669 Belt path decal 1
9 189-7670 Access cover 1
10 189-7671 Wheel 2
11 189-7673 Wheel axle 1
12 189-7674 Shaft collar 2
13 189-7675 Rubber splash guard 1
14 189-0382 Washer #10 SAE flat zinc 8
15 999-0328 Washer 7/16 USS flat 2
16 204-0120 12V solenoid 1
17 189-3091 Screw 1/2 x 1/2 shoulder socket head 4
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
19 999-0034 Washer 3/8 split lock plain finish 4
20 999-0028 Washer 5/16 split lock plain finish 10
21 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 14
22 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
23 189-3093 Screw 10-32 x 1 hex head zinc 3
24 189-9970 24 inch extreme strip frame 1
25 189-9971 Splash skirt 1
26 189-9972 Decal 1
27 189-7678 Left hand handle support 1
28 189-7679 Right hand handle support 1
29 189-7681 Front access panel 1
