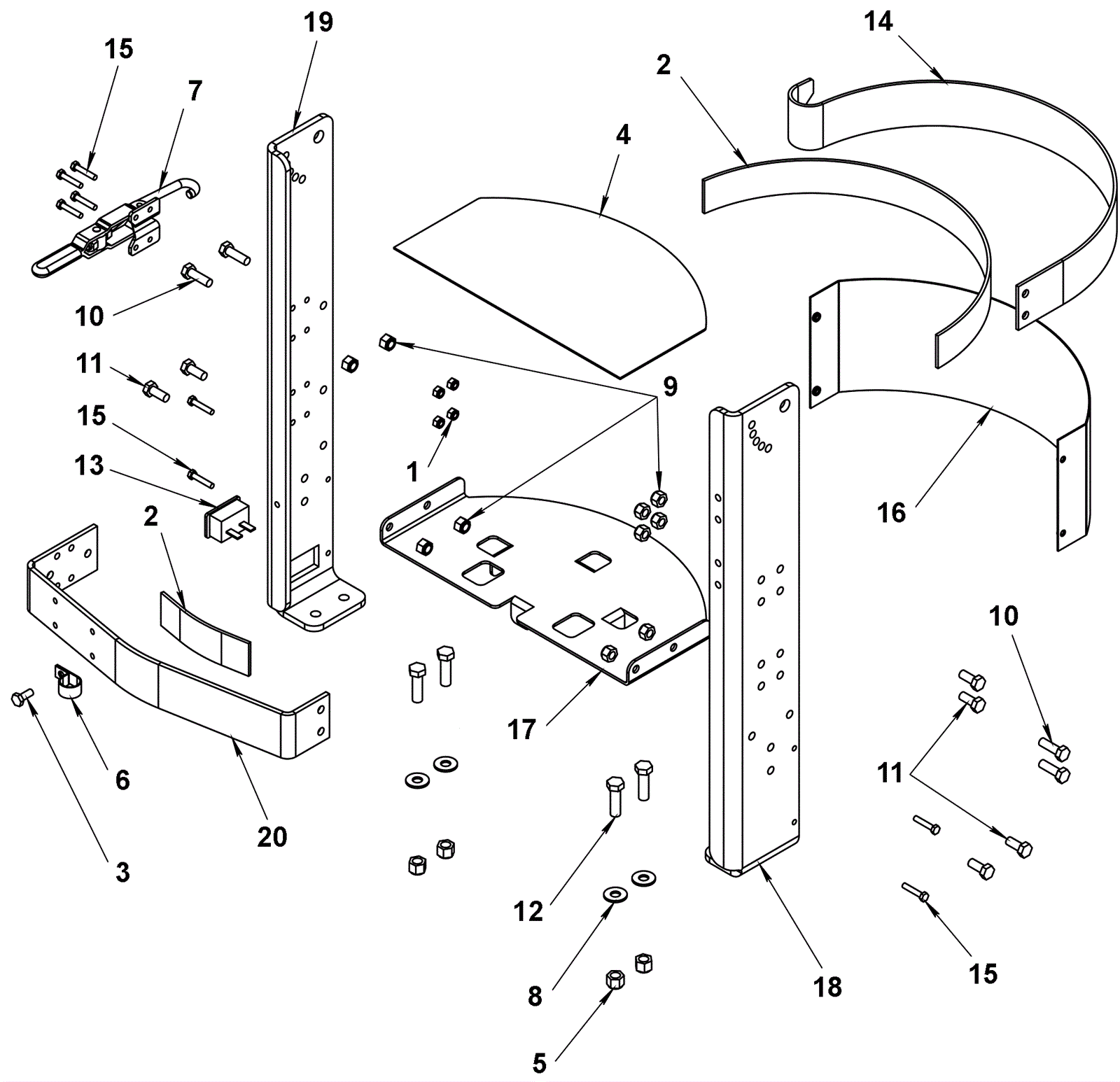

Lower Handle Support Assembly (before SN 6999)

#PartDescription ReqNotesAvailability
1 204-0062 Nut 4
2 189-5162 Felt (sold by the foot) 2
3 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 1
4 204-0122 Tank pad 1
5 999-0188 Nut 3/8-16 nylon insert lock zinc plated 4
6 273-5693 Hose clamp 1
7 189-3085 Tank strap latch 1
8 204-0077 Washer flat 4
9 999-0423 Nut 5/16-18 nylon insert lock stainless steel 10
10 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4
11 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 6
12 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 4
13 189-3086 Hour meter 1
14 189-3084 Tank strap 1
15 189-3093 Screw 10-32 x 1 hex head zinc 8
16 189-0386 Battery cover 1
17 189-3107 Propane tank shelf 1
18 189-0387 Left hand lower handle leg 1
19 189-0388 Right hand lower handle leg 1
20 189-0389 Front propane tank strap 1
