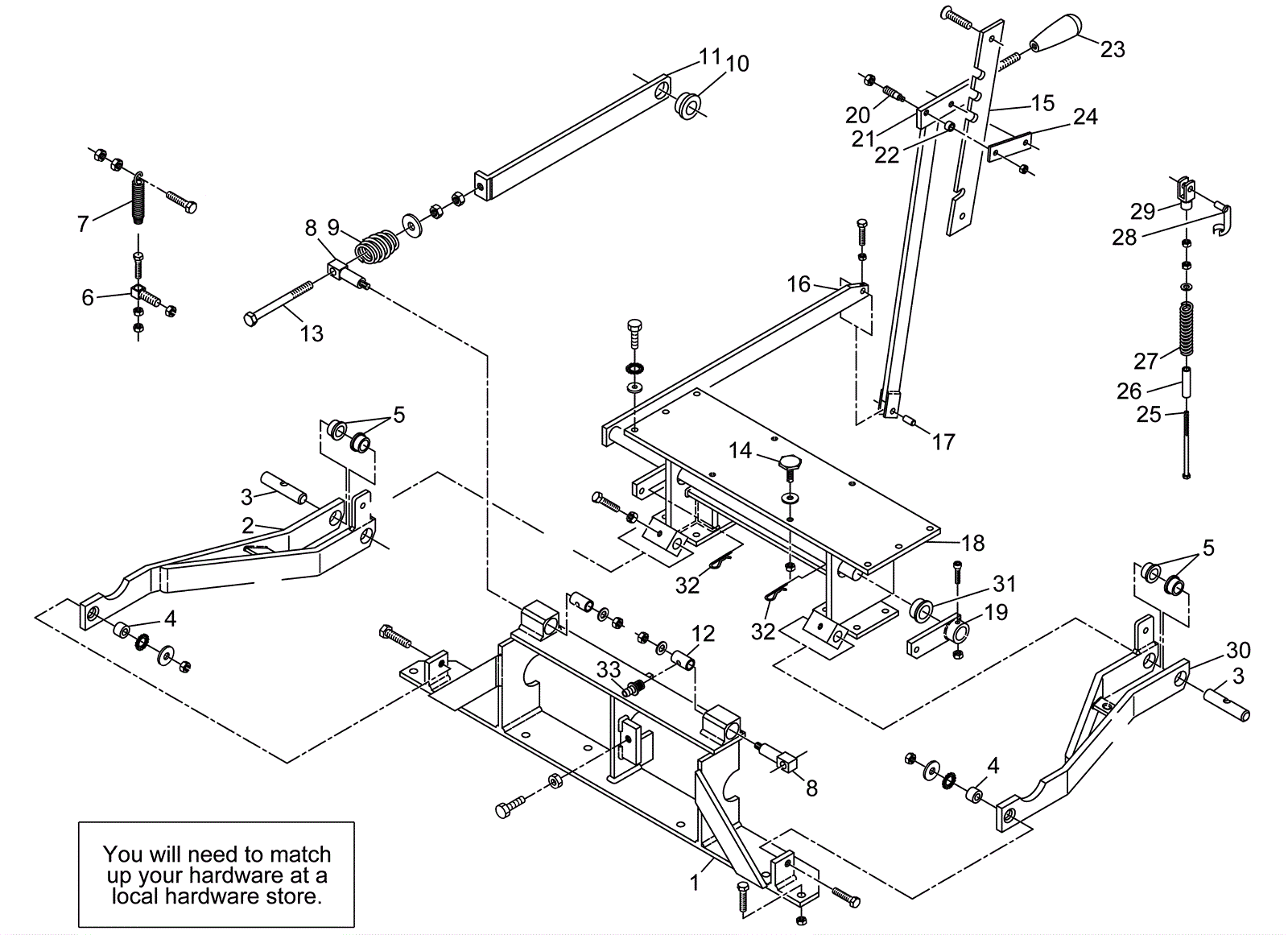

Brush Control and Support Assembly

#PartDescription ReqNotesAvailability
1 189-4751 Plate 1
2 189-9296 Arm 1
3 189-3067 Wire assembly-motor 2
4 220-0375 Bushing (OBSOLETE) 2
5 189-9255 Bushing 4
6 189-4753 Clevis pin 2
7 189-6223 Spring 2
8 189-4754 Hair pin 2
9 189-9256 Tension spring 2
10 189-9239 Bushing 2
11 189-9297 Arm 2
13 189-4756 Screw 2
14 189-9288 Adjuster knob 2
15 189-9249 Notched bar 1
16 189-4757 Handle adjustment gear 1
17 189-4727 Pin 1
18 189-4758 Handle pivot rod 1
19 189-4730 Lever 1
20 189-9163 Pin 2
22 189-9164 Bushing 2
24 189-9165 Handle guide plate 1
25 189-9245 Bolt M8 shoulder 2
26 189-9246 Bushing 2
27 189-9244 Spring 2
28 189-9187 Clamping pin 2
29 189-9191 Threaded fork pin 2
30 189-9295 Arm 1
31 189-4735 115V vacuum motor 2
32 189-4732 28 inch dust containment kit 2
33 189-4759 Bumper 2
