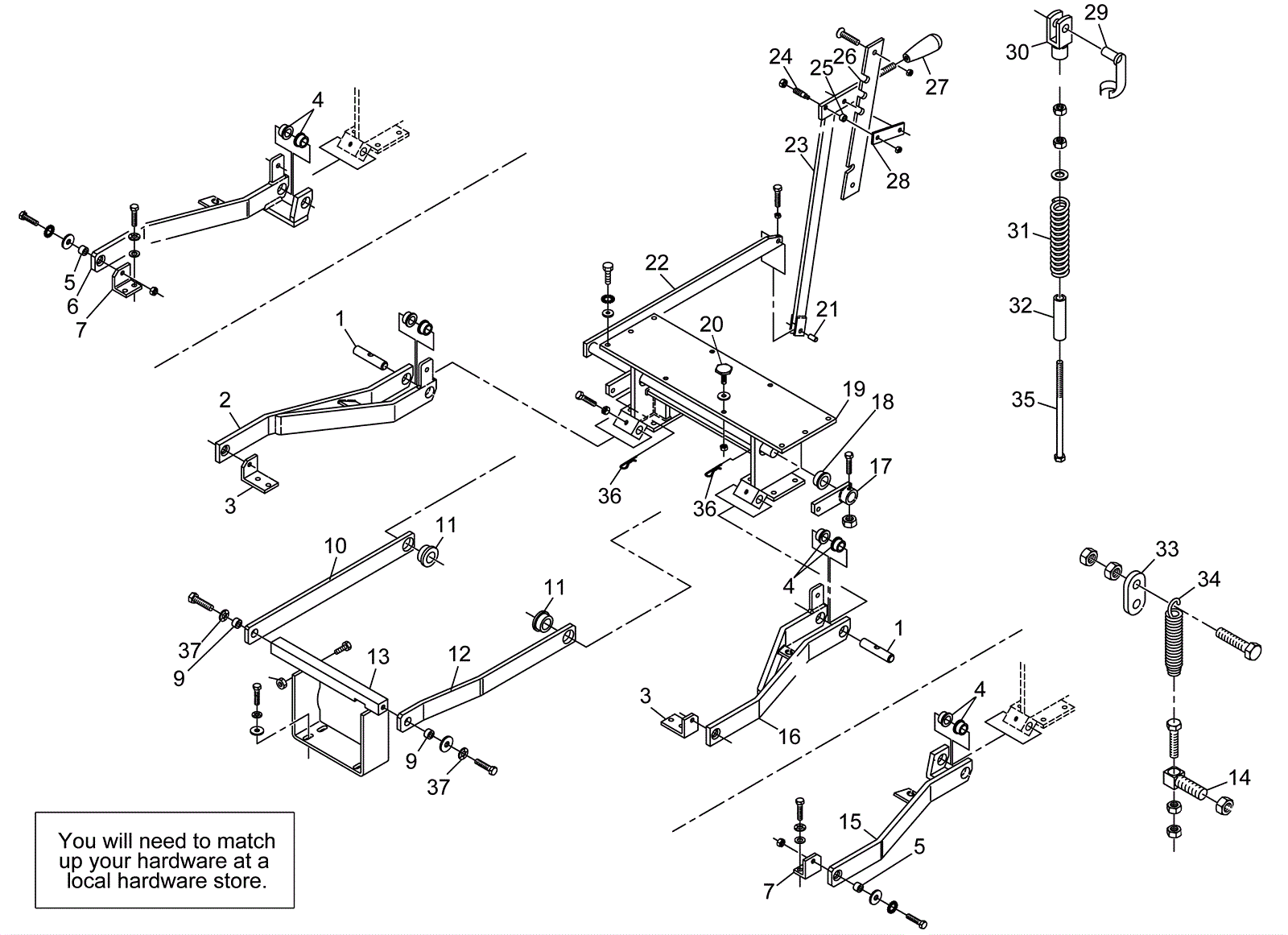

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-9375
|
Pivot |
2 |
|
|
2 |
189-9294
|
Right hand arm |
1 |
|
|
3 |
189-9117
|
Side support |
2 |
|
|
4 |
189-9255
|
Bushing |
4 |
|
|
5 |
220-0375
|
Bushing (OBSOLETE) |
2 |
|
|
6 |
189-9290
|
Right hand lift arm |
1 |
|
|
7 |
189-9435
|
Bracket |
2 |
|
|
9 |
189-9161
|
Bushing |
2 |
|
|
10 |
189-9289
|
Upper arm |
1 |
|
|
11 |
189-9239
|
Bushing |
4 |
|
|
12a |
189-9292
|
Arm lever support |
1 |
|
|
12b |
189-9289
|
Upper arm |
1 |
|
|
13a |
189-9436
|
Support |
1 |
|
|
13b |
189-9439
|
Bracket |
1 |
|
|
14a |
189-9397
|
Tie rod |
1 |
|
|
14b |
189-9398
|
Eye bolt |
2 |
|
|
15 |
189-9291
|
Left hand lower arm |
1 |
|
|
16 |
189-9484
|
Bolt- M4 x 16mm hex head zinc |
1 |
|
|
17 |
189-4730
|
Lever |
2 |
|
|
18 |
189-9320
|
Bushing |
2 |
|
|
19a |
189-9444
|
Support |
1 |
|
|
19b |
189-9434
|
Support |
1 |
|
|
20 |
189-9288
|
Adjuster knob |
2 |
|
|
21 |
189-4727
|
Pin |
1 |
|
|
22a |
189-9406
|
Brush deck lift bar |
1 |
|
|
22b |
189-9409
|
Brush deck lift bar |
1 |
|
|
23 |
189-9364
|
Brush deck lever |
1 |
|
|
24 |
189-9163
|
Pin |
2 |
|
|
25 |
189-9164
|
Bushing |
2 |
|
|
26 |
189-9249
|
Notched bar |
1 |
|
|
27 |
189-9356
|
Knob |
1 |
|
|
28 |
189-9165
|
Handle guide plate |
1 |
|
|
29 |
189-9187
|
Clamping pin |
2 |
|
|
30 |
189-9191
|
Threaded fork pin |
2 |
|
|
31 |
189-9244
|
Spring |
2 |
|
|
32 |
189-9246
|
Bushing |
1 |
|
|
33 |
189-9335
|
Coupling spring |
1 |
|
|
34 |
189-6223
|
Spring |
2 |
|
|
35 |
189-9245
|
Bolt M8 shoulder |
2 |
|
|
36 |
189-9333
|
Cotter hair pin |
2 |
|
|
37 |
189-9343
|
Washer M8 x 18 x 10 cupped |
2 |
|
|
