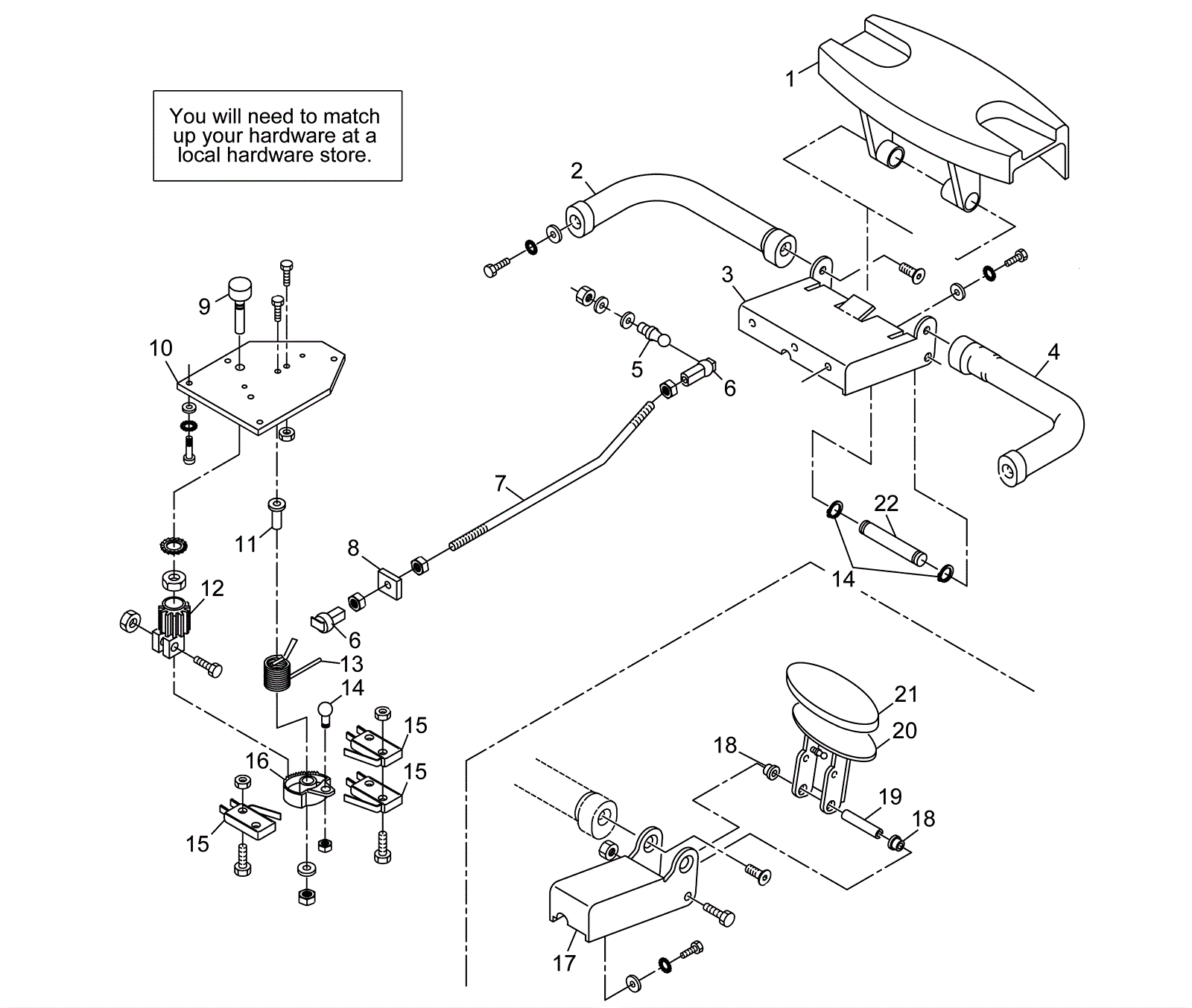

FOREMAN AS 26HD Drive Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-4286 Panel bottom $21.89 1 usually ships 1-5 days
2 189-9223 Right side handle bar $106.29 1 usually ships 1-5 days
3 189-9440 Support $118.38 1 usually ships 14-27 days
4 189-9224 Left side handle bar $81.82 1 usually ships 1-5 days
6 189-6348 Ball stud receiver $5.50 2 usually ships 14-27 days
7 189-9225 Tie rod $7.48 1 usually ships 1-5 days
8 189-9226 Stop $9.65 1 usually ships 1-5 days
9 189-9227 Potentiometer $210.35 1 usually ships 14-27 days
10 189-9384 Plate $50.74 1 usually ships 14-27 days
11 189-6345 10amp circuit breaker $93.91 1 ships same day
12 189-9228 Pinion $9.65 1 usually ships 1-5 days
13 189-9229 Spring $19.33 1 usually ships 1-5 days
14 189-9230 Seeger ring $17.41 2 usually ships 14-27 days
15 189-6349 Microswitch $31.10 2 usually ships 14-27 days
16 189-6346 Cam $7.48 1 usually ships 14-27 days
17 189-9437 Lever support $94.25 1 usually ships 14-27 days
18 189-9231 Bushing $6.95 2 usually ships 1-5 days
19 189-9232 Pin $12.18 1 usually ships 14-27 days
20 189-9233 Lever $101.42 1 usually ships 1-5 days
21 189-9234 Handle bar cover $28.95 1 usually ships 1-5 days
22 189-9235 Pin $42.32 1 usually ships 1-5 days
