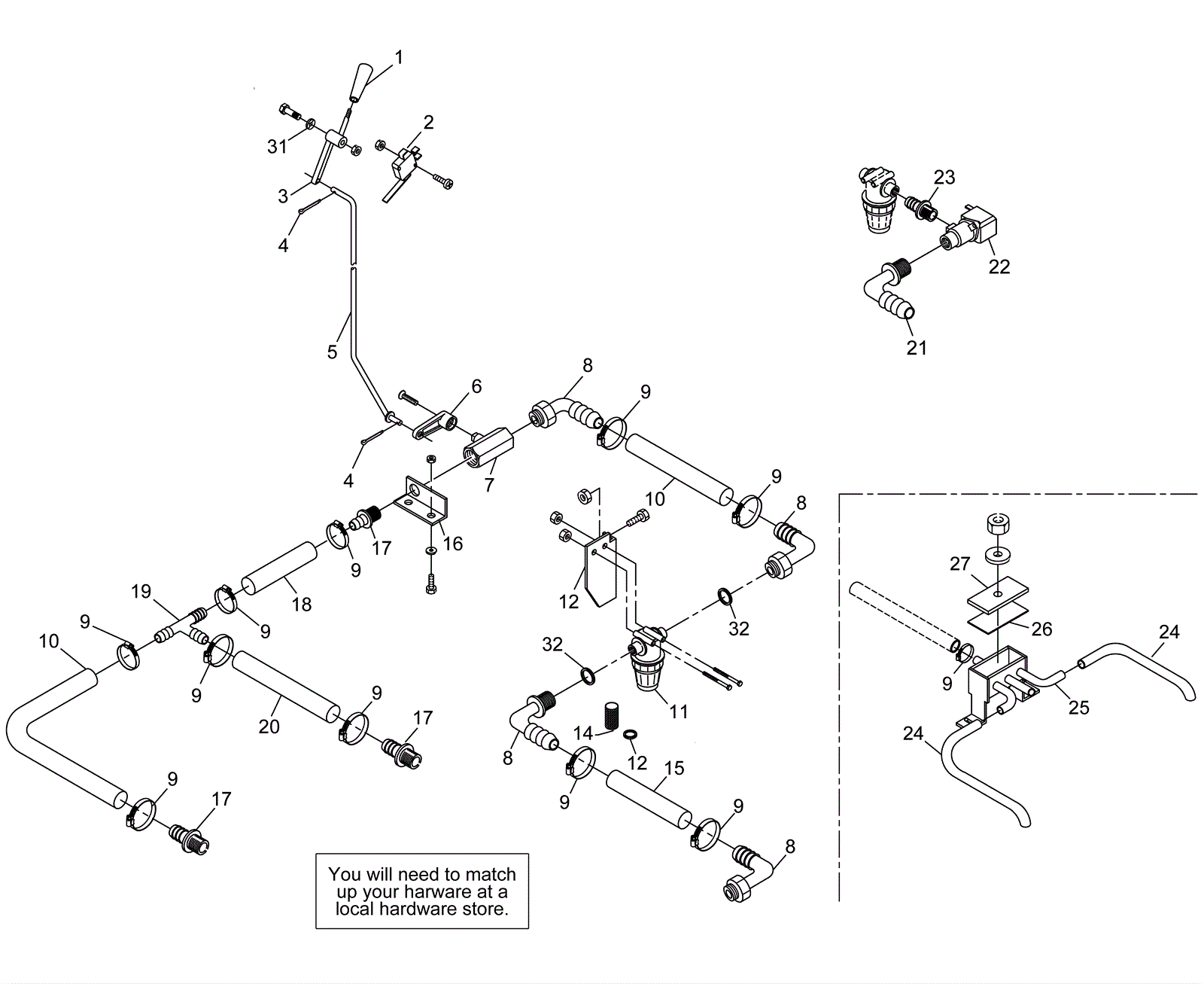

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-9213
|
Solution control knob |
1 |
|
|
2 |
189-7562
|
Micro switch |
1 |
|
|
3 |
189-9369
|
Control rod |
1 |
|
|
4 |
189-9430
|
Split pin |
2 |
|
|
5 |
189-9214
|
Solution control rod |
1 |
|
|
6a |
189-9215
|
Valve lever |
1 |
|
|
6b |
189-9216
|
Ball valve lever |
1 |
|
|
7a |
189-9217
|
Valve |
1 |
|
|
7b |
189-9217
|
Valve |
1 |
|
|
8 |
189-9123
|
Barbed elbow |
4 |
|
|
9 |
189-9332
|
Hose clamp |
10 |
|
|
11 |
189-7543
|
Solution filter and housing assembly |
1 |
|
|
12 |
189-6292
|
Gasket |
1 |
|
|
13 |
189-6292
|
Gasket |
1 |
|
|
14 |
189-9218
|
Solution filter |
1 |
|
|
15a |
189-9453
|
Tube |
1 |
|
|
15b |
N/A
|
Not available |
1 |
|
|
16 |
189-9310
|
Bracket |
1 |
|
|
17 |
189-9219
|
Fitting |
3 |
|
|
18a |
189-9455
|
Tube |
1 |
|
|
18b |
189-9143
|
Tubing |
1 |
|
|
19 |
189-9345
|
Barbed tee fitting |
1 |
|
|
20 |
189-9456
|
Spiral hose |
2 |
|
|
21 |
189-5178
|
3/8 inch barbed elbow |
1 |
|
|
22 |
189-7561
|
36V solution solenoid valve |
1 |
|
|
23 |
189-9220
|
Fitting |
1 |
|
|
24 |
189-9457
|
Tubing |
2 |
|
|
25 |
189-9460
|
Tank |
1 |
|
|
26 |
189-9350
|
Gasket |
1 |
|
|
27 |
189-9338
|
Cover |
1 |
|
|
31 |
189-9343
|
Washer M8 x 18 x 10 cupped |
1 |
|
|
32 |
189-9221
|
O-ring |
2 |
|
|
