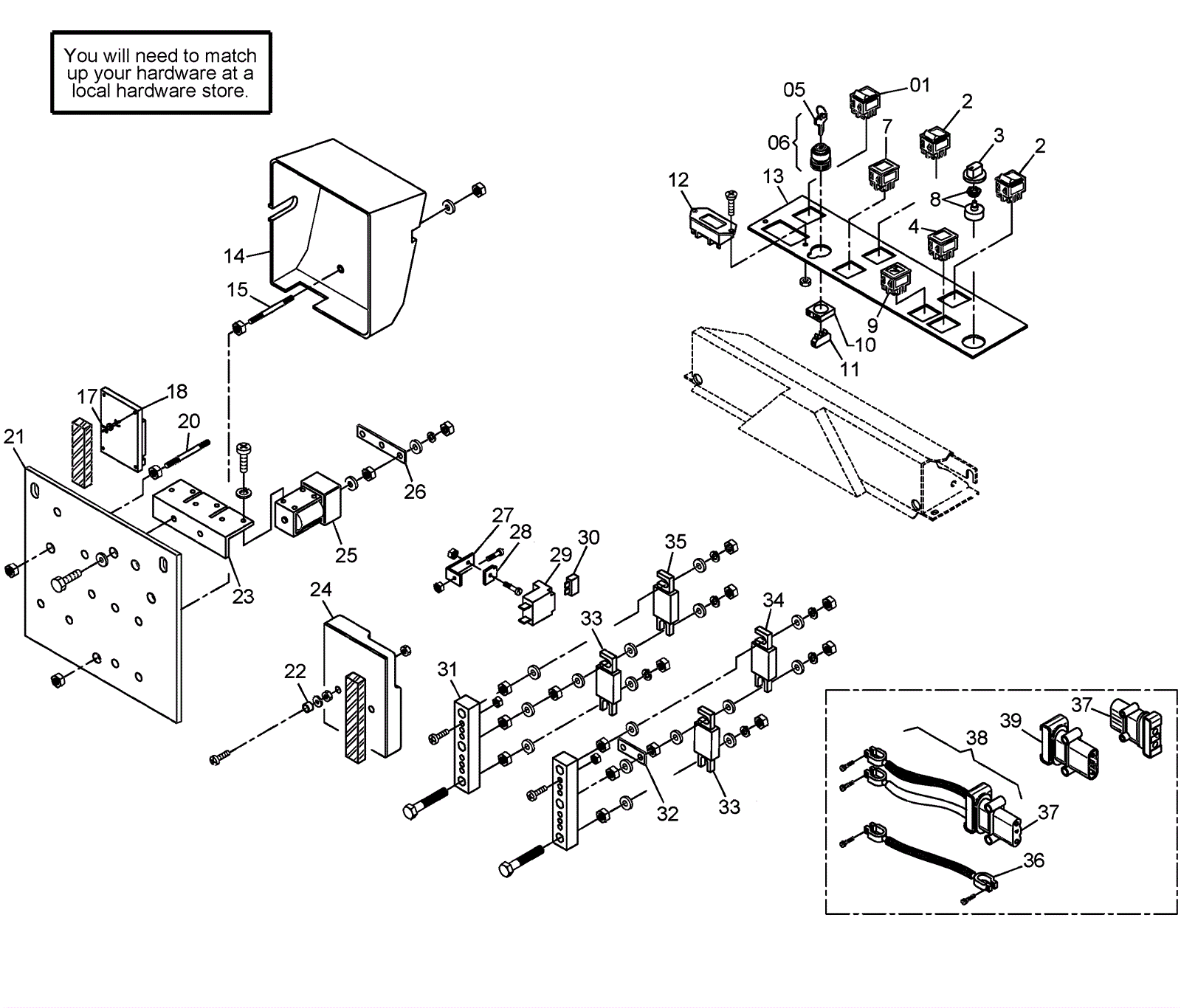

FOREMAN AS 26HD Electrical Components Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-9196 Rocker switch $31.10 1 usually ships 14-27 days
2 189-9197 Switch $43.51 2 usually ships 14-27 days
3 189-9198 Knob $5.50 1 usually ships 14-27 days
4 189-9199 Indicator light $28.00 1 usually ships 1-5 days
5 189-2658 Key $16.81 1 ships same day
6 189-7549 Key switch $77.25 1 usually ships 14-27 days
7 189-9391 Signal lamp (red) $28.00 1 usually ships 14-27 days
8 189-9200 Commutator $28.00 1 usually ships 14-27 days
9 189-9201 Battery level display $86.71 1 usually ships 14-27 days
10 189-6343 Switch flange $7.48 1 usually ships 14-27 days
11 189-6342 Key switch contact $37.21 1 usually ships 14-27 days
12 250-1567 Hour meter $234.14 1 usually ships 1-5 days
13 189-9357 Label $135.30 1 usually ships 14-27 days
14 189-9203 Cover $137.69 1 usually ships 1-5 days
15 189-9141 Stud bolt $17.41 1 usually ships 1-5 days
17 189-9204 Coupler $6.95 2 usually ships 1-5 days
18 189-9205 Battery indicator card $187.35 1 usually ships 14-27 days
20 189-9206 Bolt M6 x 115mm stud $17.41 2 usually ships 1-5 days
21 189-9372 Electrical panel $135.52 1 usually ships 14-27 days
22 189-9325 Bushing $7.02 2 usually ships 14-27 days
23 189-9312 Remote switch bracket $48.37 1 usually ships 14-27 days
24 N/A Not available Call for price 1 (hopper card) usually ships 3-26 days
25 283-1501 REMOTE CONTROL SWITCH $360.99 3 usually ships 26-37 days
26 189-9314 Bridge $16.92 1 usually ships 14-27 days
27 189-9438 Support $16.92 1 usually ships 14-27 days
28 189-9448 Mounting plate $6.95 1 usually ships 14-27 days
29 189-9208 Fuse holder $16.08 1 usually ships 1-5 days
30 189-9209 3amp fuse $8.93 1 usually ships 1-5 days
31 189-9348 Fuse holder $33.85 2 usually ships 14-27 days
32 189-9315 Buss bar $20.30 1 usually ships 14-27 days
33 189-2555 Fuse $60.39 2 usually ships 14-27 days
34 189-9210 35amp fuse $60.39 1 usually ships 1-5 days
35 189-9211 160amp fuse $68.55 1 usually ships 1-5 days
36 189-9212 Battery jumper cable $152.98 1 usually ships 1-5 days
37 189-2654 Female connector $123.95 1 usually ships 1-5 days
38 189-9327 Cable assembly $113.36 1 usually ships 14-27 days
39 189-2653 Male connector $69.14 1 usually ships 1-5 days
