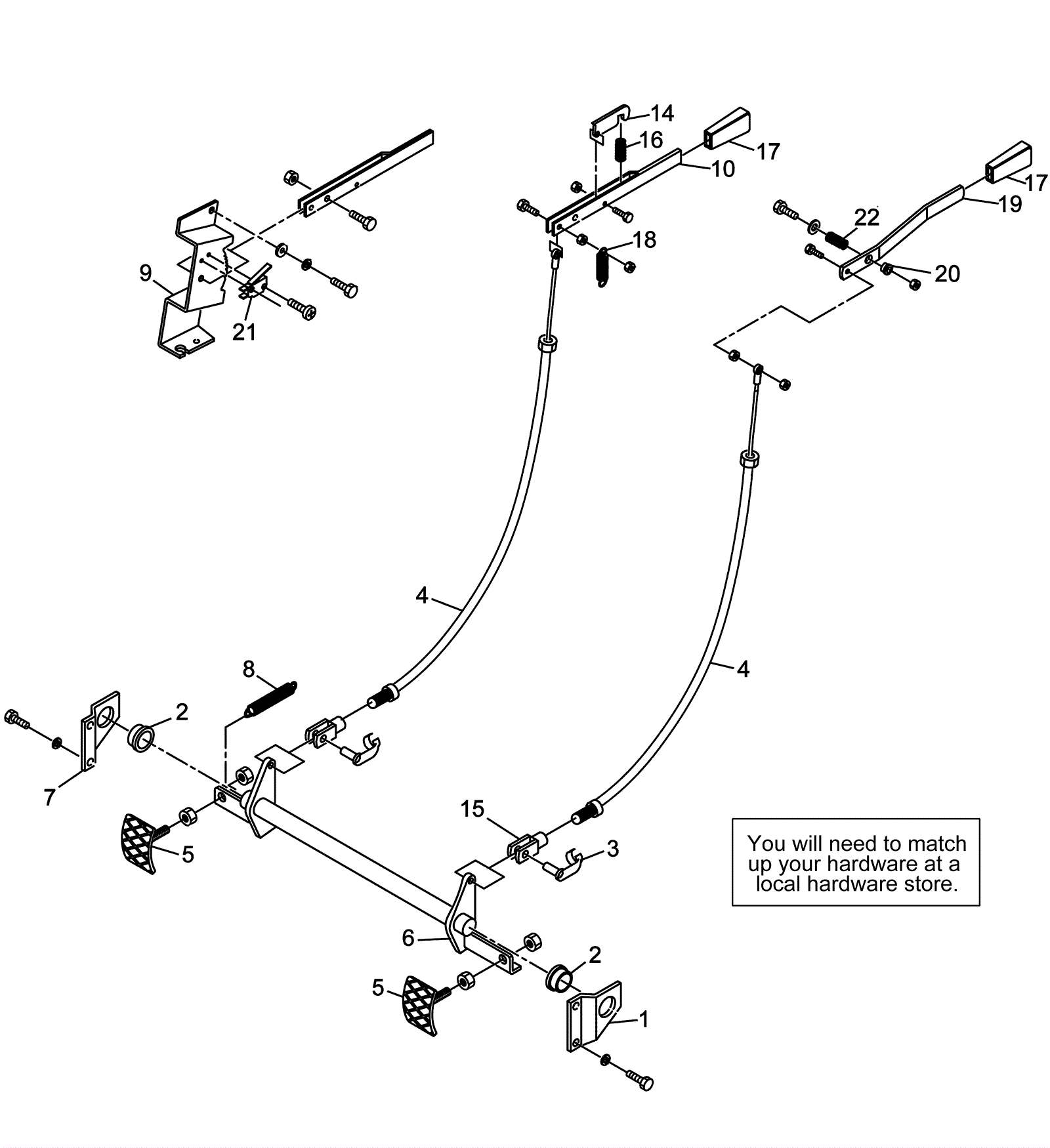

FOREMAN AS 26HD Brake Assembly

#PartDescriptionPriceReqNotesAvailability
1a 189-9362 Left hand support $43.53 1 usually ships 14-27 days
1b 189-9361 Left hand support $41.12 1 usually ships 14-27 days
2 189-9185 Bushing $19.33 2 usually ships 1-5 days
3a 189-9186 Clevis pin $17.41 2 usually ships 1-5 days
3b 189-9187 Clamping pin $7.32 2 usually ships 1-5 days
4 189-9313 Cable $84.92 2 usually ships 14-27 days
5 189-9371 Brake pad $34.18 2 usually ships 14-27 days
6a 189-9408 Brake shaft $181.20 1 usually ships 14-27 days
6b 189-9421 Brake shaft $198.08 1 usually ships 14-27 days
7a 189-9449 Right support $43.53 1 usually ships 14-27 days
7b 189-9450 Right support $41.12 1 usually ships 14-27 days
8 189-6223 Spring $11.17 1 usually ships 14-27 days
9 189-9188 Lever bracket $60.39 1 usually ships 1-5 days
10 189-9368 Brake lever $38.61 1 usually ships 14-27 days
14 189-9189 Latch $12.18 1 usually ships 1-5 days
15a 189-9190 Fork pin $36.38 2 usually ships 1-5 days
15b 189-9191 Threaded fork pin $15.27 2 usually ships 1-5 days
16 189-9192 Compression spring $7.32 1 usually ships 1-5 days
17 189-9193 Knob $17.41 2 usually ships 1-5 days
18 189-7540 Spring $5.50 1 ships same day
19 189-9367 Brake lever $21.76 1 usually ships 14-27 days
20 189-9194 Bushing $6.95 1 usually ships 1-5 days
21 189-7562 Micro switch $28.00 1 usually ships 1-5 days
22 250-1086 Spring $7.48 1 usually ships 1-5 days
