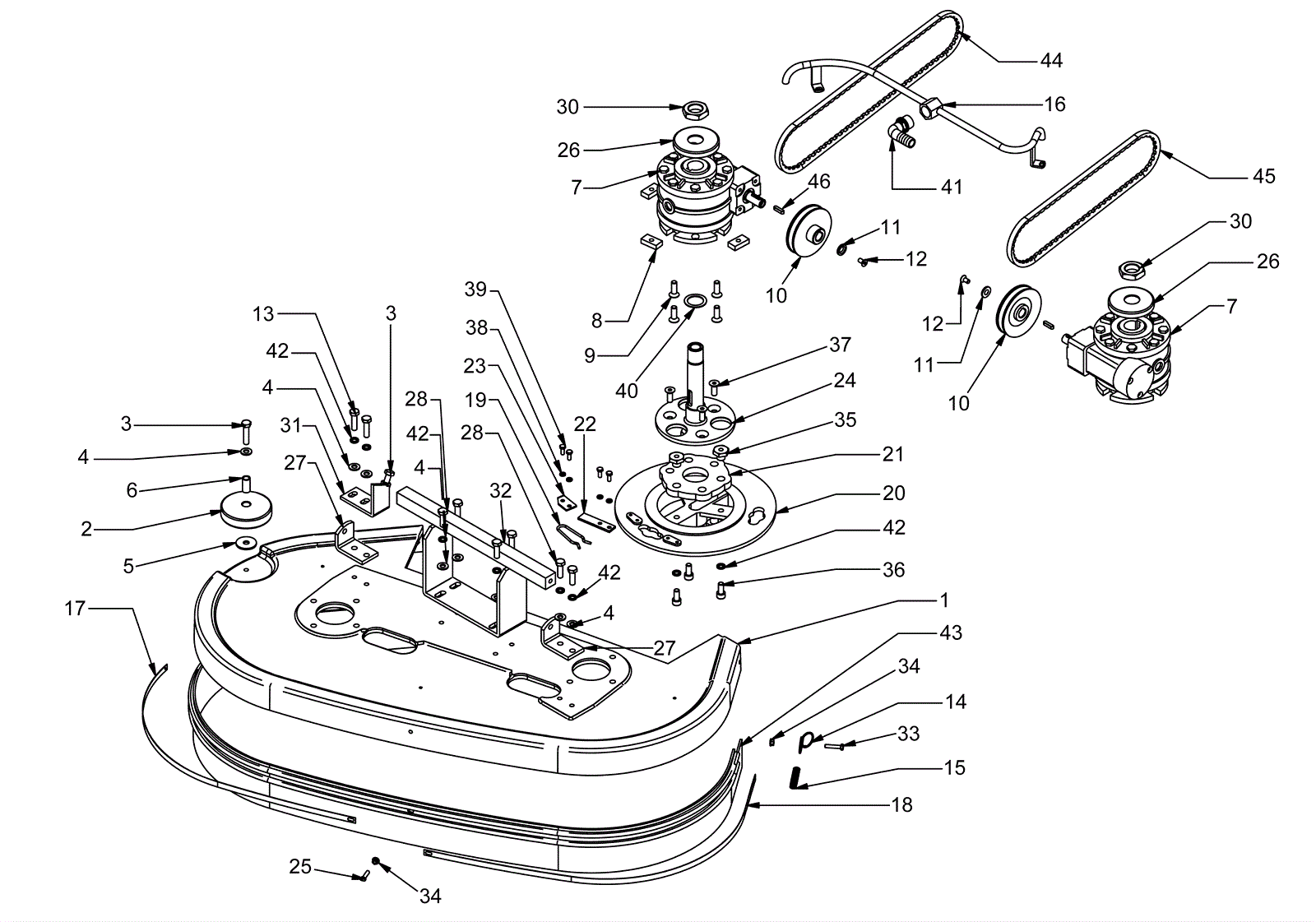

Brush Assembly

#PartDescription ReqNotesAvailability
1 189-9317 Brush deck frame 1
2 189-2542 Wheel 1
3 189-9112 Screw M8 x 35mm 2
4 999-1267 Washer M8 flat zinc 9
5 250-1320 Washer 1
6 189-2543 Bushing 1
7 189-9110 Reduction gear 2
8 189-9385 Nut M8 8
9 999-1588 Screw M8-1.25 x 25mm flat head socket zinc 8
10 189-9388 Pulley 2
11 999-1261 Washer M6 flat stainless steel 2
12 189-9405 Screw M6 x 12mm 2
14 189-7539 Ring 2
15 189-7540 Spring 2
16 189-9461 Water manifold 1
17 189-9113 Left splash guard strap 1
18 189-9114 Right splash guard strap 1
20 189-9316 Plate brush 2
21 189-4345 3/8 x 1/4 Red nipple 2
22 189-9433 Brush stop 2
23 189-9383 Spring retainer 2
24 N/A Not available 2 (shaft)
25 189-9031 Screw M5 x 20mm stainless steel 1
26 189-9386 Washer 2
27 189-9117 Side support 2
28 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 6
29 189-9355 Key 2
30 189-9118 Nut 2
31 189-9445 Bracket 1
32 189-9439 Bracket 1
33 189-9119 Bolt M5 x 25mm hex head stainless steel 2
34 999-0740 Nut M5-.8 hex stainless steel 6
36 189-9109 Screw 6
37 189-9121 Screw M8 x 22mm 6
38 189-9122 Lock washer 8
40 189-9458 Washer M25.5 flat 2
41 189-9123 Barbed elbow 1
42 189-9124 Washer M8 lock zinc 14
43 189-9125 Brush deck splash guard 1
44 189-9126 V-belt 1
45 189-9127 Belt 1
