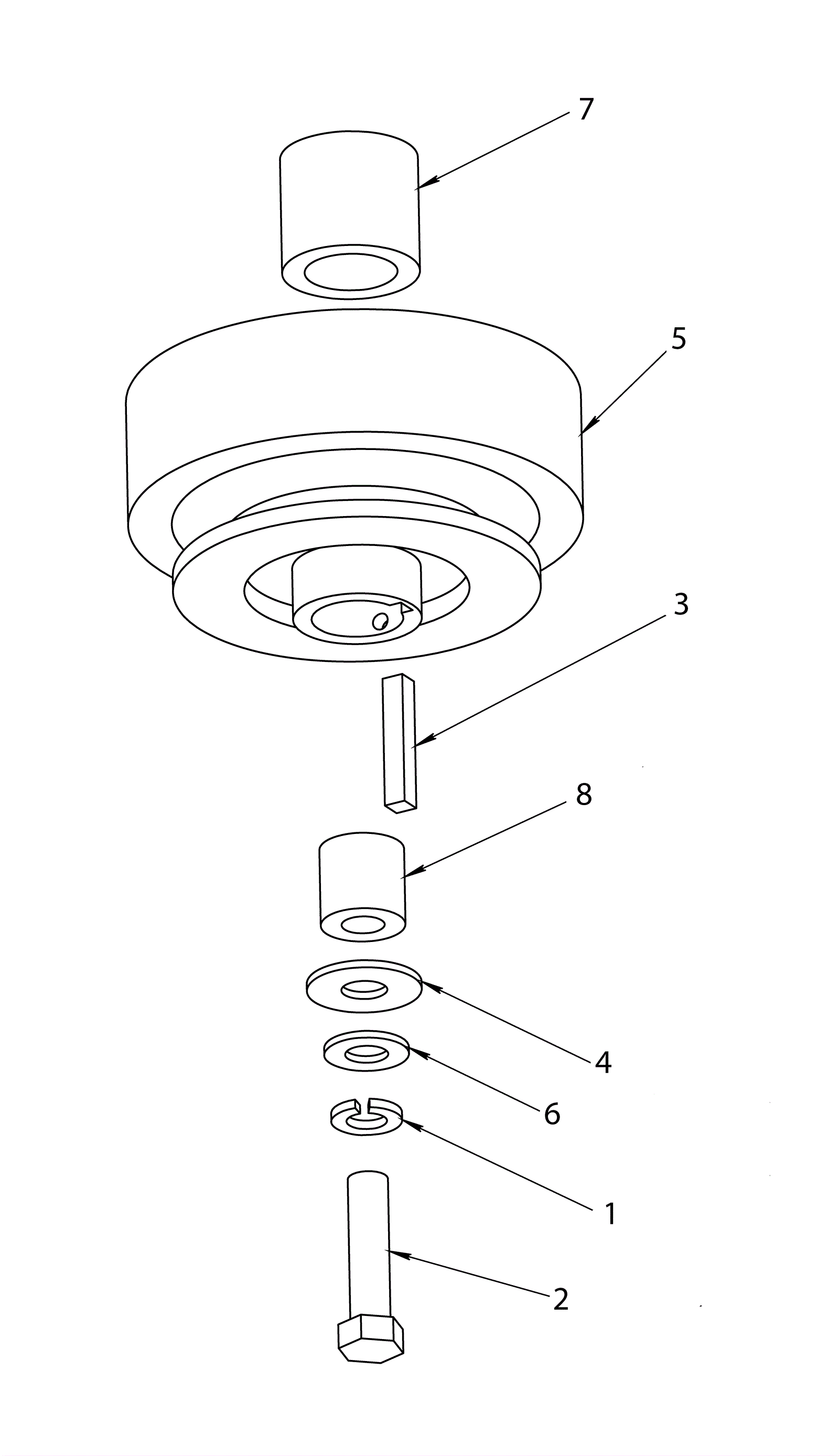

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0044
|
Washer 7/16 medium split lock |
1 |
|
|
2 |
189-8553
|
Bolt 7/16-20 x 1 3/4 hex head |
1 |
|
|
3 |
189-8554
|
Key 1/4 x 1/4 |
1 |
(instll key after pushing clutch onto the engine drive shft and aligning keyways) |
|
4 |
999-0328
|
Washer 7/16 USS flat |
1 |
(tighten onto the lip of the clutch) |
|
5 |
189-8555
|
Centrifugal clutch |
1 |
(remove and discard set screws from clutch before installing) |
|
6 |
999-0328
|
Washer 7/16 USS flat |
1 |
|
|
7 |
189-0799
|
Clutch top spacer |
1 |
(installed to align the belt drive section of the clutch to the pad driver pulley belt drive section) |
|
8 |
189-0800
|
Clutch bottom spacer |
1 |
(should be just inside the lip of the drive shaft hole) |
|
