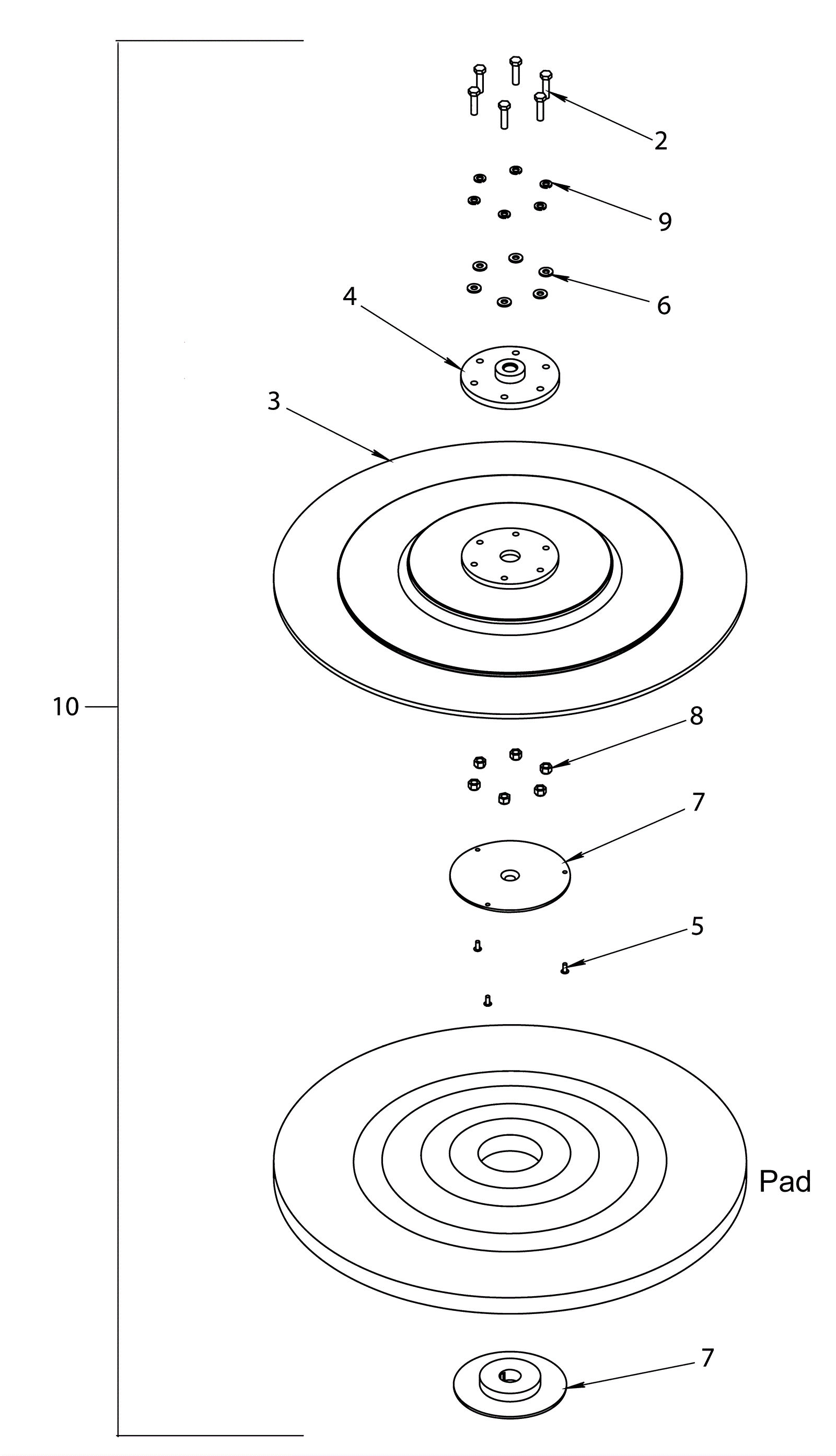

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
999-0829
|
Screw 5/16-18 x 1 1/4 hex head plain finish |
6 |
|
|
3a |
189-8997
|
Pad driver flex 21 inch |
1 |
|
|
3b |
189-8110
|
Pad driver flex 24 inch |
1 |
|
|
3c |
189-9017
|
Pad driver flex 27 inch |
1 |
|
|
4 |
189-9011
|
Shaft plate 3/4 inch |
1 |
|
|
5 |
189-0798
|
Blind rivet |
3 |
. |
|
6 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
|
7 |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
2 |
|
|
8 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
9 |
999-0028
|
Washer 5/16 split lock plain finish |
6 |
|
|
10a |
189-8073
|
21 inch pad driver assembly flex without pad |
1 |
|
|
10b |
204-0026
|
Pad Driver (OBSOLETE) |
1 |
|
|
10c |
189-8297
|
27 inch pad driver assembly flex |
1 |
|
|
