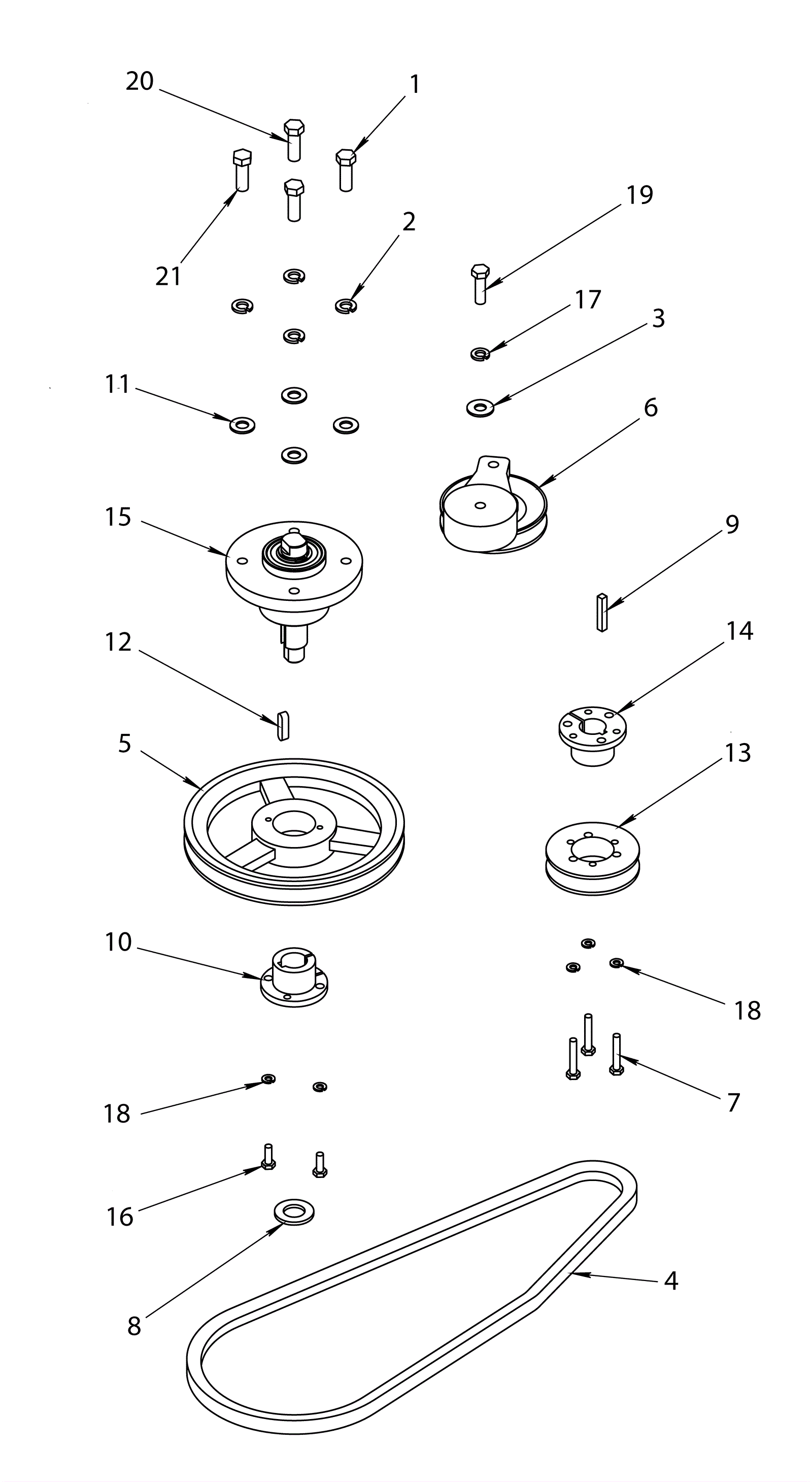

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0397
|
Bolt 7/16-14 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
|
2 |
999-0044
|
Washer 7/16 medium split lock |
4 |
|
|
3 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
4a |
991-0036
|
BX41 Belt |
1 |
(used with 21 inch deck)
(for 21 inch deck) |
|
4b |
154-1070
|
BX49 belt |
1 |
(used with 24 inch deck) |
|
4c |
991-0009
|
BX51 belt |
1 |
(used with 28 inch deck) |
|
5a |
189-8071
|
7.5 inch pulley |
1 |
(used with 21 inch deck) |
|
5b |
189-0794
|
Pulley |
1 |
(used with 24 inch deck) |
|
5c |
189-8567
|
10 inch pulley |
1 |
(used with 28 inch deck) |
|
6 |
204-0017
|
Small belt tensioner |
1 |
|
|
7 |
999-0394
|
Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated |
3 |
|
|
8 |
999-0630
|
Washer 3/4 SAE flat |
1 |
|
|
9 |
189-8554
|
Key 1/4 x 1/4 |
1 |
|
|
10 |
189-8066
|
Bushing |
1 |
|
|
11 |
999-0328
|
Washer 7/16 USS flat |
4 |
|
|
12 |
204-0019
|
Key Stock |
1 |
|
|
13 |
189-3088
|
Engine pulley |
1 |
|
|
14 |
189-0795
|
Bushing |
1 |
|
|
15 |
204-0015
|
Pad driver (OBSOLETE) |
1 |
|
|
17 |
999-0034
|
Washer 3/8 split lock plain finish |
1 |
|
|
18 |
999-1049
|
Washer 1/4 split lock zinc plated |
5 |
|
|
19 |
999-0039
|
Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
|
20 |
189-5118
|
Spring washer 1/2 inch |
4 |
(for 24 inch and 28 inch decks, place 4 springs between 999-0328 and aluminum deck at this bolt location) |
|
21 |
189-5118
|
Spring washer 1/2 inch |
4 |
(for 21 inch deck, place 4 springs between 999-0328 and aluminum deck at this bolt location) |
|
