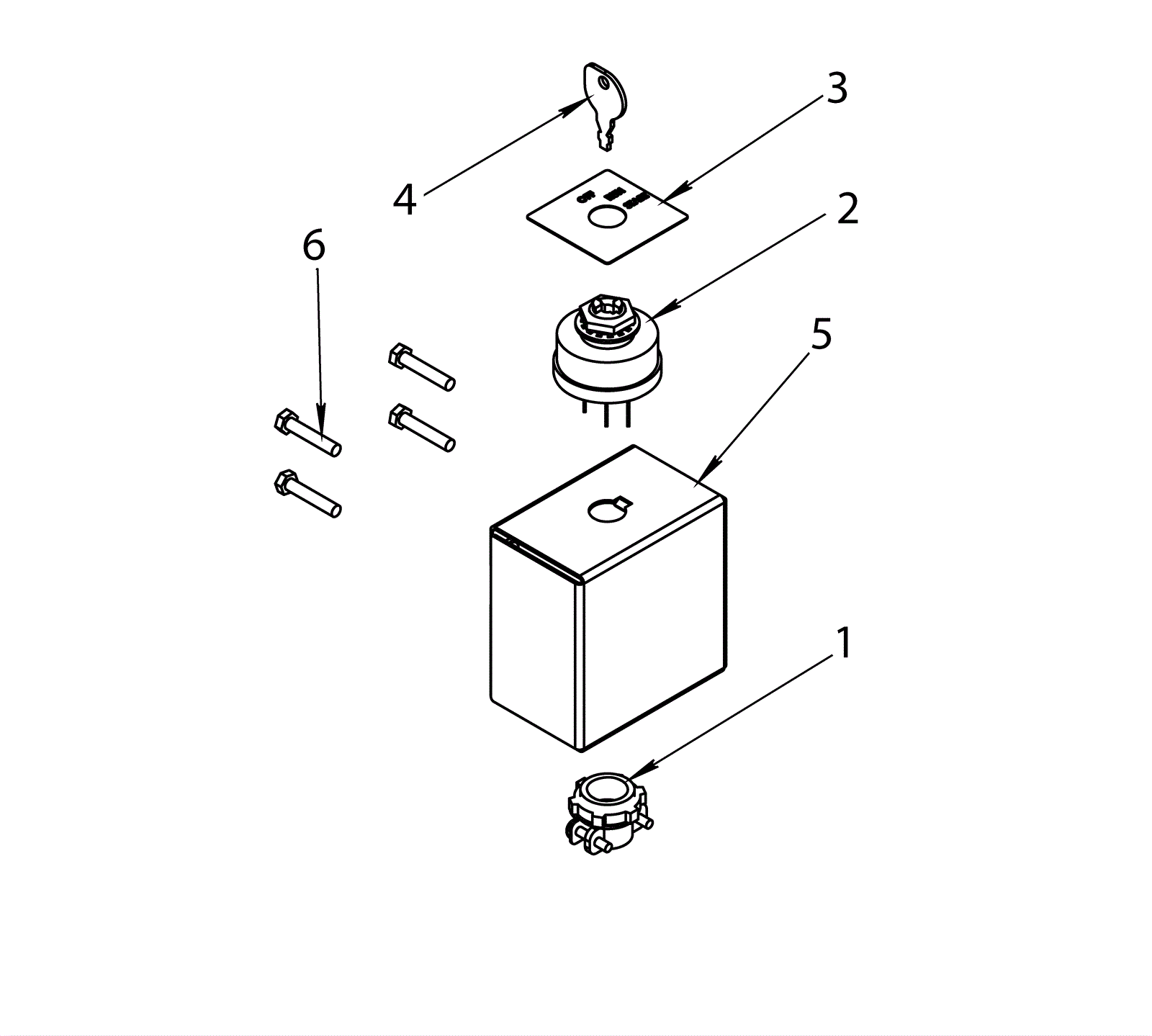

Key Switch Box Assembly
Click to enlarge
#
Part
Description
Req
Notes
Availability
1
189-0397
Wire clamp
1
2
169-0016
Key switch assembly with two keys
1
3
189-0699
Decal
1
4
189-9275
Key (pkg of 2)
1
5
189-0701
Key switch box
1
6
189-3093
Screw 10-32 x 1 hex head zinc
4
