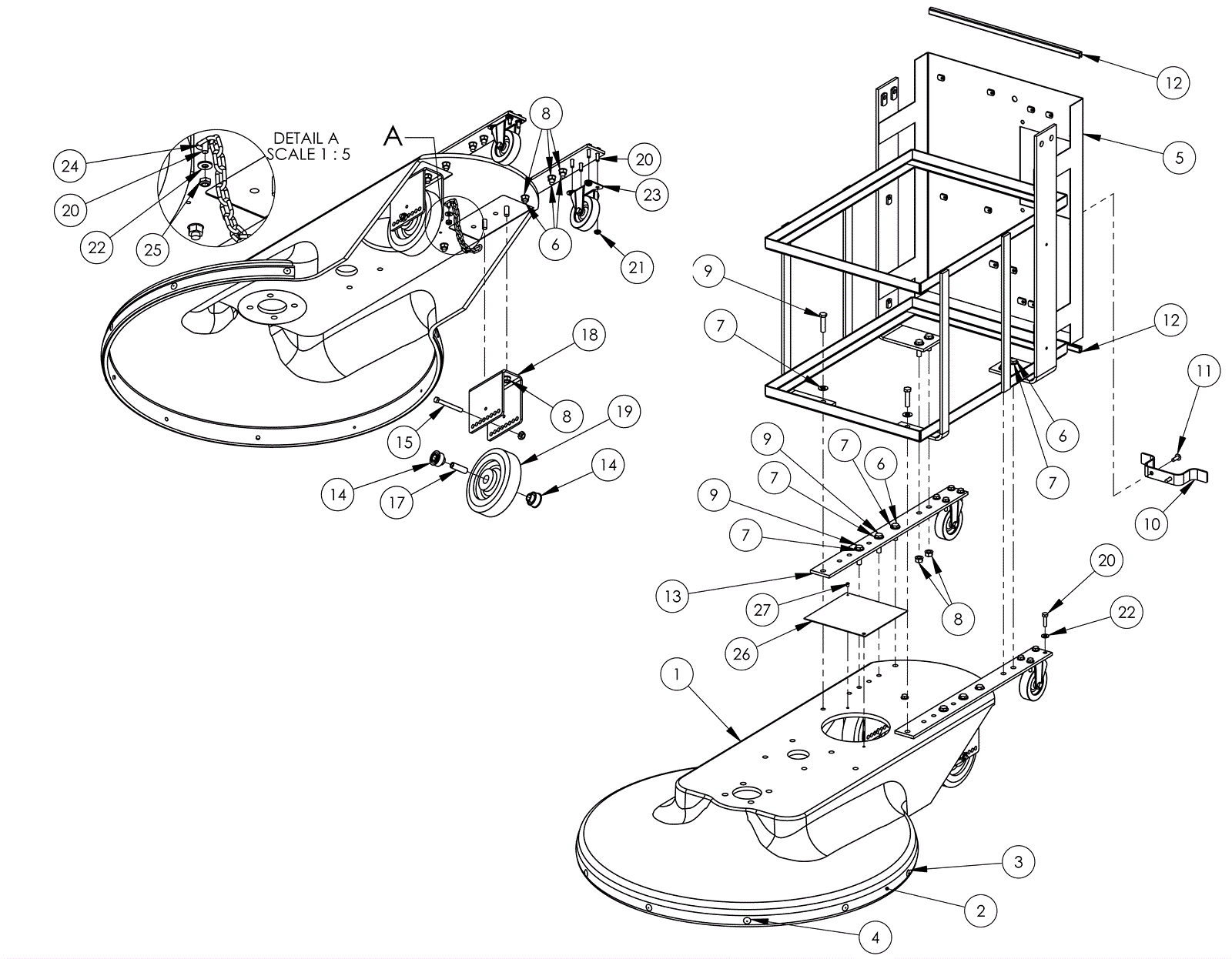

Deck and Frame Assembly

#PartDescription ReqNotesAvailability
001 189-8568 Aluminum deck 27 inch 1
002 189-8231 Bumper guard (red) (sold by the foot) (OBSOLETE) 7ft
003 189-8232 Rivet 7
004 189-8242 3/8 hammer rivet 2
005 189-8570 Full mount for XT27 1 XT3-27
006 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 6
007 999-0617 Washer 3/8 x 1 flat stainless steel 12
008 999-0488 Nut 3/8-16 flange lock serrated zinc plated 12
009 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 6
010 189-8235 Charger cord wrap 1
011 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 2
012 189-8236 Edge trim (sold by the ft) 2
013 189-8571 Handle to base mount for XT27 2 XT3-27
014 189-8998 Sealed ball bearing for wheel 4
015 999-0353 Bolt 5/16-18 x 2 3/4 hex head grade 5 zinc plated 2
016 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
017 N/A Not available 2 Wheel bushing
018 189-8225 Wheel bracket 2
019 189-8019 6 inch wheel 2
020 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 9
021 999-0595 Nut 1/4-20 flange lock serrated zinc plated 8
022 999-0016 Washer 1/4 flat plain finish 10
023 189-8240 3 in gray caster wheel 2
024 189-8241 Chain (sold by the ft) 1
025 999-0595 Nut 1/4-20 flange lock serrated zinc plated 1
026 189-8572 Hole cover plate 1
027 189-8031 Rivet 2
