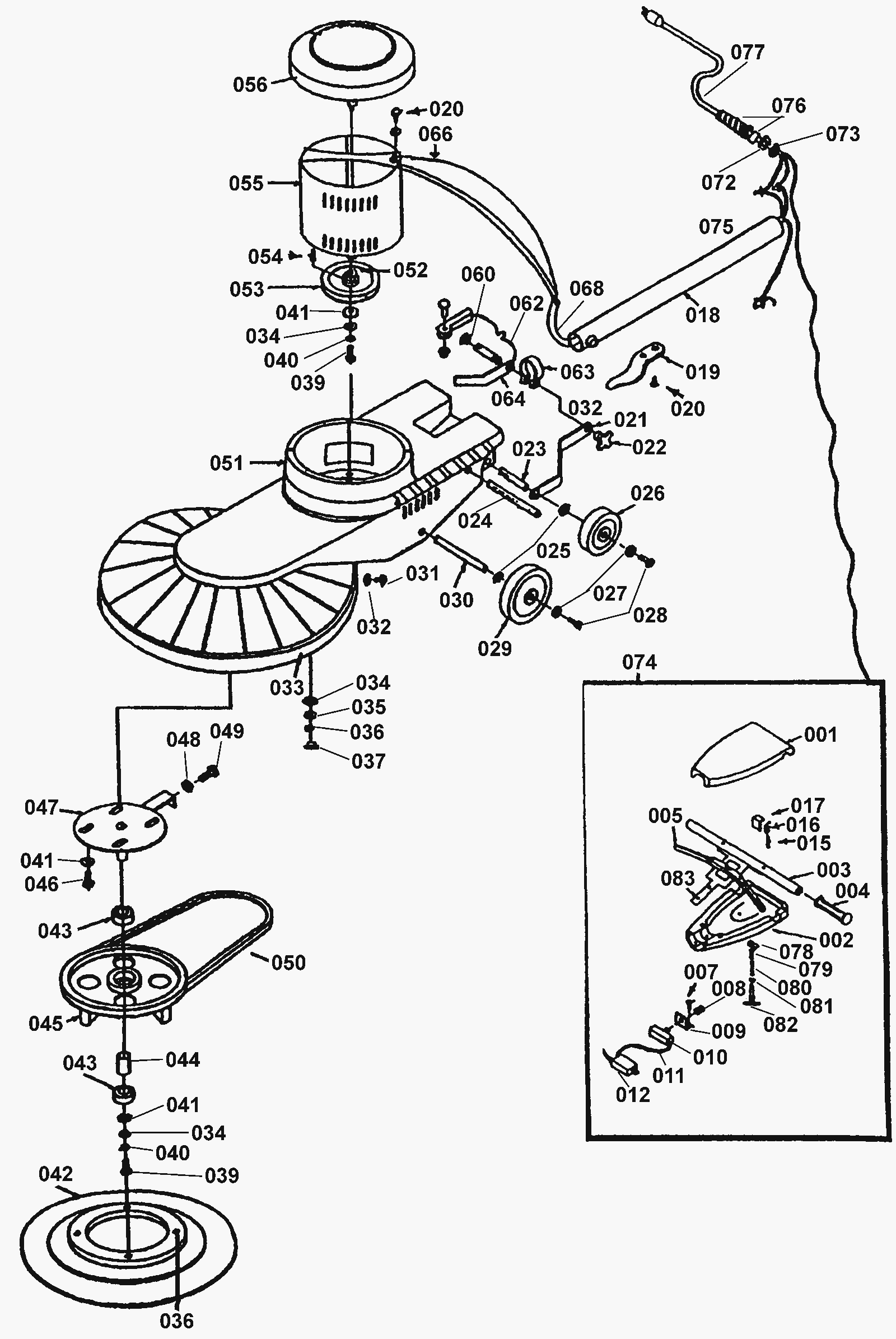

Entire Assembly

#PartDescription ReqNotesAvailability
001 189-2960 Handle cover (front)
002 189-2961 Handle cover (back)
003 189-2963 Cross bar handle
004 189-2965 Handle grip
005 189-2966 Switch lever
007 189-2968 Screw type F 8-32 x 3/8
008 189-2969 Switch spring
009 189-2970 Switch bracket
010 189-2971 25amp switch
011 189-2972 4 in jumper wire
015 189-2973 Dowell pin for switch lever (2)
016 189-2974 Dowell pin spring for switch lever (OBSOLETE)
017 189-2975 Switch lever clip
018a 189-2976 Handle tube with inserts
018b 189-2977 Handle tube (2000) without inserts
019 189-2978 Cord hook
020 189-2979 Screw 10-24 x 1/2 pan head phillips type f
021 189-2980 Left side handle brace
022 189-2981 Knob
023 189-2982 Rear axle
024 189-2983 Pivot shaft (OBSOLETE)
025 189-2984 Spring washer
026 189-2985 4 inch wheel
027 999-0016 Washer 1/4 flat plain finish
028 999-0694 Screw 1/4-20 x 1/2 flat head phillips zinc plated
029 189-2987 5 inch wheel
030 189-2988 Axle (main wheels)
031 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated
032 999-0464 Washer 3/16 flat plain finish
033 189-2990 46 in bumper
034 999-0120 Washer 3/8 SAE flat
035 999-0024 Washer 5/16 flat stainless steel
036 999-0060 Washer 1/4 split lock plain finish
037 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish
038 189-2991 Screw 5/16-18 x 1-1/2 flat phillips
039 189-2992 Bolt 5/16-18 x 3/4 hex cap
040 999-0406 Washer 5/16 internal star lock zinc plated
041 189-2993 Washer 3/8 wrought
042 189-2994 Flexible pad driver
043 189-2995 Bearing
044 189-2996 Bearing spacer (OBSOLETE)
045 189-2997 Main pulley
046 189-2998 Screw 3/8-16 x 3/4 hex end cap
047 189-2999 Shaft and plate weldment
048 999-0069 Nut 5/16-18 hex
049 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated
050a 189-3000 41 in vee belt (1600)
050b 189-3001 42 in belt with type B pulley (2000)
050c 189-3000 41 in vee belt (1600)
051 189-3003 Base housing
052 189-3004 Washer 3/4 uss plated
053a 189-3005 Pulley (2000)
053b 189-3006 Pulley (1600)
054 189-3007 Machine key
055 189-3008 1-1/2 hp 115 v rectified D.C. motor
056 189-3009 Motor cover
060 189-3010 Oval washer
062 190-0008 Handle clamp assembly
063 189-3012 Handle clamp collar
064 189-3013 Right side handle brace
066 189-3014 12 in ground wire
067 189-3015 Capacitor strap
068 189-3016 Interconnect cord
069 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated
070 189-3017 Strap mount
071 999-0077 Nut 8-32 k-lock zinc plated
072 189-3018 Spacer
073 189-3019 Counter nut
075 189-3020 Counter weight (2000)
076a 189-3021 Metal strain relief
076b 189-3022 Brass sleeve strain relief
077 189-3023 75 ft cord
078 189-3024 lock out stop
079 189-3025 Washer SAE 6 (3)
080 189-3026 Lock out spring (OBSOLETE)
081 189-3027 Bushing
082 190-0002 Lock out knob (OBSOLETE)
083 189-3029 Switch bracket
N/S 189-3042 50 amp 60 cycle rectifier
N/S 189-3047 Strain relief washer
N/S 189-3045 Screw and nut
N/S 189-3037 60 MDF capacitor AC motor only
N/S 189-3020 Counter weight (2000)
N/S 189-3039 Carbon brush (sold individually)
N/S 189-3043 Bottom bearing
N/S 189-3038 Capacitor
N/S 189-3030 Screws for switch bracket (2)
N/S 189-3044 Upper motor bearing
N/S 189-3026 Lock out spring (OBSOLETE)
N/S 189-3033 75 ft cord 12/3 with metal relief
N/S 189-2962 Screws for cover
N/S 999-0320 Screw 1/4-20 x 3/4 socket head alloy plain finish
N/S 189-3035 Nut
N/S 189-2964 Screws for bar handle (set of 2)
N/S 189-3041 Wheel spacer
N/S 189-3040 Pad holder center grip
N/S 189-2656 Lock out knob for EB1600
N/S 999-0577 Screw 14 x 1/2 hex washer head sheet metal zinc
N/S 189-3032 75 ft cord 12/3 (2000)
N/S 189-3031 14/3 power cord 75ft. w/ strain relief and counter nut
