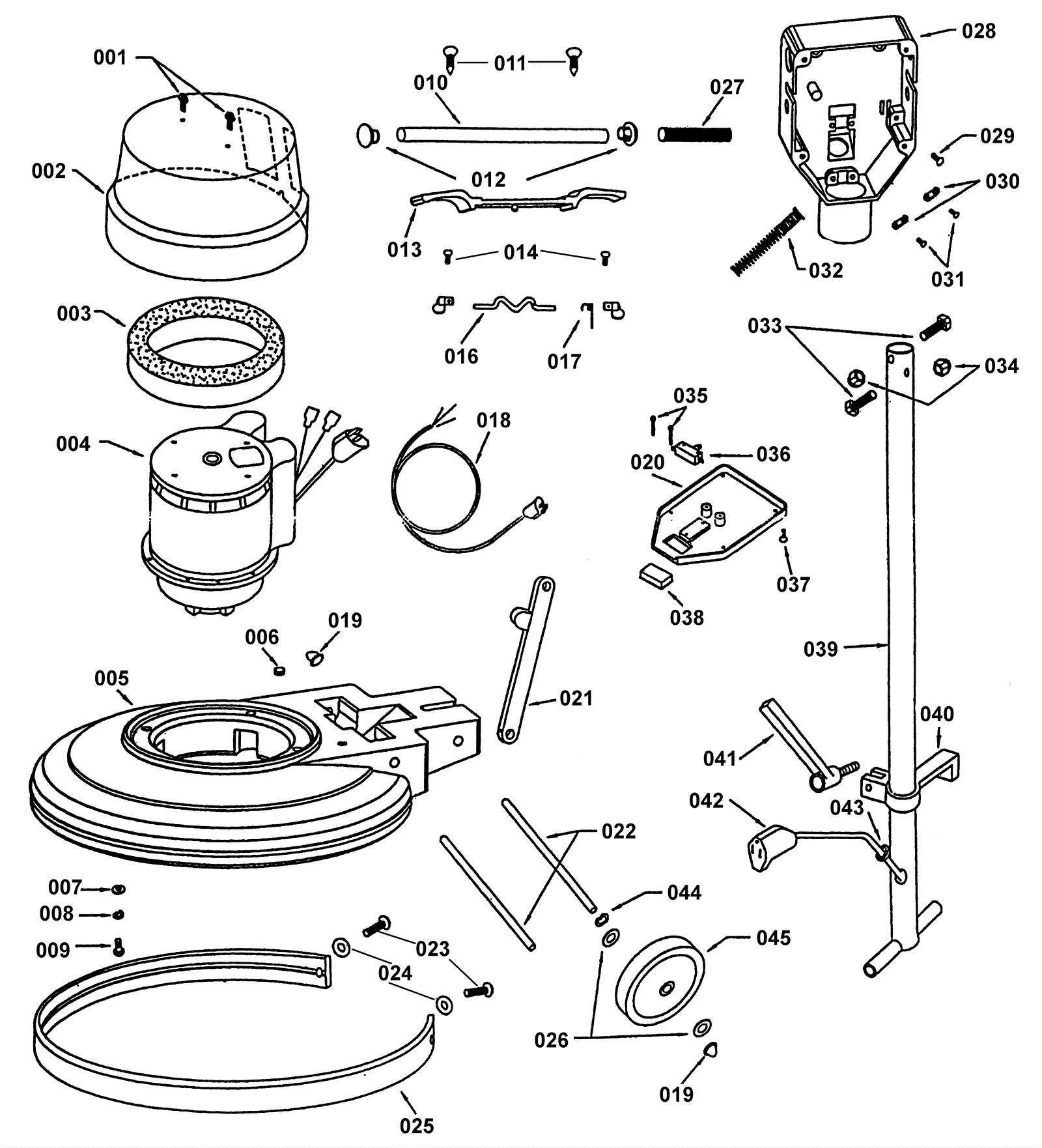

FFM20HD Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.90 2 ships same day
002 189-2957 Motor cover Call for price 1 usually ships 1-5 days
003 189-5036 Wet sm shroud filter (OBSOLETE) $6.50 1 usually ships 9-21 days
004a 189-5013 Stainless steel hd 1-1/2 hp motor $1,566.90 1 usually ships 1-5 days
004b 189-4850 Start capacitor $62.82 1 usually ships 9-21 days
004c 189-2506 Run capacitor $47.22 1 usually ships 1-5 days
005a 189-2951 Chassis 19 inch $161.20 1 usually ships 1-5 days
005b 189-2952 Chassis 17 inch $216.47 1 usually ships 1-5 days
006 189-5031 Reset insert $1.98 1 usually ships 1-5 days
007 999-0964 Washer 5/16 x 3/4 flat stainless steel $0.90 4 ships same day
008 189-1305 Washer 5/16 spring lock $0.90 4 usually ships 1-5 days
009 189-1308 Bolt 5/16- 18 x 1 1/2 hex brass $1.98 4 usually ships 9-21 days
010 189-5033 Handle tube $9.23 1 usually ships 1-5 days
011 189-1317 Screw 14 x 1 1/2 type a $1.98 2 usually ships 1-5 days
012 189-6015 Dome plug $1.98 2 usually ships 9-21 days
013 189-5048 Trigger assembly (OBSOLETE) $26.80 1 usually ships 9-21 days
014 189-1307 Screw 6-32 x 1/4 tap $1.98 2 usually ships 1-5 days
015 189-5015 Knob safety switch $17.33 2 usually ships 1-5 days
016 189-5049 Level safety switch tx $5.43 1 usually ships 1-5 days
017 189-5017 Spring safety switch $3.56 1 usually ships 1-5 days
018 991-5005 14/3 replacement power cord 50 foot (yellow) $119.36 1 (NON-OEM) (does not include strain relief) ships same day
019 189-5002 Axle end caps $1.98 4 usually ships 1-5 days
020 189-5023 Cover paint switch box $69.53 1 usually ships 1-5 days
021 189-5019 Painted handle brace $42.87 1 usually ships 1-5 days
022 189-5020 Plated axle shaft $14.27 2 usually ships 9-21 days
023 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
024 189-1301 Washer 1/4 large $1.98 2 usually ships 1-5 days
025a 189-2954 Bumper 19 inch $38.00 1 usually ships 1-5 days
025b 189-2953 Bumper 17 inch $31.60 1 usually ships 1-5 days
026 999-0566 Washer 1/2 flat nylon $0.99 4 ships same day
027 189-5010 Handle grip foam (OBSOLETE) $8.03 2 usually ships 9-21 days
028 189-5022 Painted switch box $175.43 1 usually ships 1-5 days
029 189-1311 8-32 X 1/4 Phillips Taptite $1.98 1 usually ships 1-5 days
030 189-5037 Cord grip $1.98 2 usually ships 1-5 days
031 189-1318 8-32 X 1/2 Taptite Phillips $1.98 4 usually ships 1-5 days
032 189-5009 Anti-kink spring $7.90 1 usually ships 1-5 days
033 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 2 ships same day
034 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
035 189-1316 6-32 X 7/8 Phillips Taptite (OBSOLETE) $1.98 2 usually ships 9-21 days
036 189-3115 Switch $19.47 1 usually ships 9-21 days
037 189-1311 8-32 X 1/4 Phillips Taptite $1.98 4 usually ships 1-5 days
038 189-5032 Switch insert $5.55 1 usually ships 1-5 days
039 189-2955 Handle tube $125.37 1 usually ships 1-5 days
040 189-3123 Cord hook $29.54 1 usually ships 9-21 days
041 N/A Not available Call for price 1 (Locking handle) usually ships 30-32 days
042 189-5004 42 inch female pigtail (OBSOLETE) $16.72 1 usually ships 9-21 days
043 217-0014 On/off switch $40.81 1 ships same day
044 189-1321 Washer TW8 1/2 tension $2.42 2 usually ships 9-21 days
045 189-5001 5 inch wheel $29.93 2 usually ships 1-5 days
