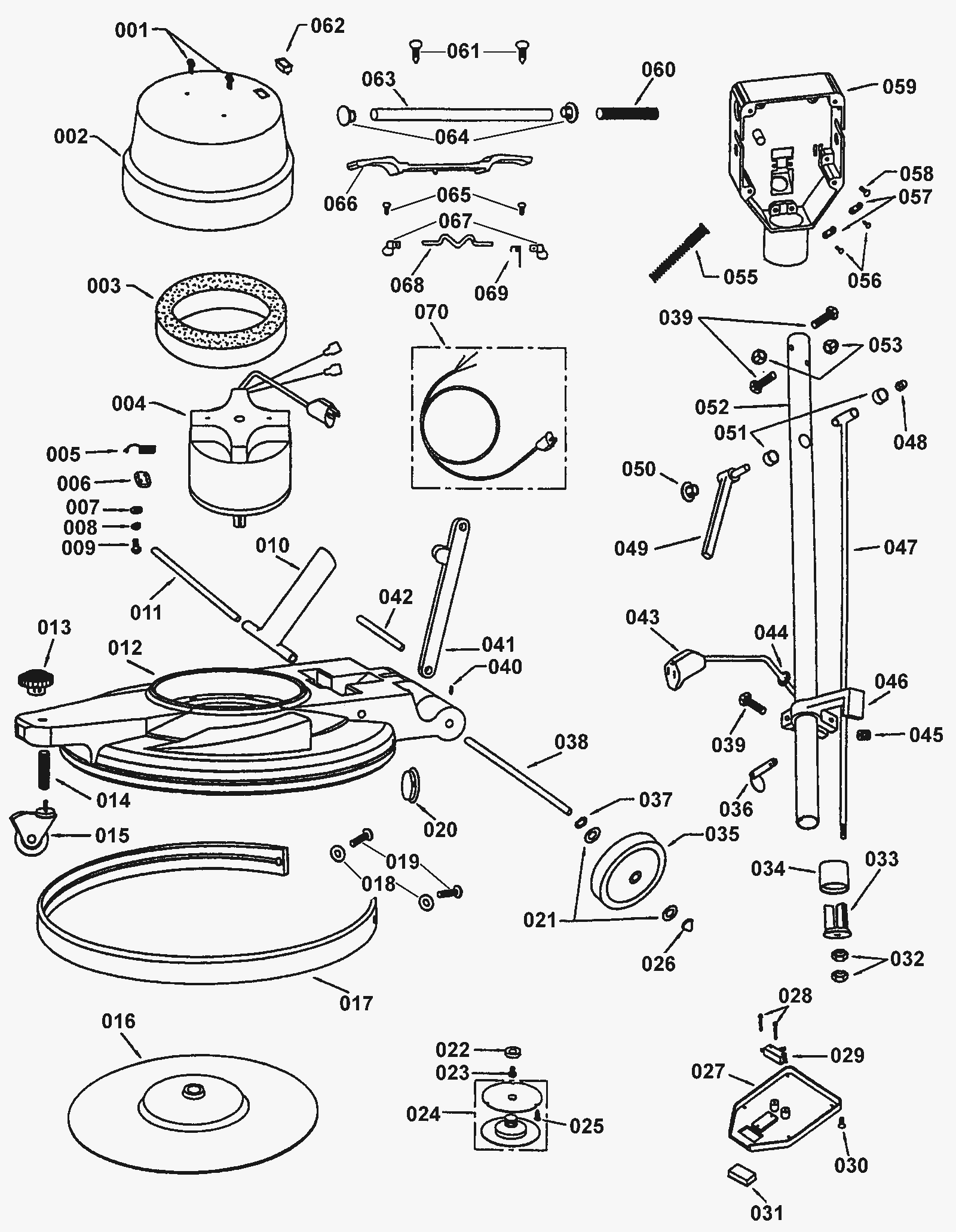

Entire Assembly

#PartDescription ReqNotesAvailability
001 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 2
002 189-5070 Motor Cover 1
003 189-5036 Wet sm shroud filter (OBSOLETE) 1
004 189-2941 Motor UHS 1500RPM 1
005 189-3039 Carbon brush (sold individually) 4
006 189-3042 50 amp 60 cycle rectifier 1
007 999-0964 Washer 5/16 x 3/4 flat stainless steel 4
008 189-1305 Washer 5/16 spring lock 4
009 189-1308 Bolt 5/16- 18 x 1 1/2 hex brass 4
010 189-5021 T-handle support paint 1
011 189-5020 Plated axle shaft 1
012 189-2945 Chassis-poly UHS 1
013 N/A Not available 1 (Knob)
014 N/A Not available 1 (Wheel stud)
015 N/A Not available 1 (Caster support)
016 189-5059 Flexible drive assembly 1
017 189-5053 Uhs bumper (OBSOLETE) 1
018 189-1301 Washer 1/4 large 2
019 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 2
020 189-2942 UHS Chassis plug 1
021 999-0566 Washer 1/2 flat nylon 4
022 189-1315 Cup washer 1
023 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 1
024 991-2206 Center-Lok 3 pad holder 1
025 189-1324 Screw 8 x 5/8 pan head set 3
026 189-5002 Axle end caps 2
027 189-5023 Cover paint switch box 1
028 189-1316 6-32 X 7/8 Phillips Taptite (OBSOLETE) 2
029 189-3115 Switch 1
030 189-1311 8-32 X 1/4 Phillips Taptite 4
031 189-5032 Switch insert 1
032 189-1309 Nut 5/16-18 nylon locking 2
033 189-5011 Wedge handle (OBSOLETE) 1
034 189-5029 Tapered sleeve (OBSOLETE) 1
035 189-5001 5 inch wheel 2
036 189-5005 Hitch pin (OBSOLETE) 1
037 189-1321 Washer TW8 1/2 tension 2
038 189-5052 Wheel axle plated 1
039 999-0200 Bolt 1/2-13 x 1 1/4 hex head 3
040 189-2958 Screw 10-24 x 1/4 stainless steel 1
041 189-5019 Painted handle brace 1
042 189-5067 Axle Plated Brace 1
043 189-5004 42 inch female pigtail (OBSOLETE) 1
044 217-0014 On/off switch 1
045 189-1323 Screw 5/16-18 x 5/16 set 1
046 N/A Not available 1 (Brace lock)
047 189-5028 Extension rod welded 1
048 999-0234 Nut 3/8-16 acorn nickel plated 1
049 N/A Not available 1 (Cam lever assembly)
050 189-5027 Heyco cam lever plug 1
051 N/A Not available 2 (Bushing)
052 189-5025 Plated handle tube 1
053 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
055 189-5009 Anti-kink spring 1
056 189-1318 8-32 X 1/2 Taptite Phillips 4
057 189-5037 Cord grip 2
058 189-1311 8-32 X 1/4 Phillips Taptite 1
059 189-5022 Painted switch box 1
060 189-5010 Handle grip foam (OBSOLETE) 2
061 189-1317 Screw 14 x 1 1/2 type a 2
062 189-2959 Clutch plate 1
063 189-5033 Handle tube 1
064 189-6015 Dome plug 2
065 189-1307 Screw 6-32 x 1/4 tap 2
066 189-5048 Trigger assembly (OBSOLETE) 1
067 189-5015 Knob safety switch 2
068 189-5049 Level safety switch tx 1
069 189-5017 Spring safety switch 1
070 189-3110 14/3 power cord 50 foot 1
