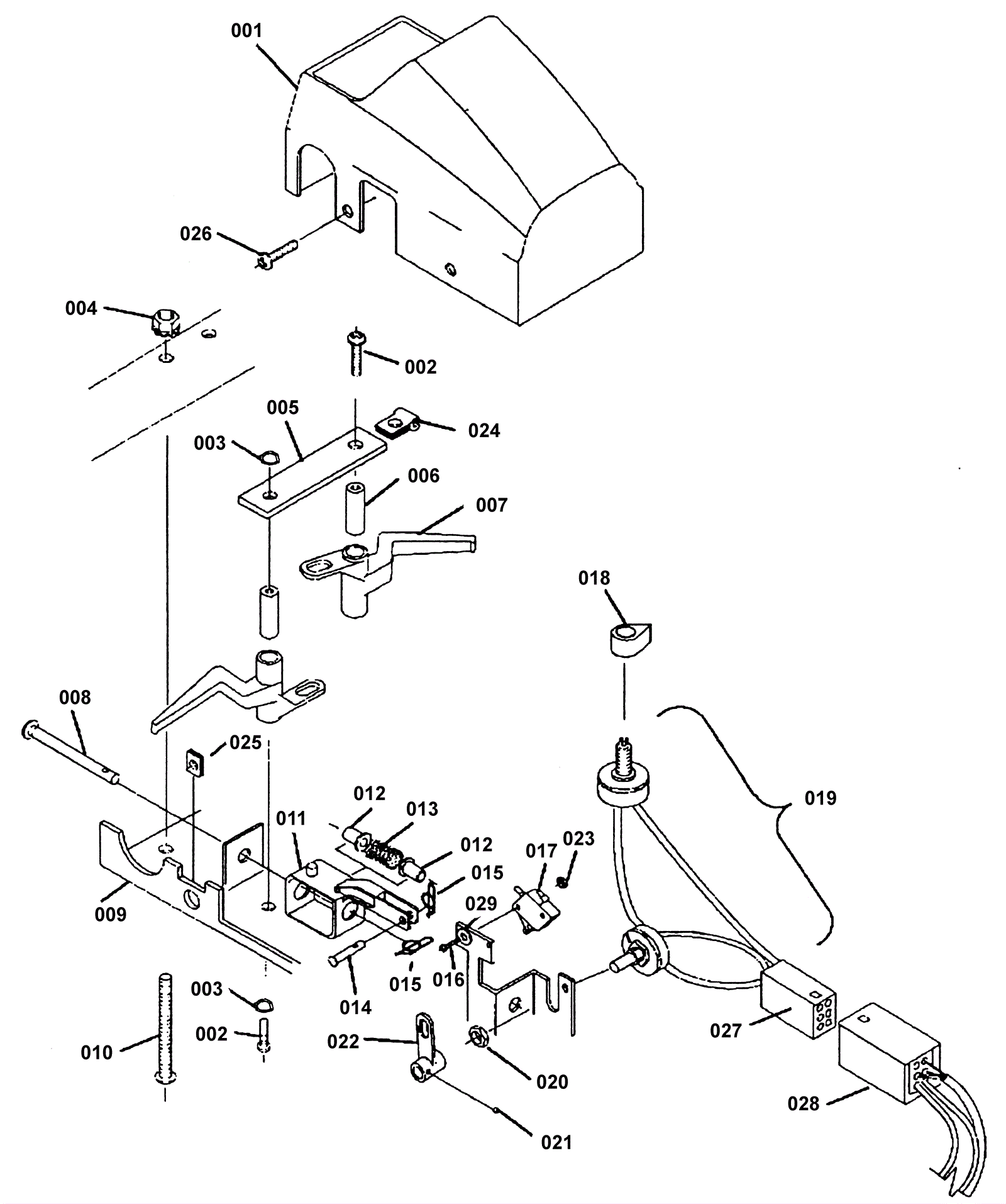

Bat2500 Drive Control Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-7107 Propel handle cover $101.20 usually ships 1-5 days
002 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel $0.99 ships same day
003 999-0311 Washer #10 external star lock zinc plated $0.99 ships same day
004 173-2472 Nut 10-32 with star washer $0.99 usually ships 1-5 days
005 173-1030 Lever Pivot Support $17.49 usually ships 1-5 days
006 173-1031 Handle Lever Pivot Rod $46.86 usually ships 1-5 days
007 173-1032 Propel Control Handle Lever $25.74 usually ships 1-5 days
008 173-1033 Clevis Pin $5.08 usually ships 1-5 days
009 173-1034 Propel Control Plate Assembly $89.65 usually ships 1-5 days
010 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 ships same day
011 173-1035 Lever Centering Guide $38.58 usually ships 1-5 days
013 189-2191 Spring 1-1/2in large compression Call for price usually ships 1-5 days
014 173-1038 Pin Clevis 3/16 x 1/12 $3.87 usually ships 1-5 days
015 173-1130 Cotter ring $2.42 ships same day
017 189-0305 Microswitch $123.95 usually ships 7-19 days
018 173-1041 Speed control knob $18.04 usually ships 7-19 days
020 173-3896 Nut 3/8-27 Panel $0.99 usually ships 7-19 days
021 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish $0.99 ships same day
022 173-1042 Potentiometer pivot (OBSOLETE) $20.94 usually ships 7-19 days
023 173-2579 Nut 4-40 hex star lock $0.99 usually ships 1-5 days
024 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 usually ships 7-19 days
025 173-2576 Nut 10-24 tinnerman (OBSOLETE) $5.35 usually ships 7-19 days
026 173-2566 Screw #10 x 1/2 pan head $1.03 ships same day
027 173-4052 Connector Molex 6 Pin receptacle $5.17 usually ships 7-19 days
028 189-2195 Wire assembly control Call for price usually ships 1-5 days
029 999-0377 Washer 6 SAE flat plain finish $0.99 ships same day
