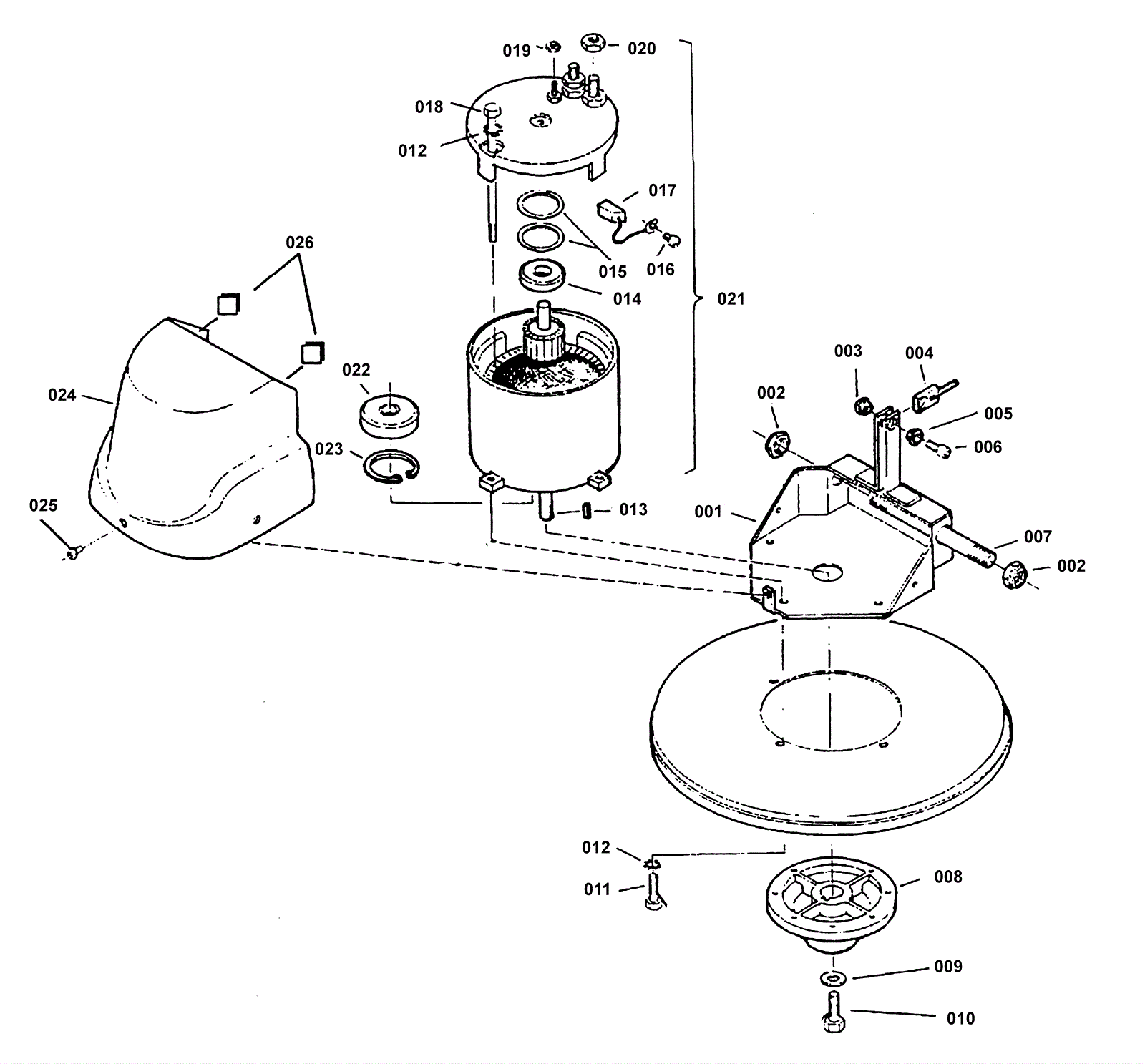

Bat2500 Deck Lift Mechanism

#PartDescriptionPriceReqNotesAvailability
001 173-9790 Scrub deck mount (OBSOLETE) Call for price usually ships 1-5 days
003 173-1958 Flange bushing $2.42 usually ships 1-5 days
004 189-2087 Linkage deck guide adjustment $69.18 usually ships 1-5 days
005 173-1939 Bushing $67.65 usually ships 1-5 days
006 999-0312 Screw 1/4-20 x 3/8 socket head shoulder $2.84 ships same day
007 189-2089 Rod Deck lift Call for price usually ships 1-5 days
008 173-9793 Pad driver hub (OBSOLETE) $77.50 1 usually ships 1-5 days
009 999-0024 Washer 5/16 flat stainless steel $1.34 ships same day
010 173-0439 Screw 5/16-24 x 1/2 machine stainless steel $3.03 usually ships 7-19 days
011 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 ships same day
012 999-0017 Washer 1/4 external star lock $0.99 ships same day
013 173-9111 Square keyway $5.03 usually ships 7-19 days
014 173-9794 Upper motor bearing (OBSOLETE) $41.43 usually ships 1-5 days
015 189-2094 Washer bearing thrust Call for price usually ships 1-5 days
016 999-0413 Screw 10-32 x 1/2 pan head slotted zinc plated $2.20 ships same day
017 189-2095 Brush set 2000rpm $244.42 usually ships 1-5 days
018 189-2096 Bolt 1/4-20 x 7 1/2 Call for price usually ships 1-5 days
019 999-0460 Nut 10-32 hex $0.99 ships same day
020 173-5044 Nut 1/4-28 stop elastic $1.96 usually ships 1-5 days
021 173-9112 Motor $1,928.85 usually ships 1-5 days
022 173-9799 Lower motor bearing (OBSOLETE) $63.67 usually ships 1-5 days
023 189-2100 Snap ring Call for price usually ships 1-5 days
024 173-0440 Motor cover $368.50 usually ships 1-5 days
025 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer $0.99 usually ships 7-19 days
026 173-0213 Gasket $4.66 usually ships 7-19 days
