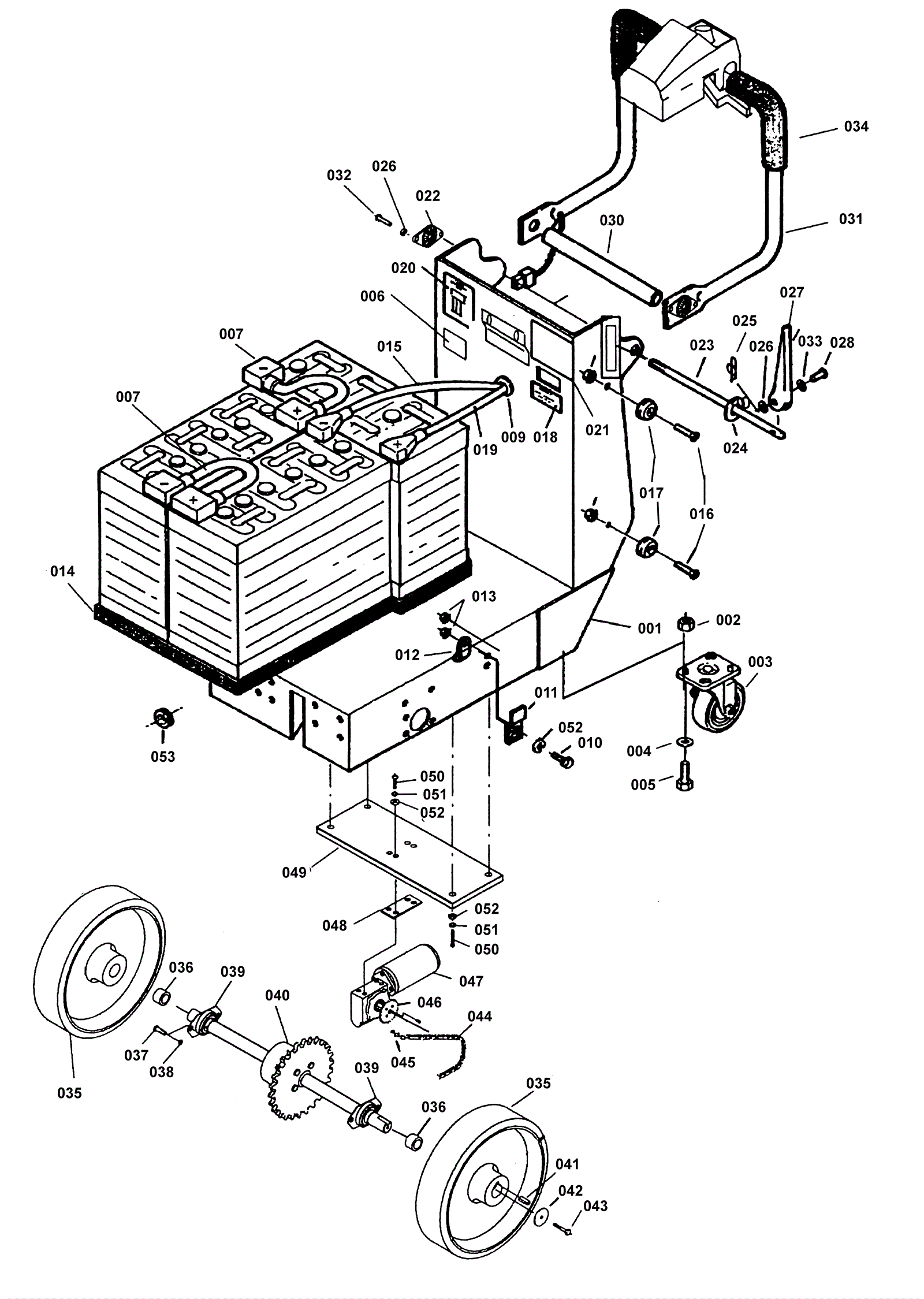

Bat2500 Chassis/Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 189-2076 Frame assembly Call for price usually ships 1-5 days
002 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 usually ships 7-19 days
004 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 ships same day
005 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 ships same day
006 173-1723 2 percent grade decal $4.29 usually ships 1-5 days
007 189-2105 Clamp style jumper cable (black) $110.06 usually ships 11-24 days
009 173-1891 Grommet $5.50 usually ships 1-5 days
010 999-0710 Screw 10-32 x 5/8 button head six-lobe stainless steel $1.28 ships same day
011 173-0424 Battery retainer bracket $41.15 usually ships 1-5 days
012 173-2099 P clamp (OBSOLETE) $1.39 usually ships 7-19 days
013 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 ships same day
014 173-0417 Battery tray $108.90 usually ships 1-5 days
015 189-2110 Cable 4GA (black) x 27 in $79.99 usually ships 1-5 days
016 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated $0.99 ships same day
017 173-0421 Main cover spacer $25.36 usually ships 1-5 days
018 189-2111 Label charger warning Call for price usually ships 1-5 days
019 N/A Not available Call for price (Cable assembly) usually ships 3-26 days
020 189-2113 Battery warning label Call for price usually ships 1-5 days
021 189-2114 Label wiring diagram Call for price usually ships 1-5 days
023 173-9810 Handle adjsutment rod (OBSOLETE) $53.41 usually ships 1-5 days
024 189-9275 Key (pkg of 2) $13.01 usually ships 11-24 days
025 173-1130 Cotter ring $2.42 ships same day
026 999-0998 Washer #10 flat stainless steel $0.99 ships same day
027 189-2116 Lever handle lock Call for price usually ships 1-5 days
028 173-0419 Clevis pin $8.47 usually ships 7-19 days
030 173-9813 Handle adjustment tube (OBSOLETE) $24.01 usually ships 1-5 days
031 173-9814 Propel handle (OBSOLETE) $143.29 usually ships 1-5 days
033 999-0006 Washer 3/16 flat zinc plated $0.99 ships same day
034 173-1043 Handle x 9.5 inch Grip $3.39 usually ships 7-19 days
035 189-2122 Wheel 10 in x 2-1/2in gray with 1in bore $421.82 usually ships 1-5 days
036 189-2123 Spacer axle Call for price usually ships 1-5 days
037 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 ships same day
038 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 ships same day
039 173-9117 Bearing assembly (OBSOLETE) $111.79 usually ships 1-5 days
040 173-9819 Differential (OBSOLETE) $297.48 usually ships 1-5 days
041 173-0518 Key 1/4 x 1/4 x 2 1/2 $2.11 usually ships 1-5 days
042 999-0016 Washer 1/4 flat plain finish $0.99 ships same day
043 999-0710 Screw 10-32 x 5/8 button head six-lobe stainless steel $1.28 ships same day
044 189-2128 Chain #40 1/2 in pitch x 40 $20.98 usually ships 1-5 days
046 173-9119 Sprocket (OBSOLETE) $41.99 usually ships 1-5 days
047 173-9120 Motor (OBSOLETE) $1,304.07 usually ships 1-5 days
048 189-2132 Plate motor spacer Call for price usually ships 1-5 days
049 189-2133 Plate propel motor Call for price usually ships 1-5 days
050 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 ships same day
051 999-0017 Washer 1/4 external star lock $0.99 ships same day
052 999-0123 Washer 1/4 SAE flat zinc plated $0.99 ships same day
053 173-0426 Grommet 3/4 x 1.38 $10.56 usually ships 1-5 days
