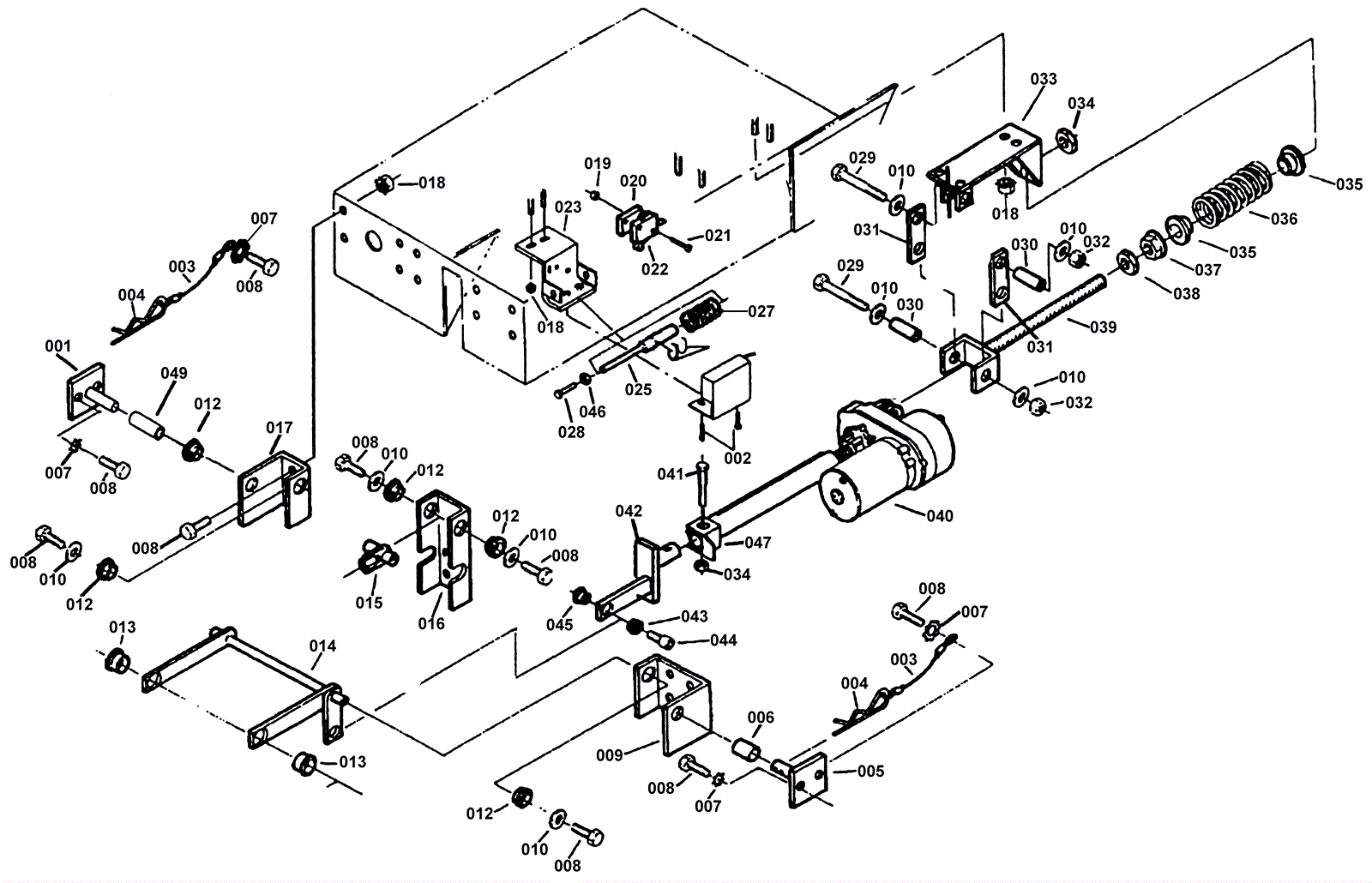

Bat2500 Lift Linkage

#PartDescriptionPriceReqNotesAvailability
001 173-0488 Right cover pivot assembly $85.25 usually ships 1-5 days
002 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 ships same day
003 173-0490 Cover pin cord $44.33 usually ships 1-5 days
004 173-0489 Cotter pin $0.99 usually ships 1-5 days
005 173-0506 Cover pivot assembly $73.70 usually ships 1-5 days
006 173-0507 Cover pivot bushing $14.30 usually ships 1-5 days
007 999-0017 Washer 1/4 external star lock $0.99 ships same day
008 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 ships same day
009 173-0508 Scrub deck link bracket $49.83 usually ships 1-5 days
010 999-0123 Washer 1/4 SAE flat zinc plated $0.99 ships same day
012 189-2141 Bushing flange 1/2 x 3/4OD $49.06 usually ships 1-5 days
013 173-1987 Deck bushing $13.64 usually ships 14-22 days
014 173-9779 Deck lift linkage (OBSOLETE) $226.48 usually ships 1-5 days
015 173-0510 Deck guide adjustment linkage assembly $166.10 usually ships 1-5 days
016 173-0509 Scrub deck link bracket $64.90 usually ships 1-5 days
017 173-0486 Scrub deck link bracket $50.49 usually ships 1-5 days
018 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 ships same day
019 173-2579 Nut 4-40 hex star lock $0.99 usually ships 1-5 days
020 173-0492 Spacer $6.01 usually ships 1-5 days
021 189-2147 Screw 4-40 x 1 in phillips pan head machine Call for price usually ships 1-5 days
022 173-1902 SPST switch $54.89 usually ships 1-5 days
023 189-2149 Bracket extended microswitch mounting Call for price usually ships 1-5 days
024 173-0494 Retaining clip $0.99 usually ships 1-5 days
025 173-0493 Microswitch plunger $73.15 usually ships 1-5 days
026 189-2152 Cover extended microswitch bracket Call for price usually ships 1-5 days
027 189-0353 Compression spring $15.65 usually ships 14-22 days
028 999-0254 Screw 8-32 x 5/8 flat head slotted zinc $0.99 ships same day
029 173-5054 Bolt 1/4-1-3/4 hex head $2.37 usually ships 14-22 days
030 173-9785 Bushing (OBSOLETE) $9.34 usually ships 1-5 days
031 173-0501 Actuator pivot link $24.53 usually ships 1-5 days
032 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 ships same day
033 189-2156 Mount actuator spring Call for price usually ships 1-5 days
034 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 usually ships 14-22 days
035 189-2157 Cap spring Call for price usually ships 1-5 days
036 173-9106 Spring $45.43 usually ships 14-22 days
037 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 ships same day
038 999-0247 Nut 3/8-16 hex jam plain finish $0.99 ships same day
039 189-2159 Pivot actuator spring Call for price usually ships 1-5 days
040 189-2160 Actuator 36VDC 3in stroke Call for price usually ships 1-5 days
041 999-0550 Bolt 3/8-16 x 2 hex head stainless steel $2.95 ships same day
042 189-2161 Linkage actuator connecting Call for price usually ships 1-5 days
043 173-1939 Bushing $67.65 usually ships 1-5 days
044 999-0312 Screw 1/4-20 x 3/8 socket head shoulder $2.84 ships same day
045 173-1958 Flange bushing $2.42 usually ships 1-5 days
046 999-0308 Nut 8-32 plain $0.99 ships same day
047 189-2162 Plate microswitch plunger Call for price usually ships 1-5 days
049 173-0487 Tube $20.79 usually ships 1-5 days
