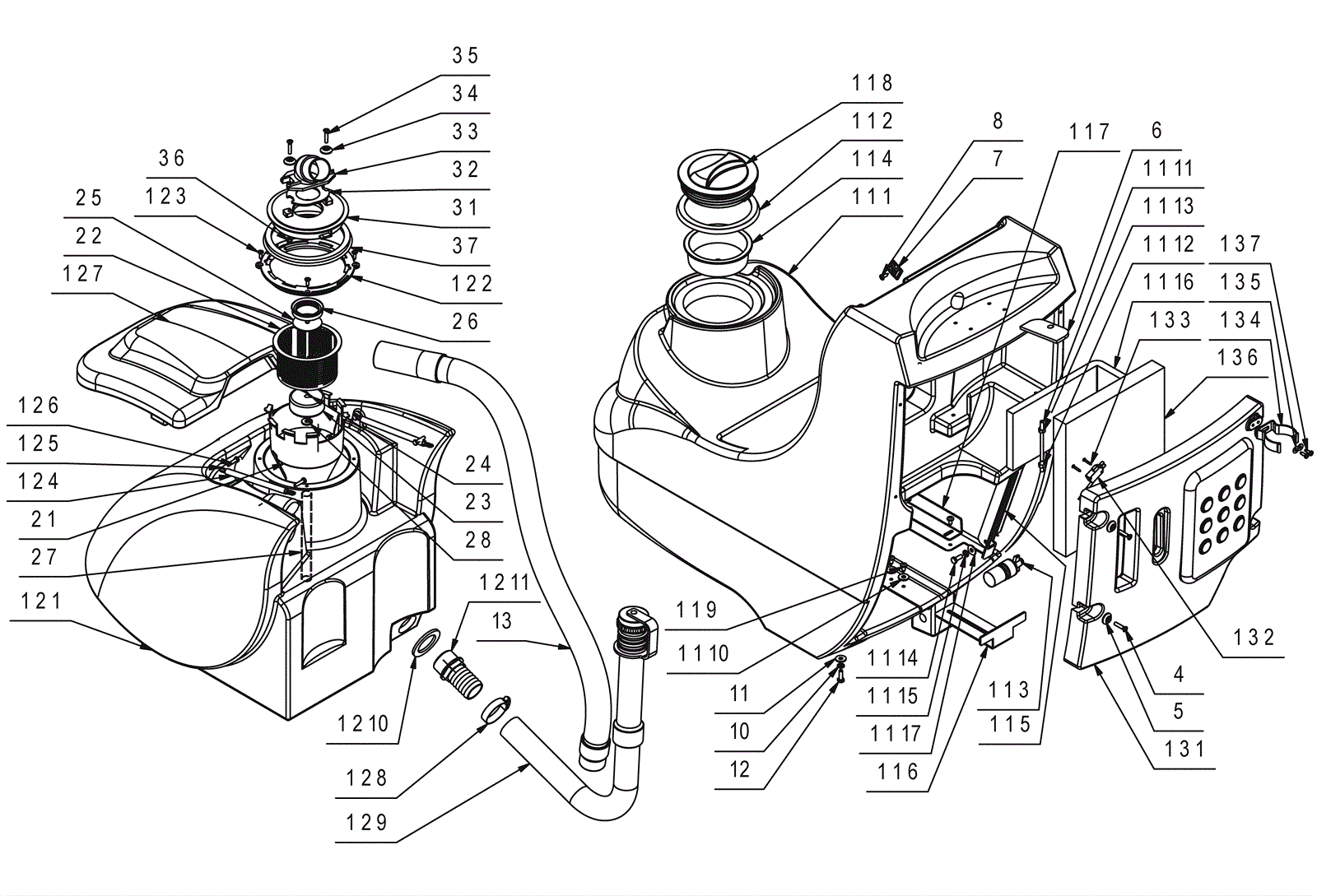

CREWMAN AS20B Tank Assembly

#PartDescriptionPriceReqNotesAvailability
2 189-3274 Float assembly $126.47 1 (includes 21-28) usually ships 11-24 days
3 189-9152 Recovery tank lid assembly $62.02 1 (includes 31-37) usually ships 11-24 days
4 189-3277 Screw M5 x 25mm $3.21 4 usually ships 11-24 days
5 189-9156 Washer M5 x 20mm flat stainless steel $12.84 4 usually ships 11-24 days
6 189-3278 Foam pad $6.95 2 usually ships 11-24 days
7 206-0567 Support plate (OBSOLETE) $5.91 4 usually ships 1-5 days
8 189-6278 Screw M4.2-.7 x 16mm pan head self tapping zinc plated $12.84 4 usually ships 1-5 days
9 189-5369 Bolt M5 x 25mm $19.32 2 usually ships 11-24 days
10 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 4 usually ships 6-27 days
11 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
12 999-1592 Bolt M6-1 x 18mm hex head stainless steel $1.24 2 usually ships 1-5 days
13 189-3201 Squeegee hose $61.93 1 usually ships 11-24 days
21 189-6327 Vacuum splash guard $13.01 1 usually ships 11-24 days
22 250-1484 Filter $16.94 1 usually ships 11-24 days
23 189-9116 Float $13.01 1 usually ships 11-24 days
24 283-1816 SPLIT PIN D.2X20 UNI 1336 GALV. $4.58 2 usually ships 6-27 days
25 189-9146 Rod $22.33 1 usually ships 11-24 days
26 189-9147 Grommet $5.50 1 usually ships 11-24 days
27 189-3275 Hose $8.21 1 ships same day
28 189-4450 Washer $12.84 1 usually ships 11-24 days
31 189-9148 Cover $9.35 1 usually ships 11-24 days
32 189-9149 Gasket $5.50 1 usually ships 11-24 days
33 189-9150 Coupling $27.89 1 usually ships 1-5 days
34 189-9156 Washer M5 x 20mm flat stainless steel $12.84 2 usually ships 11-24 days
35 189-3277 Screw M5 x 25mm $3.21 2 usually ships 11-24 days
36 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
37 189-4369 Filter gasket $20.48 1 ships same day
111 189-3255 Solution tank $666.30 1 (includes 112-119 and 1110-1117) usually ships 11-24 days
112 189-3261 Gasket $20.48 1 usually ships 11-24 days
113 189-2659 Filter assembly $62.59 1 usually ships 11-24 days
114 189-6267 Filter $11.86 1 usually ships 11-24 days
115 189-3262 Bracket $40.83 1 usually ships 11-24 days
116 189-3263 Angle $48.37 1 usually ships 11-24 days
117 189-3264 Support $59.86 1 usually ships 11-24 days
118 189-6266 Cap $29.79 1 usually ships 11-24 days
119 206-0656 Screw (OBSOLETE) Call for price 4 usually ships 1-5 days
121 189-3266 Recovery tank $1,160.85 1 (includes 122-129) usually ships 11-24 days
122 189-9157 Filter holder $36.38 1 usually ships 1-5 days
123 189-6278 Screw M4.2-.7 x 16mm pan head self tapping zinc plated $12.84 4 usually ships 1-5 days
124 189-3267 Chain protector $6.95 2 usually ships 11-24 days
125 189-3268 Support chain tank cover $14.55 2 usually ships 11-24 days
126 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc $0.99 4 ships same day
127 189-3269 Cover $212.61 1 usually ships 11-24 days
128 189-3270 Hose clamp $12.46 1 usually ships 11-24 days
129 189-3203 Drain hose assembly $33.80 1 ships same day
131 189-3272 Back panel cover $316.09 1 (includes 132-137) usually ships 11-24 days
132 189-7562 Micro switch $28.00 1 usually ships 1-5 days
133 189-3280 Screw Call for price 2 usually ships 11-24 days
134 189-7552 Drain hose clip $5.50 1 usually ships 11-24 days
135 999-1115 Washer M4 flat zinc plated $0.99 2 ships same day
136 189-3273 Vacuum motor deadening $25.41 1 usually ships 11-24 days
137 189-3279 Screw Call for price 2 usually ships 11-24 days
1110 189-4450 Washer $12.84 2 usually ships 11-24 days
1111 189-9141 Stud bolt $17.41 2 usually ships 1-5 days
1112 999-1308 Nut M6-1 hex stainless steel $0.99 2 ships same day
1113 189-5094 Nut M6 $2.38 2 usually ships 11-24 days
1114 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
1115 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 2 usually ships 6-27 days
1116 189-3265 Deadening $16.92 1 usually ships 11-24 days
1117 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
1210 189-3271 Gasket $5.50 1 usually ships 11-24 days
1211 189-4282 Connector $17.73 1 usually ships 1-5 days
