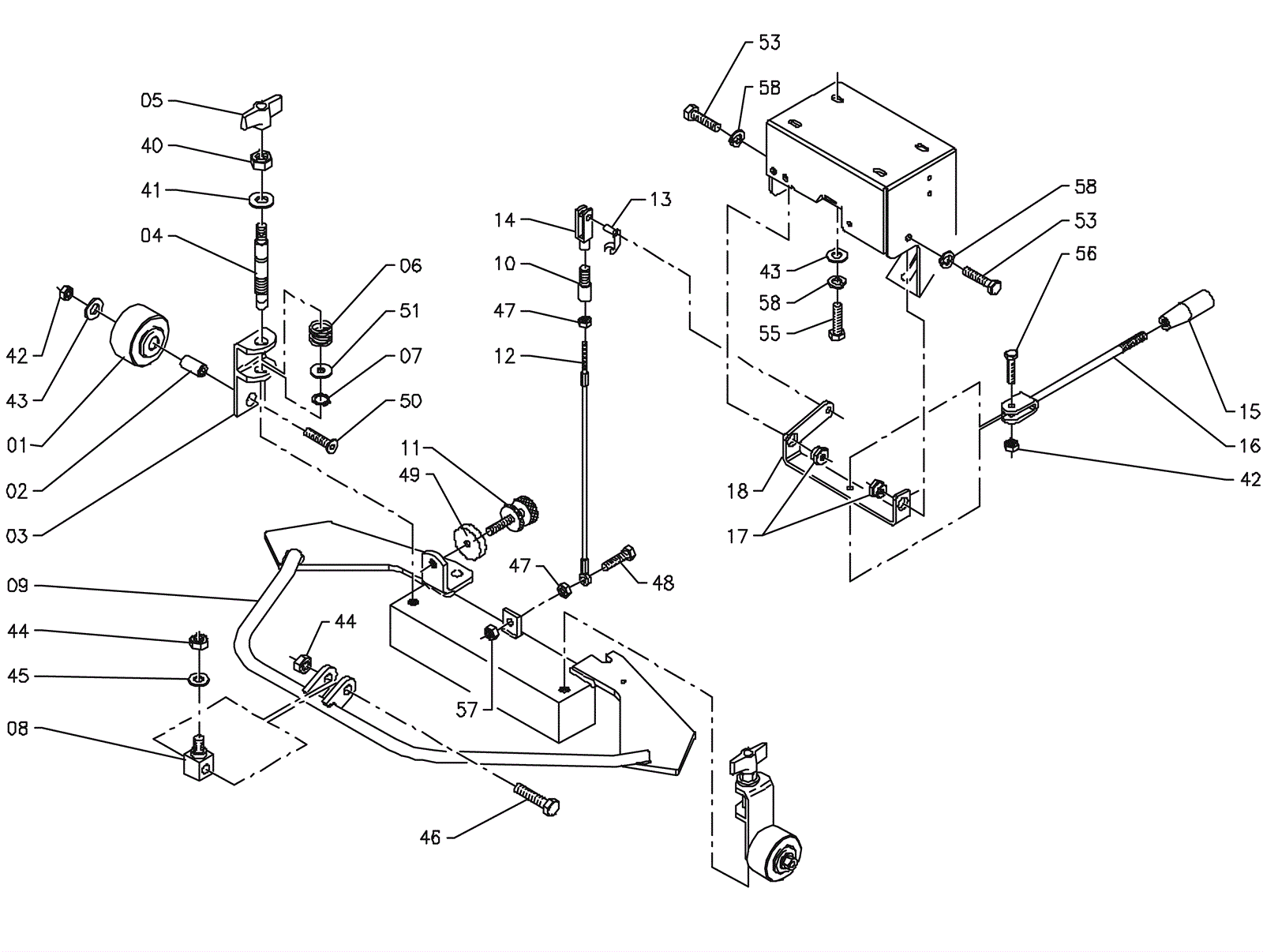

CREWMAN AS20B Squeegee Control Assembly

#PartDescriptionPriceReqNotesAvailability
01 189-6230 Wheel $20.48 2 usually ships 11-24 days
02 189-6232 Bushing $11.30 2 usually ships 11-24 days
03 189-6228 Squeegee wheel support weldment $35.88 2 usually ships 1-5 days
04 189-6229 Threaded pin $27.89 2 usually ships 1-5 days
05 189-2545 Knob $12.84 2 usually ships 11-24 days
06 189-6231 Compression spring $5.50 2 usually ships 1-5 days
07 189-6233 Clip $10.50 2 usually ships 1-5 days
08 189-3258 Coupling $21.76 1 usually ships 11-24 days
09 189-3281 Squeegee coupling $423.58 1 usually ships 11-24 days
10 189-3282 Extension tube $14.85 1 usually ships 11-24 days
11 206-0670 Adjuster knob (OBSOLETE) $9.56 1 usually ships 5-15 days
12 N/A Not available Call for price 1 (Squeegee lift cable) usually ships 3-26 days
13 189-4549 Clip $5.50 1 usually ships 11-24 days
14 189-4679 Fork $26.76 1 usually ships 11-24 days
15 189-3283 Knob $9.35 1 usually ships 11-24 days
16 189-3284 Handle lever $82.12 1 usually ships 11-24 days
17 189-3285 Bushing $15.27 2 usually ships 11-24 days
18 189-3286 Lever $43.53 1 usually ships 11-24 days
40 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
41 999-1267 Washer M8 flat zinc $0.99 2 ships same day
42 189-5094 Nut M6 $2.38 2 usually ships 11-24 days
43 189-4697 Washer M6 x 18mm flat $2.38 4 usually ships 11-24 days
44 999-1550 Nut M10-1.5 nylon insert lock $0.99 1 usually ships 1-5 days
45 189-3287 Flat washer $12.66 1 ships same day
46 189-3290 Bolt M10 Call for price 1 usually ships 11-24 days
47 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
48 999-0498 Bolt M5-.8 x 20mm hex head full thread zinc $0.99 1 ships same day
49 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
50 189-3288 Screw M6 x 50mm $15.13 2 usually ships 11-24 days
51 206-5291 Washer (OBSOLETE) Call for price 2 usually ships 1-5 days
53 999-0978 Bolt M6-1 x 14mm hex head stainless steel $0.99 1 ships same day
55 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 1 ships same day
56 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 1 usually ships 6-27 days
57 189-8730 Nut M5 x 7mm hex nylock zinc $12.84 1 usually ships 11-24 days
58 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 3 usually ships 6-27 days
