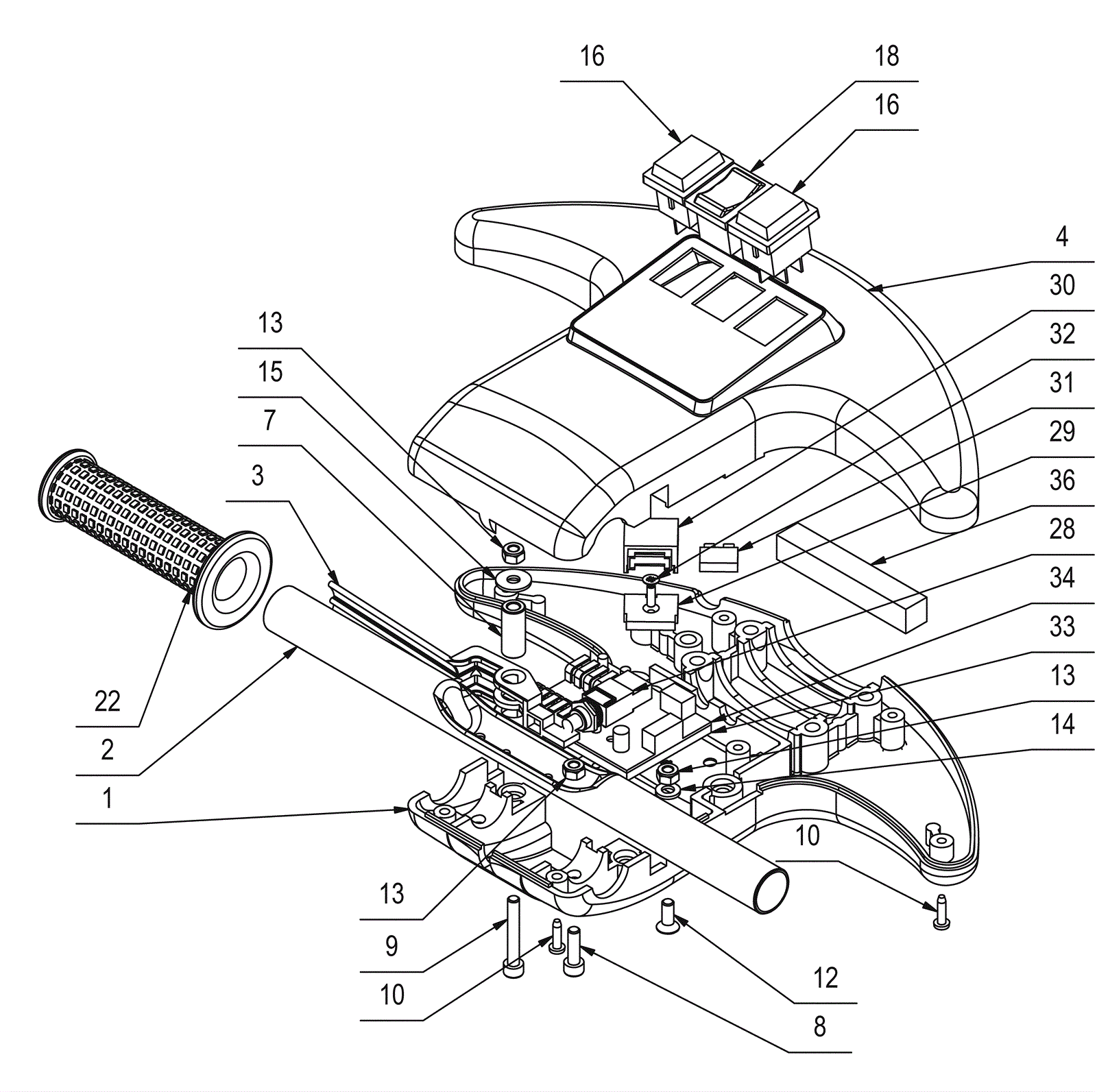

CREWMAN AS20B Handlebar Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-5181 Handle bar body $96.69 1 ships same day
2 189-3296 Handle bar $65.95 1 usually ships 11-24 days
3 206-0690 Lever $5.50 2 usually ships 11-24 days
4 189-5182 Handle bar cover $28.95 1 usually ships 11-24 days
7 189-3297 Pin $12.18 2 usually ships 11-24 days
8 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
9 999-1593 Screw M6-1 x 40mm socket head stainless steel $1.85 2 ships same day
10 283-1679 SELF THR SCREW 4.2X16 UNI 6954 GALV. $4.58 4 usually ships 6-27 days
12 283-1699 SCREW M6X16 UNI5933 DIN7991 (10.9) Z $4.58 1 usually ships 6-27 days
13 189-5094 Nut M6 $2.38 5 usually ships 11-24 days
14 999-6714 Washer M6 x 12mm flat stainless steel $0.99 1 ships same day
15 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
16 189-9257 Vacuum switch $31.10 2 usually ships 11-24 days
18 189-9201 Battery level display $86.71 1 usually ships 11-24 days
22 189-3298 Handle grip $5.50 2 ships same day
28 206-0688 Microswitch $40.59 1 ships same day
29 189-9448 Mounting plate $6.95 1 usually ships 11-24 days
30 189-9208 Fuse holder $16.08 1 usually ships 1-5 days
31 189-9209 3amp fuse $8.93 1 usually ships 1-5 days
32 189-3299 Battery cover screw $2.38 1 usually ships 11-24 days
33 189-3300 Gasket $17.41 1 usually ships 11-24 days
34 189-9205 Battery indicator card $187.35 1 usually ships 11-24 days
36 189-3301 Spacer $6.95 1 usually ships 11-24 days
