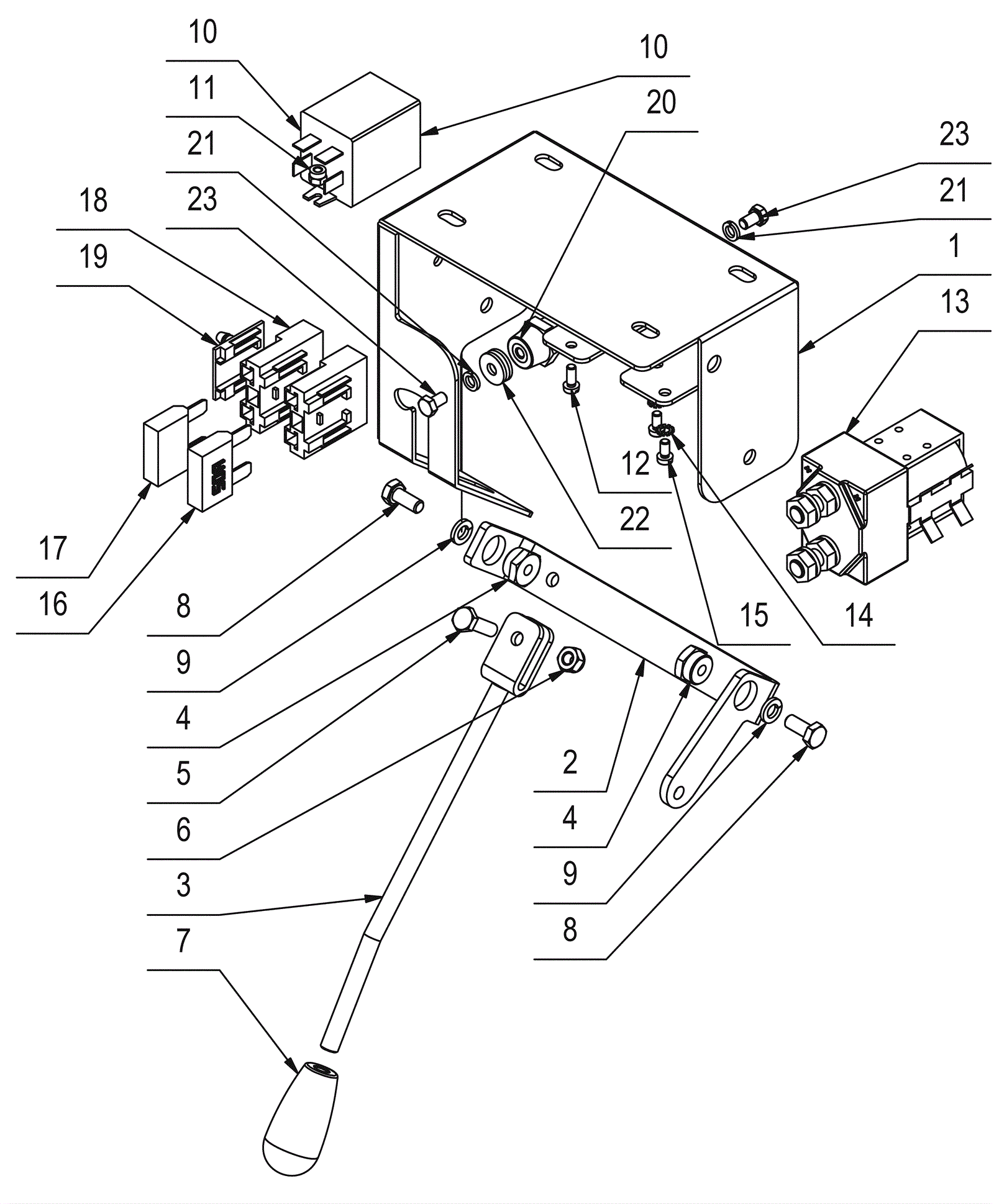

CREWMAN AS20B Electric Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-3302 Electrical panel $135.30 1 usually ships 11-24 days
2 189-3286 Lever $43.53 1 usually ships 11-24 days
3 189-3284 Handle lever $82.12 1 usually ships 11-24 days
4 189-3285 Bushing $15.27 2 usually ships 11-24 days
5 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 1 usually ships 6-27 days
6 189-5094 Nut M6 $2.38 1 usually ships 11-24 days
7 189-3283 Knob $9.35 1 usually ships 11-24 days
8 999-0978 Bolt M6-1 x 14mm hex head stainless steel $0.99 2 ships same day
9 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 2 usually ships 6-27 days
10 189-5354 Washer $17.41 1 usually ships 11-24 days
11 189-5429 Nut M4 nyloc $2.38 1 usually ships 11-24 days
12 250-1680 Screw M4 x 10mm Call for price 1 usually ships 11-24 days
13 206-0708 24V contactor (OBSOLETE) $142.72 1 usually ships 11-24 days
14 189-3304 Washer $15.95 2 usually ships 11-24 days
15 189-4861 Screw (OBSOLETE) $13.00 2 (Screw) usually ships 11-24 days
16 189-3305 50amp fuse $17.91 1 usually ships 11-24 days
17 189-9872 Fuse 30amp $21.70 1 usually ships 11-24 days
18 250-1259 Fuseholder $16.08 2 usually ships 11-24 days
19 189-3308 Fuse block end cap $12.21 1 usually ships 11-24 days
20 189-3309 Insulator $14.55 1 usually ships 11-24 days
21 189-9122 Lock washer $2.38 2 usually ships 1-5 days
22 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
23 189-3310 Screw $2.38 2 usually ships 11-24 days
