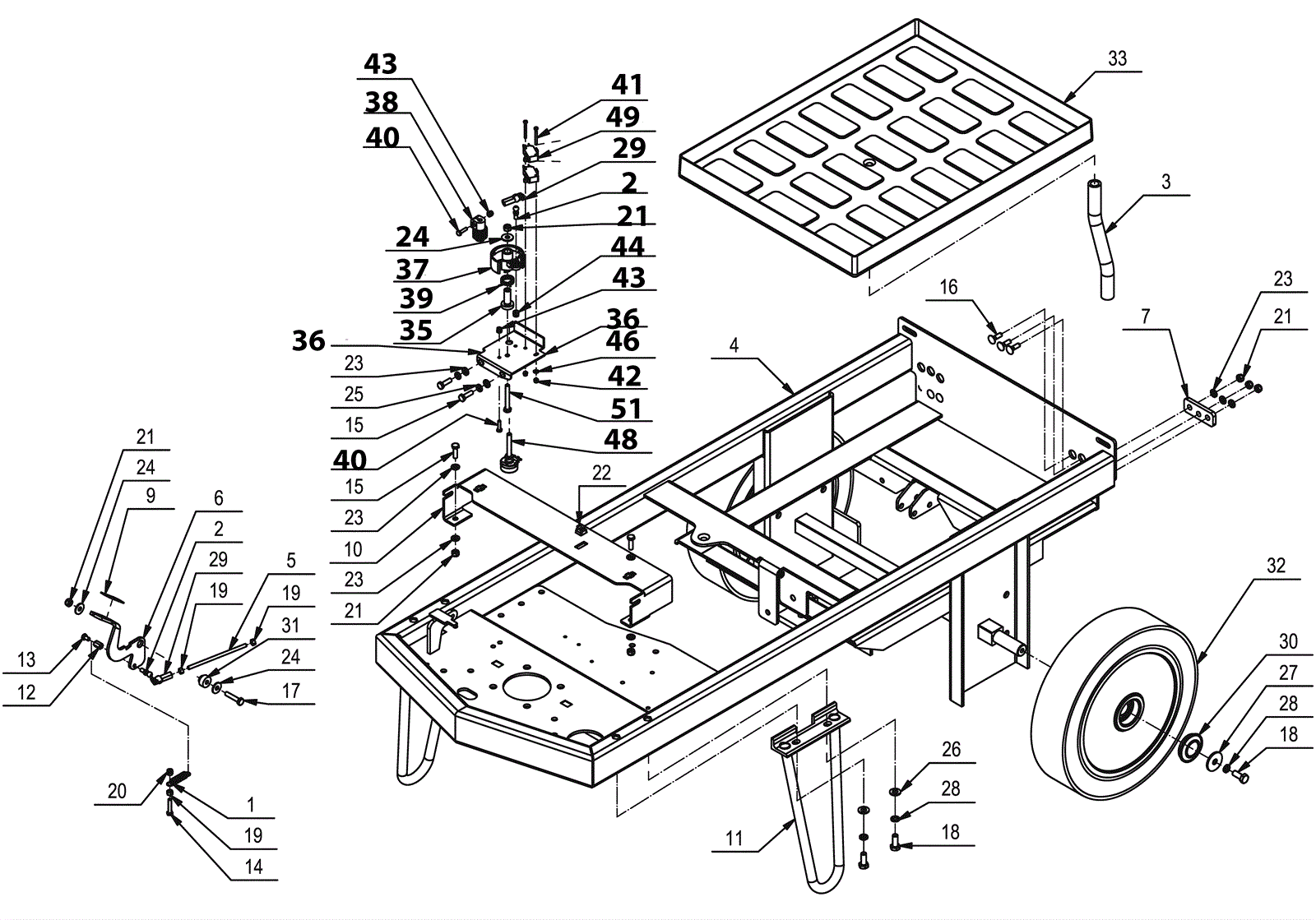

STEALTH DRS26BT Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 250-1086 Spring $7.48 1 usually ships 1-5 days
2 189-6347 Pin $12.18 2 usually ships 1-5 days
3 189-4443 PVC tubing $7.39 1 usually ships 14-27 days
4 189-8865 Frame $1,532.38 1 usually ships 14-27 days
5 189-4611 Connecting rod $39.19 1 usually ships 14-27 days
6 189-8866 Accelerator pedal $64.81 1 usually ships 14-27 days
7 189-8867 Plate spacer $39.80 1 usually ships 14-27 days
9 189-8871 Anti-slip tape $20.70 1 usually ships 14-27 days
10 189-8872 Floor support bracket $171.68 1 usually ships 14-27 days
11 189-8873 Anti-bar roll $106.59 2 usually ships 14-27 days
12 189-8874 Spacer $46.53 1 usually ships 14-27 days
13 189-3310 Screw $2.38 1 usually ships 14-27 days
14 189-5369 Bolt M5 x 25mm $19.32 1 usually ships 14-27 days
15 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA $4.58 2 usually ships 26-37 days
16 999-1614 Bolt M6-1 x 20mm carriage head stainless steel $10.71 3 ships same day
17 999-1309 Screw M6-1 x 30mm hex head zinc $0.99 1 usually ships 1-5 days
18 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 5 ships same day
19 999-0740 Nut M5-.8 hex stainless steel $0.99 3 ships same day
20 189-8730 Nut M5 x 7mm hex nylock zinc $12.84 1 usually ships 14-27 days
21 189-5094 Nut M6 $2.38 5 usually ships 14-27 days
22 189-5439 Nut M5 $17.41 1 usually ships 14-27 days
23 999-6714 Washer M6 x 12mm flat stainless steel $0.99 6 ships same day
24 999-1261 Washer M6 flat stainless steel $0.99 3 ships same day
25 283-1770 WASHER 6X2.5X1.8 GROWER GALV. $4.58 1 usually ships 26-37 days
26 999-1267 Washer M8 flat zinc $0.99 2 ships same day
27 189-9071 Washer M9 flat zinc $12.84 2 usually ships 14-27 days
28 189-9084 Washer M8 lock zinc $2.18 5 usually ships 1-5 days
29 189-6348 Ball stud receiver $5.50 2 usually ships 14-27 days
30 189-8693 Wheel cap $5.50 2 usually ships 1-5 days
31 189-8875 Bushing $17.46 1 usually ships 14-27 days
32 189-3252 Wheel 300 OD x 70 W $484.11 2 usually ships 14-27 days
33 189-8876 Battery support base $187.22 1 usually ships 14-27 days
35 189-4704 Bushing $12.30 1 usually ships 14-27 days
36 189-8869 Bracket $152.05 2 usually ships 14-27 days
37 189-6346 Cam $7.48 1 usually ships 14-27 days
38 189-9228 Pinion $9.65 1 usually ships 1-5 days
39 189-9229 Spring $19.33 1 usually ships 1-5 days
40 999-9106 Screw M4-.7 x 16mm hex head stainless steel $0.99 2 ships same day
41 999-1520 Screw M3-.5 x 30mm pan head phillips zinc plated $0.99 1 ships same day
42 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 1 ships same day
43 189-5429 Nut M4 nyloc $2.38 2 usually ships 14-27 days
44 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 2 ships same day
46 189-8870 Washer M3 x 8 x 1 flat zinc $12.79 1 usually ships 14-27 days
48 189-5200 Potentiometer $113.10 1 usually ships 14-27 days
49 189-6349 Microswitch $31.10 2 usually ships 14-27 days
51 999-0781 Screw M6-1 x 45mm hex head $0.99 1 ships same day
N/S 189-8868 Potentiometer $427.37 1 (includes 2, 21, 24, 29, 35-44, 46, 48-49, 51) usually ships 14-27 days
