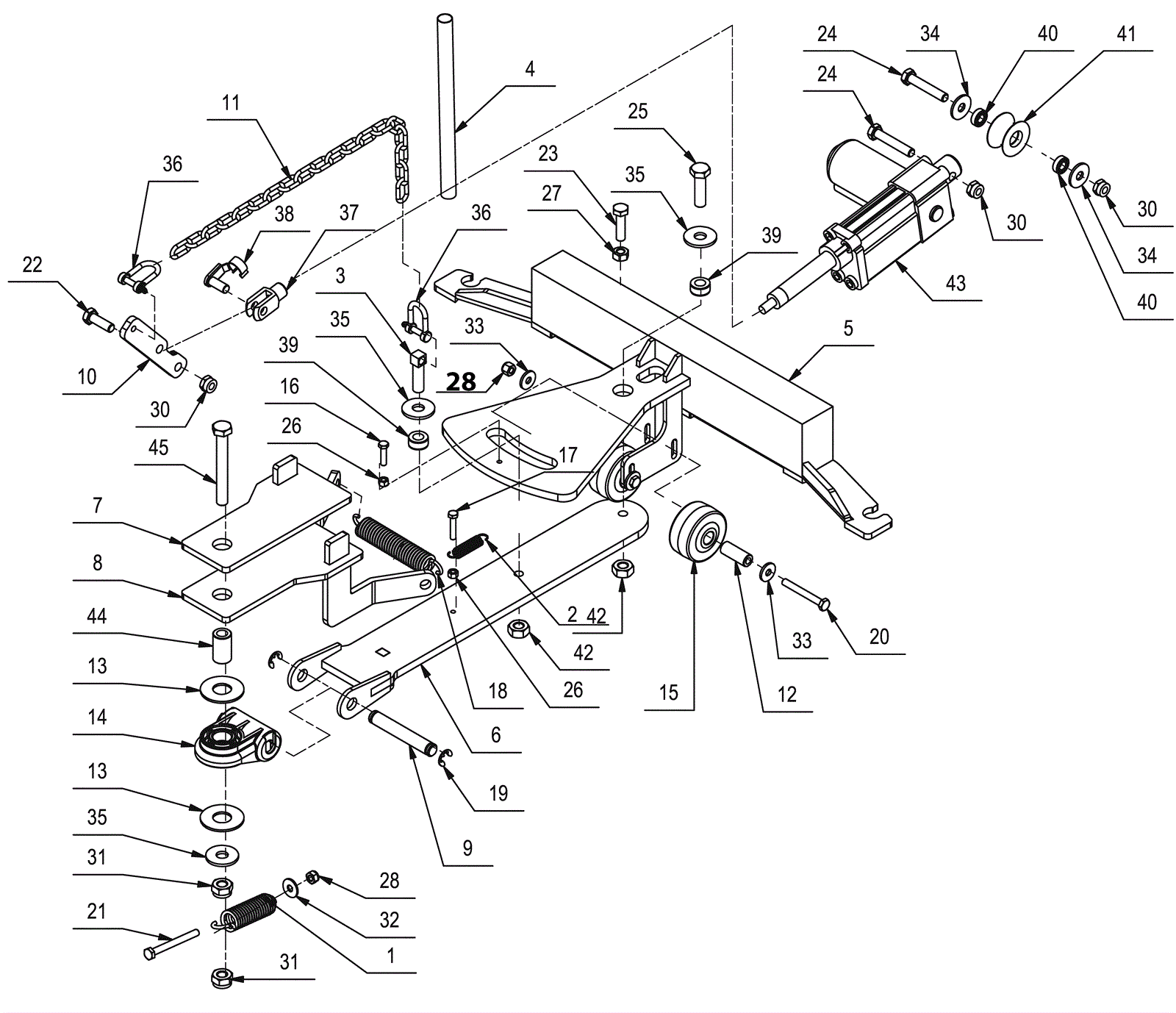

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
189-6223
|
Spring |
1 |
|
|
2 |
250-1086
|
Spring |
1 |
|
|
3 |
189-9398
|
Eye bolt |
1 |
|
|
4 |
189-8847
|
Sheath |
1 |
|
|
5 |
189-8848
|
Squeegee support bracket |
1 |
|
|
6 |
189-8849
|
Squeegee pivot linkage arm |
1 |
|
|
7 |
189-8850
|
Pivot bracket |
1 |
|
|
8 |
189-8851
|
Squeegee centering bracket |
1 |
|
|
9 |
189-8852
|
Pivot pin |
1 |
|
|
10 |
189-8853
|
Lever arm |
1 |
|
|
11 |
189-8854
|
Squeegee lift chain |
1 |
|
|
12 |
189-4491
|
Bushing |
1 |
|
|
13 |
189-5414
|
Washer M17 |
2 |
|
|
14 |
189-4316
|
Pivot connector |
1 |
|
|
15 |
189-6230
|
Wheel |
1 |
|
|
16 |
999-0498
|
Bolt M5-.8 x 20mm hex head full thread zinc |
1 |
|
|
17 |
189-5369
|
Bolt M5 x 25mm |
1 |
|
|
19 |
189-6233
|
Clip |
1 |
|
|
20 |
250-1275
|
Screw M6 x 50mm |
1 |
|
|
21 |
250-1287
|
Screw M6 x 60mm |
1 |
|
|
22 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
1 |
|
|
23 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
1 |
|
|
24 |
999-0470
|
Bolt M8-1.25 x 45mm hex head part thread zinc |
2 |
|
|
25 |
999-0246
|
Bolt M10-1.5 x 35mm hex head full thread |
1 |
|
|
26 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
|
|
27 |
999-1424
|
Nut M8-1.25 hex stainless steel |
1 |
|
|
28 |
189-5094
|
Nut M6 |
2 |
|
|
30 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
31 |
999-1550
|
Nut M10-1.5 nylon insert lock |
2 |
|
|
32 |
999-1261
|
Washer M6 flat stainless steel |
1 |
|
|
33 |
189-4450
|
Washer |
2 |
|
|
34 |
189-6198
|
Flat washer |
2 |
|
|
35 |
189-4517
|
Washer |
3 |
|
|
36 |
189-4678
|
Split pin |
2 |
|
|
37 |
189-0080
|
Fork |
1 |
|
|
38 |
189-9187
|
Clamping pin |
1 |
|
|
39 |
189-8855
|
Bushing |
2 |
|
|
42 |
999-1428
|
Nut M10-1.5 hex zinc finish |
2 |
|
|
43 |
189-3311
|
24V actuator assembly |
1 |
|
|
44 |
189-8856
|
Bushing |
1 |
|
|
45 |
999-6709
|
Screw M10-1.5 x 80mm hex head stainless steel |
1 |
|
|
