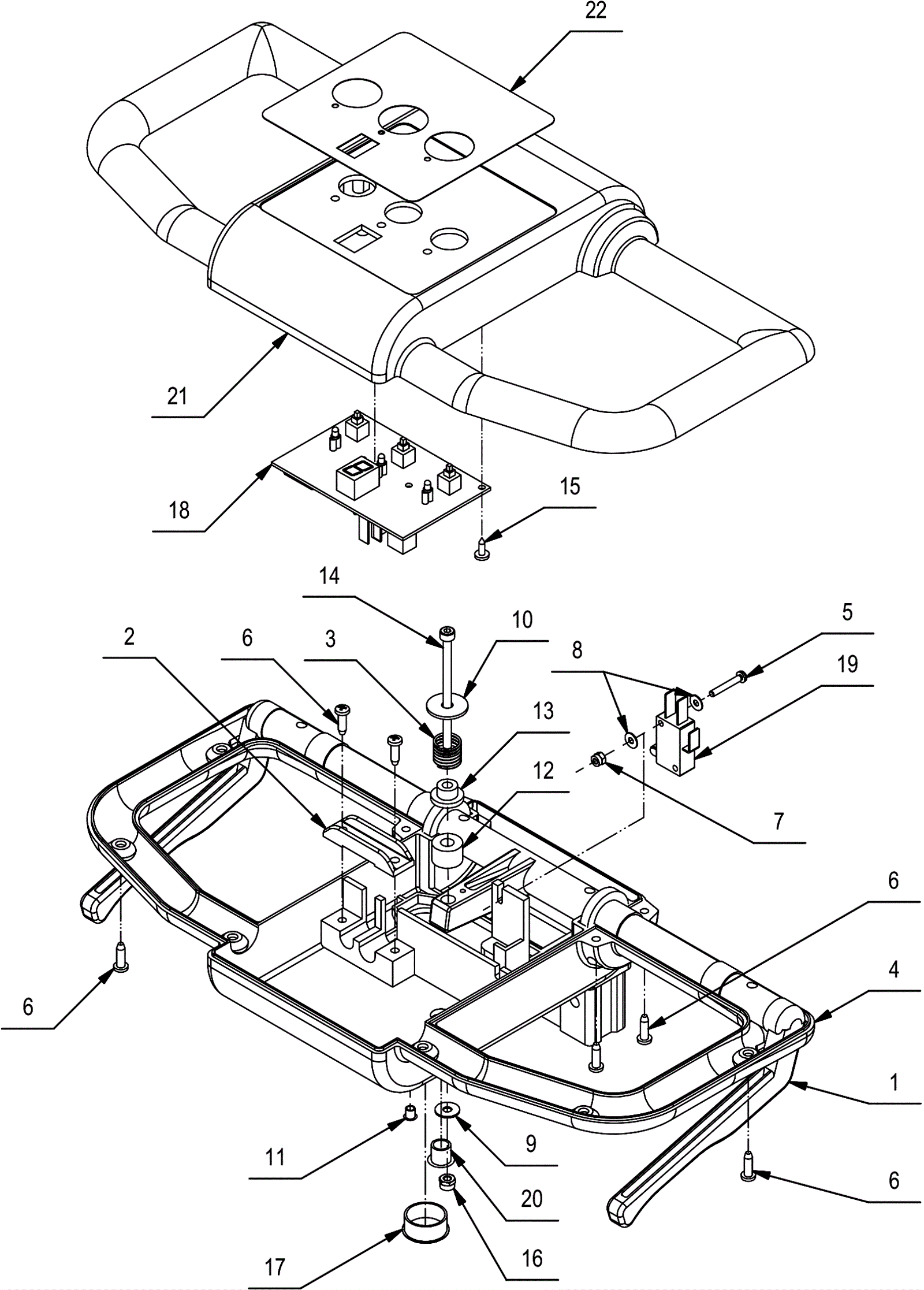

VISPA 35B Handlebar Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-1151 Trigger handle $38.61 1 usually ships 11-24 days
2 N/A Not available Call for price 1 (cable fastener) usually ships 3-26 days
3 283-1542 SPRING 13,5X36X1 $13.33 1 usually ships 6-27 days
4 189-1153 Lower handle cover $47.88 1 usually ships 11-24 days
5 283-1661 SCREW M3X20 UNI 7687 (4.8) GALV. $4.58 1 usually ships 6-27 days
6 999-1617 Screw M3.9 x 13mm pan head philliips self tapping SS $0.99 12 ships same day
7 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 1 ships same day
8 283-1750 WASHER 3X8X1 UNI 6593 GALV. $4.80 2 usually ships 6-27 days
9 999-1115 Washer M4 flat zinc plated $0.99 1 ships same day
10 189-1154 Washer M5 x 20 x 1.5 flat zinc plated $17.41 1 usually ships 11-24 days
11 189-9075 Plug $6.95 1 usually ships 1-5 days
12 189-6269 Spacer $6.95 1 usually ships 1-5 days
13 N/A Not available Call for price 1 (bushing) usually ships 3-26 days
14 999-6762 Screw M4 - .7 x 65mm socket cap stainless steel $5.06 1 (screw M4 x 65mm) usually ships 11-24 days
15 189-9076 Screw M2.9 x 9.5mm pan head phillips zinc $2.38 4 usually ships 1-5 days
16 283-2096 LOCK NUT M4 UNI 7474 LOW $2.99 1 usually ships 6-27 days
17 189-1157 Nut cover $5.72 1 usually ships 11-24 days
18 189-8610 Electrical board control switch $171.71 1 usually ships 11-24 days
19 189-1158 Microswitch $36.30 1 usually ships 11-24 days
20 189-8705 Cap $5.50 1 usually ships 1-5 days
21 189-1159 Top handle cover $28.29 1 usually ships 11-24 days
22 189-1160 Decal (OBSOLETE) $18.95 1 usually ships 11-24 days
