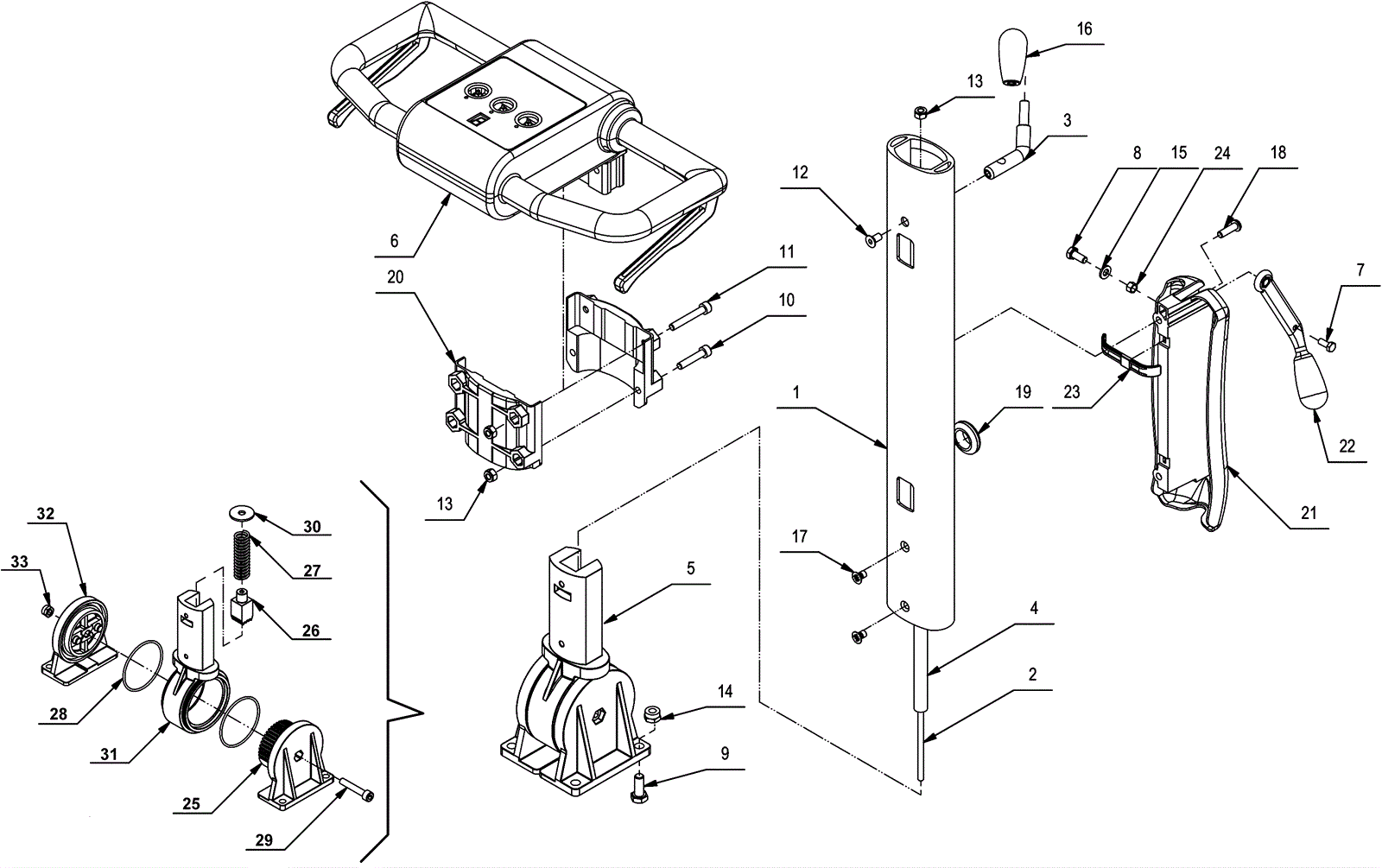

VISPA 35B Steering Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-1141 Handlebar tube Call for price 1 usually ships 11-24 days
2 189-1142 Threaded tie rod $5.50 1 usually ships 11-24 days
3 N/A Not available Call for price 1 (pin) usually ships 3-26 days
4 283-1173 TRANSPARENT HOSE 8X2X340 $59.28 1 usually ships 6-27 days
5 189-8714 Handle pivot base assembly $360.88 1 usually ships 11-24 days
6 189-1147 Handle assembly $645.87 1 usually ships 11-24 days
7 283-1507 SCREW M5X12 UNI 5739 (8.8) GALV. $4.58 1 usually ships 6-27 days
8 283-1514 SCREW M6X14 UNI 5739 (8.8) GALV. $4.58 1 usually ships 6-27 days
9 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
10 283-1648 SCREW M6X30 TCEI UNI 5931 DIN912 (8.8 $4.58 2 usually ships 6-27 days
11 999-1593 Screw M6-1 x 40mm socket head stainless steel $1.85 2 ships same day
12 189-9405 Screw M6 x 12mm $10.18 1 usually ships 11-24 days
13 189-5094 Nut M6 $2.38 5 usually ships 11-24 days
14 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
15 999-6714 Washer M6 x 12mm flat stainless steel $0.99 1 ships same day
16 283-1866 CYLINDRICAL KNOB MCT/25X50 M8 $14.12 1 usually ships 6-27 days
17 283-2076 SCREW $2.84 2 usually ships 6-27 days
18 999-1591 Screw M6-1 x 20mm button head socket stainless steel $0.99 2 ships same day
19 189-8700 Grommet $6.95 1 usually ships 1-5 days
20 N/A Not available Call for price 2 (support) usually ships 3-26 days
21 189-9077 Plastic cover $37.21 1 usually ships 11-24 days
22 189-8706 Squeegee lift lever $7.48 1 usually ships 11-24 days
23 189-9078 Plastic mounting clip $12.84 1 usually ships 11-24 days
24 189-6190 Spacer $12.84 1 usually ships 11-24 days
25 189-1144 Handle Geared Pivot Base $50.74 1 usually ships 11-24 days
26 189-1149 Geared shoe $24.22 1 usually ships 11-24 days
27 283-2165 RUBBER BAND $4.11 1 usually ships 6-27 days
28 283-2170 GASKET 3262 2,62X66,35 $13.24 2 usually ships 6-27 days
29 283-2162 SCREW $2.84 1 usually ships 6-27 days
30 189-9071 Washer M9 flat zinc $12.84 1 usually ships 11-24 days
31 189-1146 Handle base $90.68 1 usually ships 11-24 days
32 189-1150 Handle pivot base $25.28 1 usually ships 11-24 days
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
