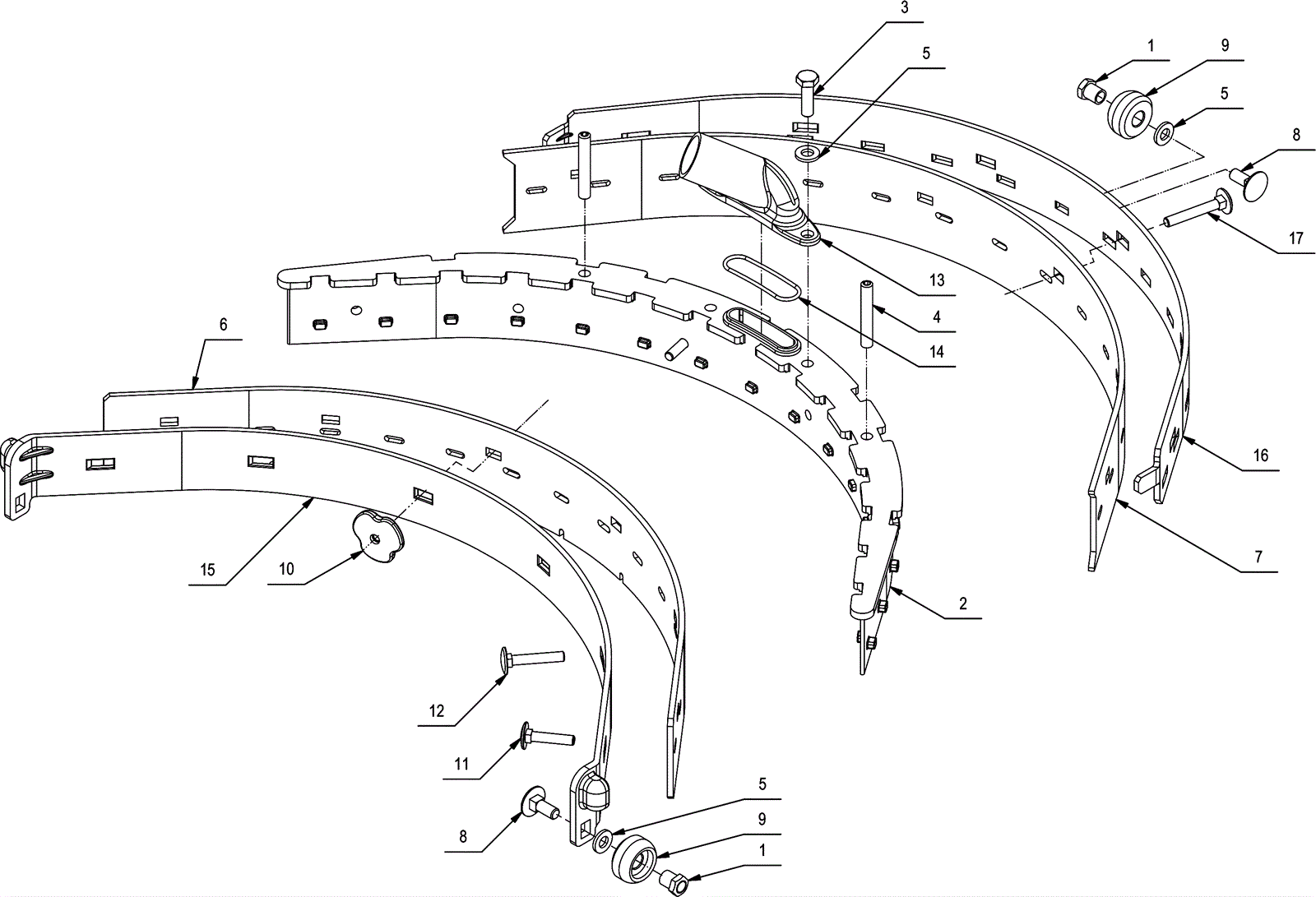

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
189-8522
|
Bushing |
$13.15
|
3 |
|
ships same day |
2 |
189-8659
|
Squeegee shoe |
$164.34
|
1 |
|
usually ships 11-24 days |
3 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
$0.99
|
2 |
|
ships same day |
4 |
189-8732
|
Screw M6 x 40mm hex set flat end stainless steel |
$11.02
|
2 |
|
usually ships 11-24 days |
5 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
$0.99
|
5 |
|
ships same day |
6 |
189-8524
|
Front squeegee blade |
$25.10
|
1 |
|
ships same day |
7 |
189-8525
|
Rear squeegee blade |
$29.81
|
1 |
|
ships same day |
8 |
189-8521
|
Bolt M6 x 16mm carriage head stainless steel |
$2.38
|
3 |
|
ships same day |
9 |
189-8520
|
Squeegee support wheel |
$13.01
|
3 |
|
ships same day |
10 |
189-8523
|
Squeegee blade retainer bushing |
$5.50
|
6 |
|
usually ships 11-24 days |
11 |
999-1584
|
Bolt M5-.8 x 25mm carriage stainless steel |
$1.46
|
2 |
|
ships same day |
12 |
999-1585
|
Bolt M5-.8 x 30mm carriage stainless steel |
$2.94
|
2 |
|
ships same day |
13 |
189-8658
|
Squeegee vacuum adapter |
$7.48
|
1 |
|
usually ships 11-24 days |
14 |
189-8660
|
O-ring |
$5.50
|
1 |
|
usually ships 11-24 days |
15 |
189-8519
|
Squeegee blade retainer plate |
$24.29
|
1 |
|
usually ships 11-24 days |
16 |
189-9019
|
Squeegee rear support |
$24.29
|
1 |
|
ships same day |
17 |
999-1583
|
Bolt M5-.8 x 35mm carriage stainless steel |
$3.89
|
2 |
|
ships same day |
