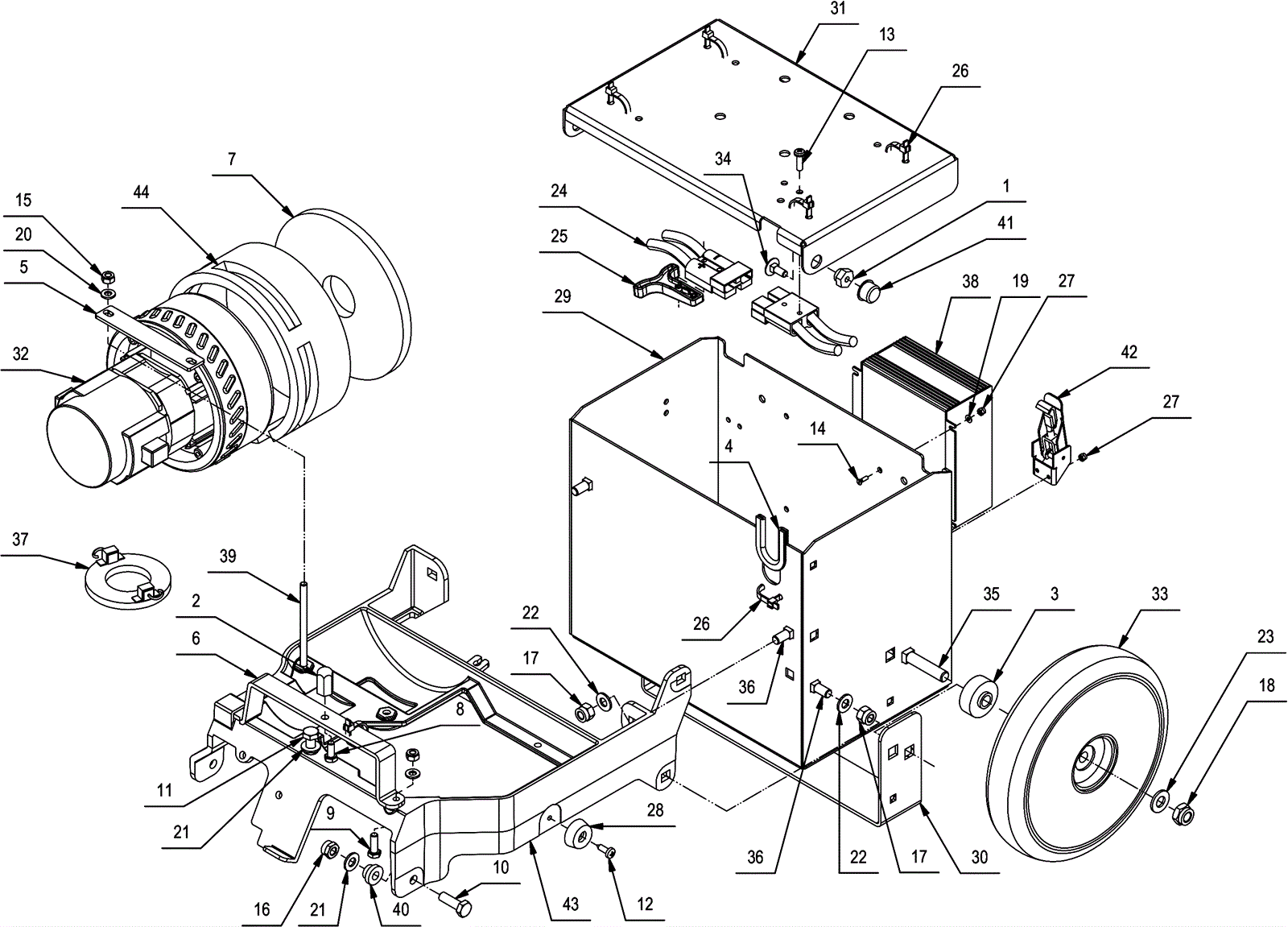

VISPA 35B Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-3285 Bushing $15.27 2 usually ships 11-24 days
2 189-9037 Hex lug $38.61 1 usually ships 1-5 days
3 189-9039 Bushing $58.03 2 usually ships 11-24 days
4 189-1137 Profile Call for price 1 usually ships 11-24 days
5 189-9041 Clamp plate $19.33 1 usually ships 1-5 days
6 189-8669 Bracket $53.24 1 usually ships 1-5 days
7 189-5142 Sound deadening foam $7.54 1 usually ships 11-24 days
8 999-0978 Bolt M6-1 x 14mm hex head stainless steel $0.99 1 ships same day
9 999-1592 Bolt M6-1 x 18mm hex head stainless steel $1.24 1 usually ships 1-5 days
10 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 2 ships same day
11 999-0900 Screw M8-1.25 x 18mm hex head stainless steel $2.64 1 ships same day
12 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 2 ships same day
13 283-1685 LOCK SCREW 5X17 ZN $4.80 2 usually ships 6-27 days
15 189-5094 Nut M6 $2.38 3 usually ships 11-24 days
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
17 283-1737 NUT M8 AUTOBL. UNI 7474 INOX LOW $4.58 4 usually ships 6-27 days
18 189-5741 Lock nut Call for price 2 usually ships 11-24 days
19 999-1521 Washer M3 flat stainless steel $0.99 4 ships same day
20 999-6714 Washer M6 x 12mm flat stainless steel $0.99 3 ships same day
21 999-1267 Washer M8 flat zinc $0.99 3 ships same day
22 189-9108 Washer flat stainless steel $2.38 4 usually ships 11-24 days
23 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
24 991-2103 50amp charger plug SB50 with pins (red) $6.17 2 usually ships 5-16 days
25 189-9046 Charger plug tee handle $21.53 1 usually ships 1-5 days
26 189-4453 Clamp $17.41 6 usually ships 11-24 days
27 283-2095 LOCK NUT M3 UNI 7473 ST.STEEL $2.84 8 usually ships 6-27 days
28 189-9062 Rubber cap $13.01 2 usually ships 11-24 days
29 189-9048 Battery box $446.03 1 usually ships 1-5 days
30 189-9049 Bracket $86.71 1 usually ships 1-5 days
31 189-9050 Battery box lid $140.14 1 usually ships 1-5 days
32 189-5141 12V vacuum motor $426.34 1 usually ships 11-24 days
33 189-8667 Wheel $65.10 2 usually ships 11-24 days
34 189-8521 Bolt M6 x 16mm carriage head stainless steel $2.38 2 ships same day
35 189-9051 Bolt M10 x 50mm carriage stainless steel $17.41 2 usually ships 1-5 days
36 283-2279 SCREW M8X20 UNI 5732 DIN 603 SS $4.18 4 usually ships 6-27 days
37 189-9053 Carbon brush (OBSOLETE) $33.35 1 usually ships 11-24 days
38 189-6186 12V 6amp AGM onboard battery charger $712.27 1 usually ships 11-24 days
39 283-2301 SCREW M6X90 TE UNI5737 DIN931 GALV $2.84 2 usually ships 6-27 days
40 189-8671 Bushing $16.81 2 usually ships 11-24 days
41 283-2318 CORK $2.99 2 usually ships 6-27 days
42 189-9056 Latch $21.76 2 usually ships 1-5 days
43 189-8668 Main frame weldment $96.64 1 usually ships 11-24 days
44 189-5140 Sound deadening foam $7.48 1 usually ships 11-24 days
