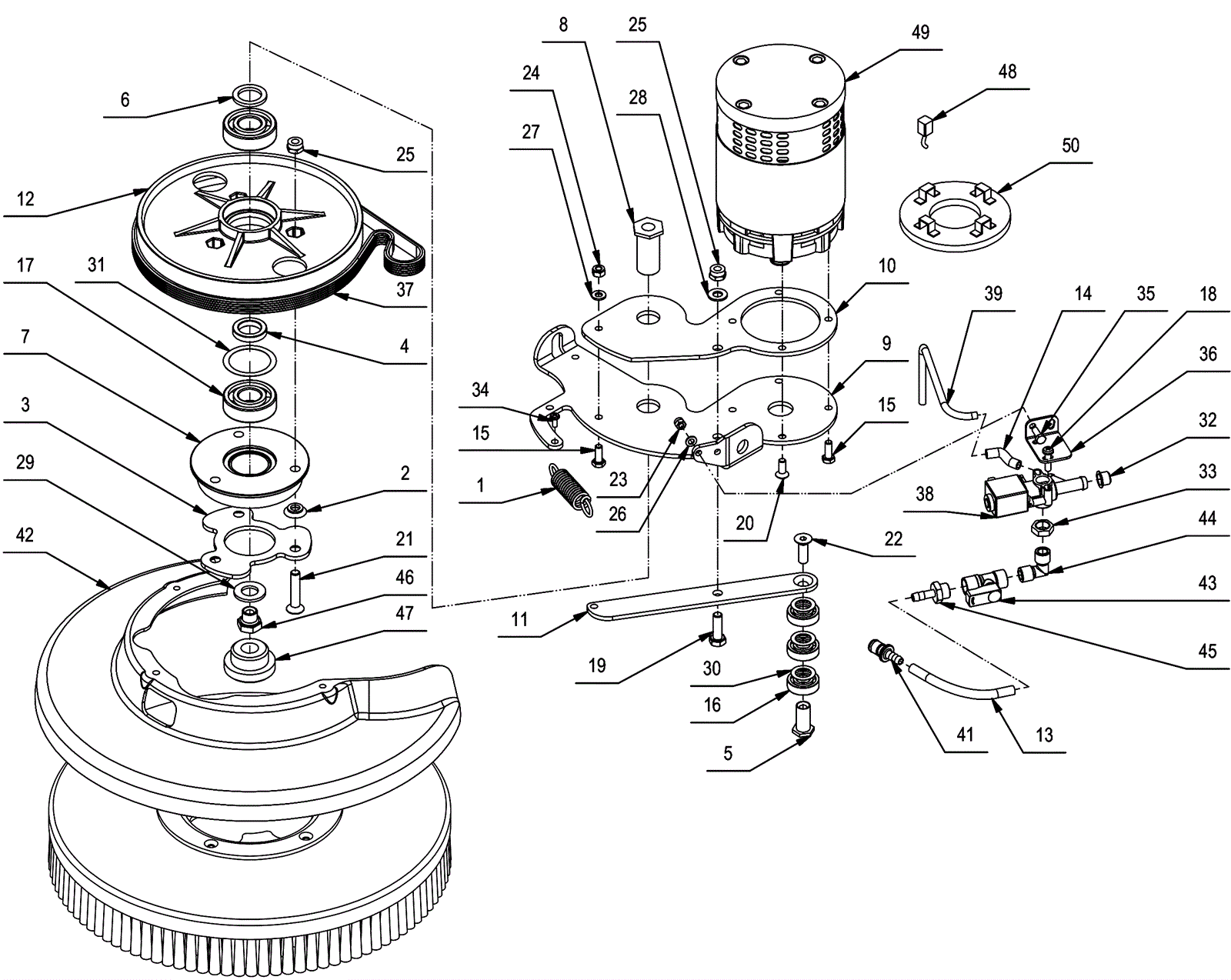

VISPA 35B Single Brush Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 189-8639 Belt tensioning spring $9.65 1 ships same day
2 189-8646 Spacer $12.84 3 usually ships 11-24 days
3 189-8645 Clutch plate $29.79 1 ships same day
4 189-8635 Spacer $33.85 1 usually ships 1-5 days
5 189-8637 Bushing $31.63 1 usually ships 11-24 days
6 189-8638 Spacer $31.44 1 usually ships 1-5 days
7 189-8633 Clutch flange $137.69 1 usually ships 1-5 days
8 189-8634 Bearing shaft $60.94 1 usually ships 1-5 days
9 189-8643 Bracket $99.14 1 usually ships 1-5 days
10 189-8644 Motor mount plate $38.61 1 usually ships 1-5 days
11 189-8636 Belt tensioning arm $19.33 1 usually ships 1-5 days
12 189-8648 Clutch pulley $176.31 1 usually ships 1-5 days
13 189-8655 Hose $5.50 1 usually ships 11-24 days
14 189-8652 Tubing $5.50 1 usually ships 11-24 days
15 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
16 203-3263 Bearing $31.44 3 ships same day
17 189-8647 Bearing $16.48 2 usually ships 11-24 days
18 283-1584 SCREW 5X20 UNI7687 GALV $4.58 2 usually ships 6-27 days
19 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
20 283-1699 SCREW M6X16 UNI5933 DIN7991 (10.9) Z $4.58 1 usually ships 6-27 days
21 999-0771 Screw M8-1.25 x 40mm flat head socket $2.48 3 ships same day
22 999-1588 Screw M8-1.25 x 25mm flat head socket zinc $0.99 1 ships same day
23 189-8730 Nut M5 x 7mm hex nylock zinc $12.84 2 usually ships 11-24 days
24 189-5094 Nut M6 $2.38 1 usually ships 11-24 days
25 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
26 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
27 999-6714 Washer M6 x 12mm flat stainless steel $0.99 1 ships same day
28 999-1267 Washer M8 flat zinc $0.99 1 ships same day
29 999-0972 Washer M14 flat $2.75 1 ships same day
30 189-8725 Shim $12.84 3 usually ships 11-24 days
31 189-8738 Shim $17.41 1 usually ships 11-24 days
32 189-8653 Cap $5.50 1 ships same day
33 999-0971 Nut 1/4-20 jam stainless steel $0.99 1 ships same day
34 999-9101 Screw M4-.7 x 10mm pan head stainless steel $0.99 3 ships same day
35 999-1587 Bolt M5-.8 x 14mm hex head zinc $0.99 2 usually ships 11-24 days
36 189-8640 Bracket $14.55 1 usually ships 1-5 days
37 189-8616 Belt $41.80 1 usually ships 11-24 days
38 189-5128 Solenoid valve $189.09 1 usually ships 11-24 days
39 189-8642 Copper pipe 1/4 x 8 inch $46.92 1 usually ships 1-5 days
41 189-9014 Male quick connect $11.17 1 usually ships 11-24 days
42 189-8656 Brush cover $148.85 1 usually ships 11-24 days
43 189-8651 Double female ball valve $41.00 1 ships same day
44 189-8649 90 degree threaded elbow $13.01 1 usually ships 11-24 days
45 189-8650 Brass fitting $7.48 1 usually ships 11-24 days
46 189-8721 Hex lug $30.42 1 usually ships 11-24 days
47 189-8654 Bushing $19.33 1 usually ships 11-24 days
48 189-9034 Carbon brush $15.59 4 usually ships 11-24 days
49 189-9035 12V brush motor $821.23 1 usually ships 11-24 days
50 189-6399 Carbon Brush Holder Call for price 1 usually ships 11-24 days
