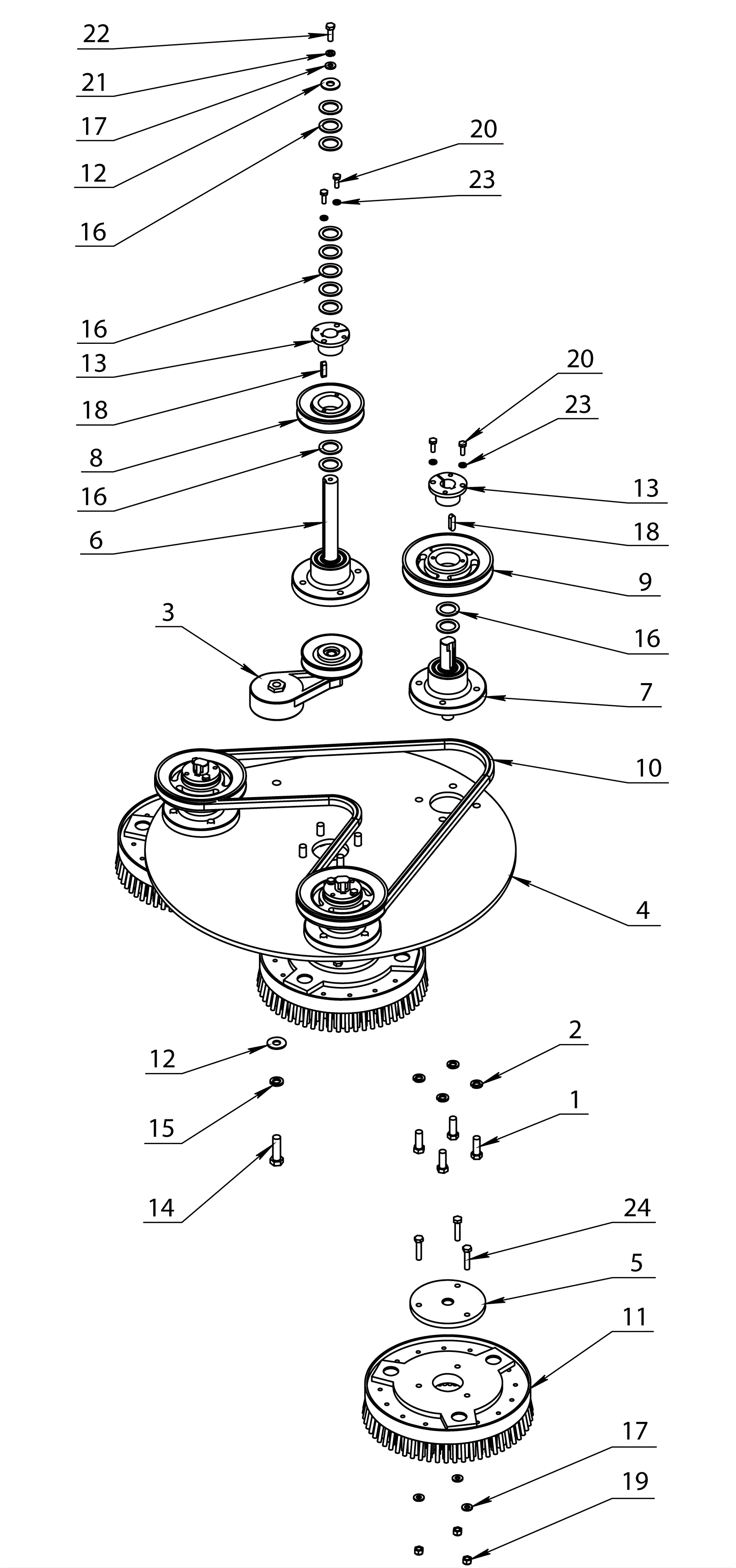

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
204-0071
|
Bolt |
16 |
|
|
2 |
204-0070
|
Washer lock |
16 |
|
|
3 |
189-7689
|
Large belt tensioner |
1 |
|
|
4 |
189-7688
|
30 inch brush mounting plate |
1 |
|
|
5 |
189-7690
|
Threaded mounting plate |
3 |
|
|
6 |
189-7691
|
Stripper center drive hub assembly |
1 |
|
|
7 |
189-7692
|
Stripper brush drive hub assembly |
3 |
|
|
8 |
189-7693
|
Pulley bushing BK47QT |
1 |
|
|
9 |
189-7694
|
Pulley bushing BK62QT |
3 |
|
|
10 |
189-4374
|
BB77 belt |
1 |
|
|
11 |
189-4375
|
11 inch stripping brush |
3 |
|
|
12 |
999-0328
|
Washer 7/16 USS flat |
2 |
|
|
13 |
189-8066
|
Bushing |
4 |
|
|
14 |
204-0084
|
Bolt |
1 |
|
|
15 |
204-0080
|
Washer lock |
1 |
|
|
16 |
999-1963
|
Washer 1 x 1 1/2 14 gauge zinc |
16 |
|
|
17 |
999-1964
|
Washer 5/16 SAE flat zinc |
10 |
|
|
18 |
204-0019
|
Key Stock |
4 |
|
|
19 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
9 |
|
|
20 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
8 |
|
|
21 |
999-0028
|
Washer 5/16 split lock plain finish |
1 |
|
|
22 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
1 |
|
|
23 |
999-1049
|
Washer 1/4 split lock zinc plated |
8 |
|
|
24 |
999-0552
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
9 |
|
|
