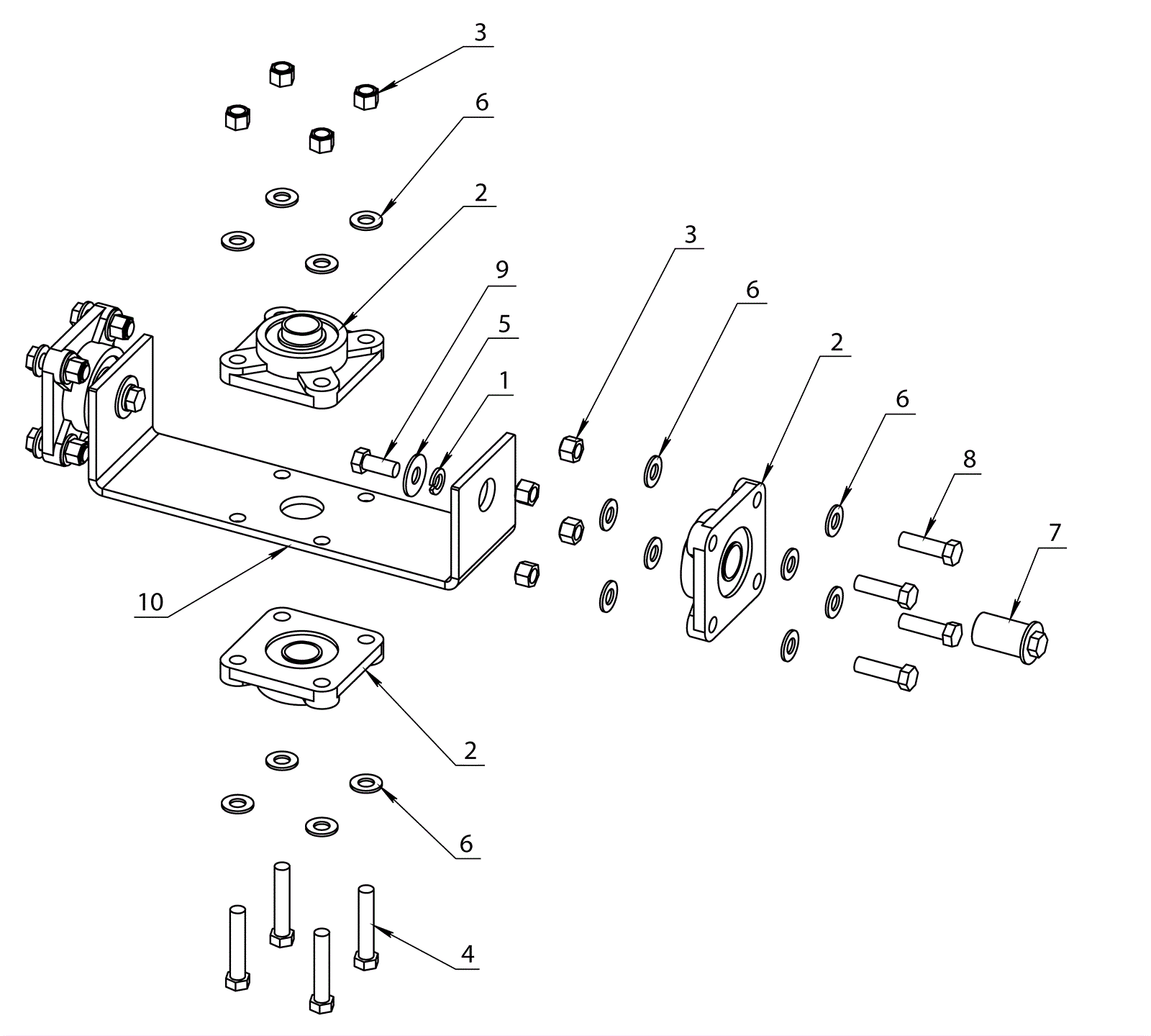

BIG BERTHA Pivot Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
1 204-0070 Washer lock $2.16 2 usually ships 11-24 days
2 189-7685 Flange bushing $99.08 4 usually ships 11-24 days
3 189-5147 Nut $2.16 12 usually ships 1-5 days
4 999-1960 Screw 7/16-14 x 2 1/4 hex head zinc $2.07 4 usually ships 11-24 days
5 999-0328 Washer 7/16 USS flat $0.99 2 ships same day
6 999-0328 Washer 7/16 USS flat $0.99 24 ships same day
7 189-7686 Pivot axle $36.67 2 usually ships 11-24 days
8 999-1961 Screw 7/16-14 x 1 1/2 hex head zinc $1.32 8 usually ships 11-24 days
9 999-1962 Screw 7/16-14 x 1 hex head zinc $1.14 2 usually ships 11-24 days
10 189-7687 Pivot bracket $50.13 1 usually ships 11-24 days
