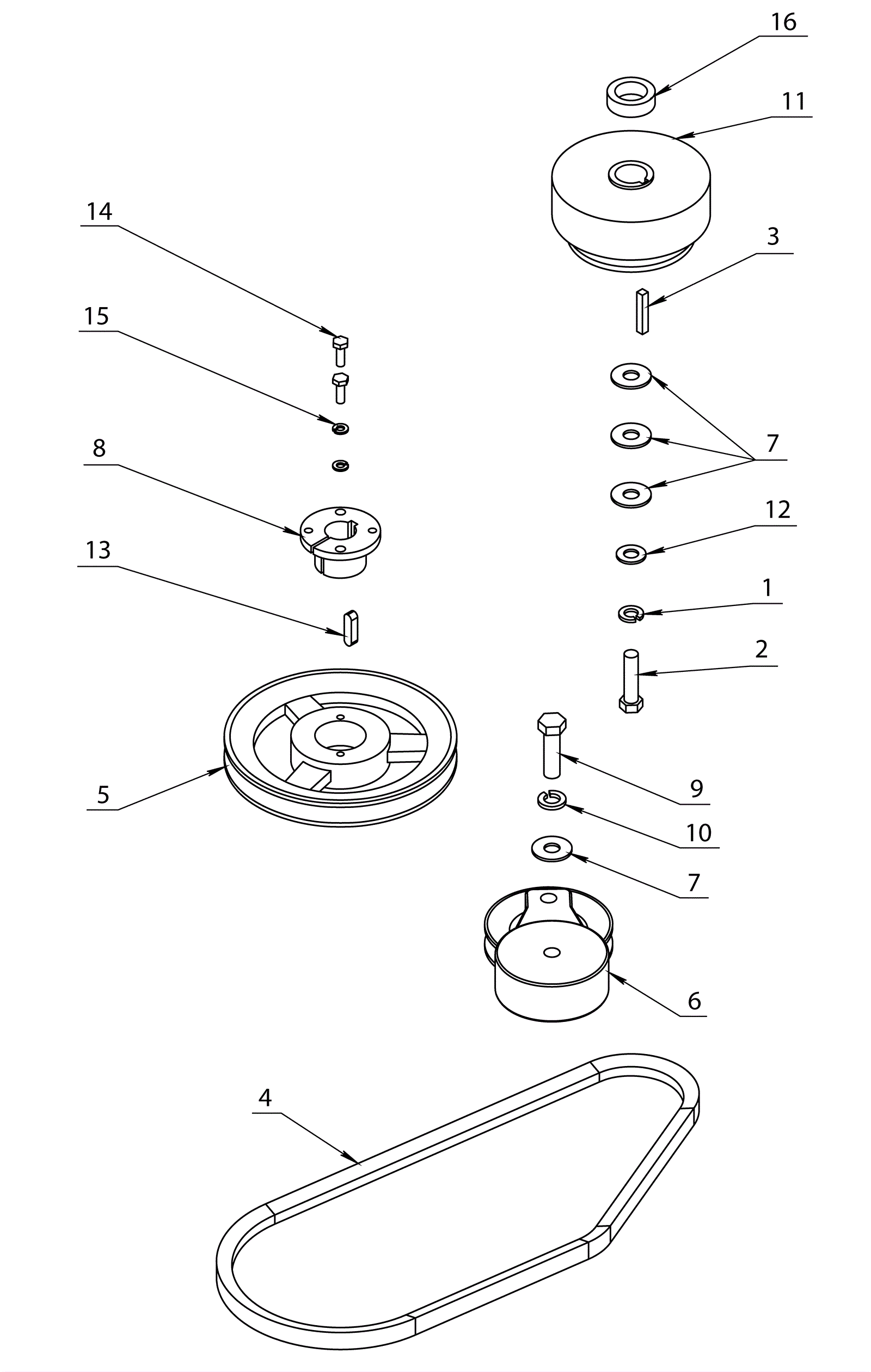

BIG BERTHA Main Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 204-0070 Washer lock $2.16 1 usually ships 11-24 days
2 189-2203 Bolt $2.16 1 usually ships 1-5 days
3 189-8755 Square keyway $3.98 1 usually ships 1-5 days
4 991-0024 B44 belt $15.17 1 usually ships 17-33 days
5 189-7682 Pulley bushing $59.40 1 usually ships 11-24 days
6 189-7683 Rotary tensioner $326.68 1 usually ships 11-24 days
7 999-0328 Washer 7/16 USS flat $0.99 4 ships same day
8 189-8066 Bushing $14.03 1 usually ships 11-24 days
9 204-0084 Bolt $2.70 1 usually ships 1-5 days
10 204-0080 Washer lock $2.16 1 usually ships 1-5 days
11 189-9286 Centrifugal clutch $415.20 1 usually ships 1-5 days
12 999-0328 Washer 7/16 USS flat $0.99 1 ships same day
13 204-0019 Key Stock $5.00 1 usually ships 1-5 days
14 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 2 ships same day
15 999-1049 Washer 1/4 split lock zinc plated $0.99 2 ships same day
16 189-7684 Stripper clutch top spacer $13.48 1 usually ships 11-24 days
