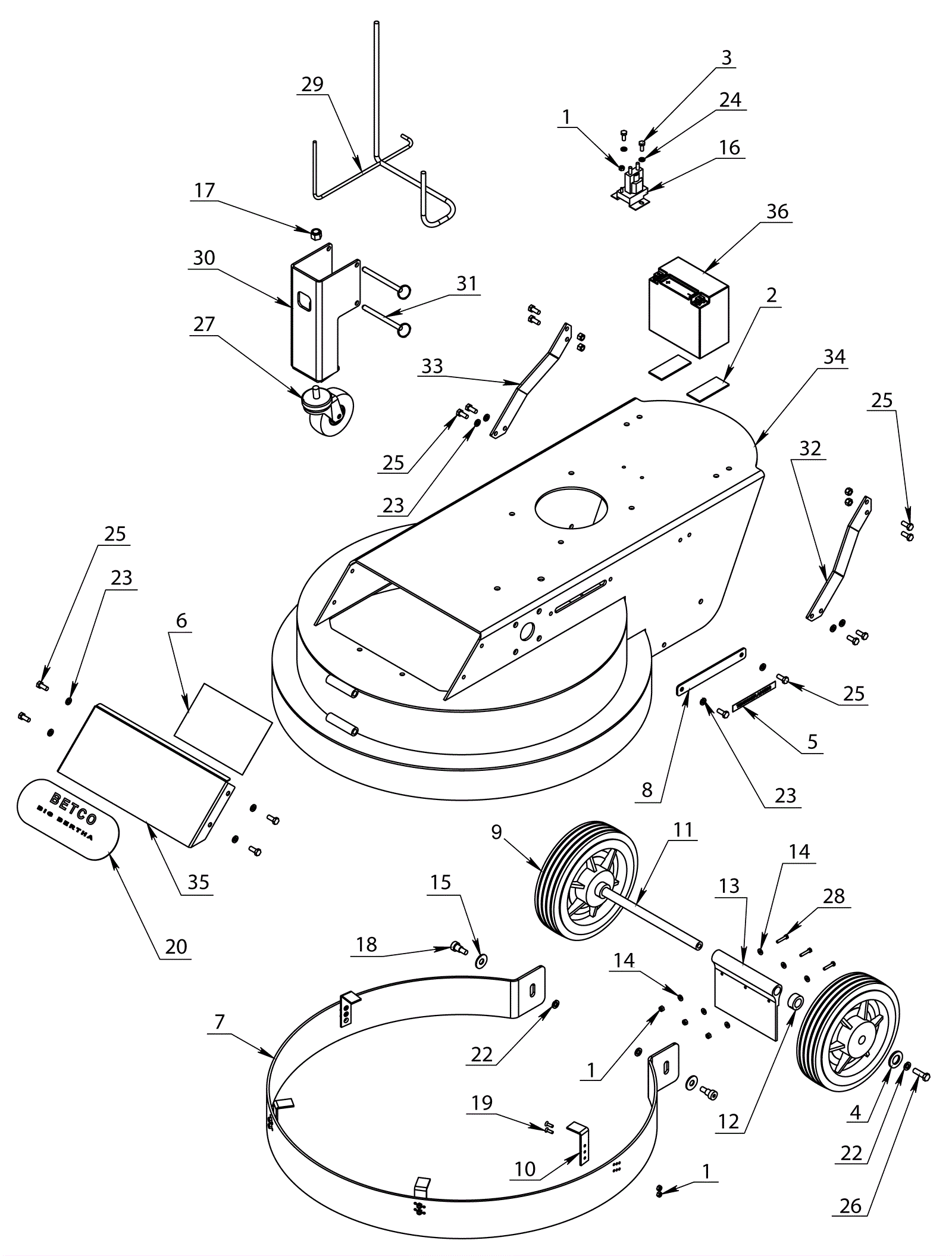

Deck Assembly

#PartDescription ReqNotesAvailability
1 204-0062 Nut 12
2 189-5162 Felt (sold by the foot) 2
3 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
4 999-0630 Washer 3/4 SAE flat 2
5 189-7668 Tensioner access decal 1
6 189-7669 Belt path decal 1
7 189-4391 Splash skirt 1
8 189-7670 Access cover 1
9 189-7671 Wheel 2
10 189-7672 Skirt hanger 4
11 189-7673 Wheel axle 1
12 189-7674 Shaft collar 2
13 189-7675 Rubber splash guard 1
14 189-0382 Washer #10 SAE flat zinc 6
15 999-1959 Screw 10-32 x 5/8 flat head phillips zinc 2
16 204-0120 12V solenoid 1
17 999-0118 Nut 1/2-13 nylon insert lock zinc plated 1
18 189-3091 Screw 1/2 x 1/2 shoulder socket head 2
19 999-1959 Screw 10-32 x 5/8 flat head phillips zinc 8
20 189-7676 Big Bertha decal 1
22 999-0034 Washer 3/8 split lock plain finish 4
23 999-0028 Washer 5/16 split lock plain finish 10
24 999-1049 Washer 1/4 split lock zinc plated 2
25 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 14
26 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
28 189-3093 Screw 10-32 x 1 hex head zinc 3
29 189-7555 Wiring harness 1
30 189-7615 Transport wheel bracket 1
31 189-4733 Pin 2
32 189-7678 Left hand handle support 1
33 189-7679 Right hand handle support 1
34 189-7680 30 inch strip machine deck 1
35 189-7681 Front access panel 1
36 162-0007 12V 12Ah sealed battery 1
N/S 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
