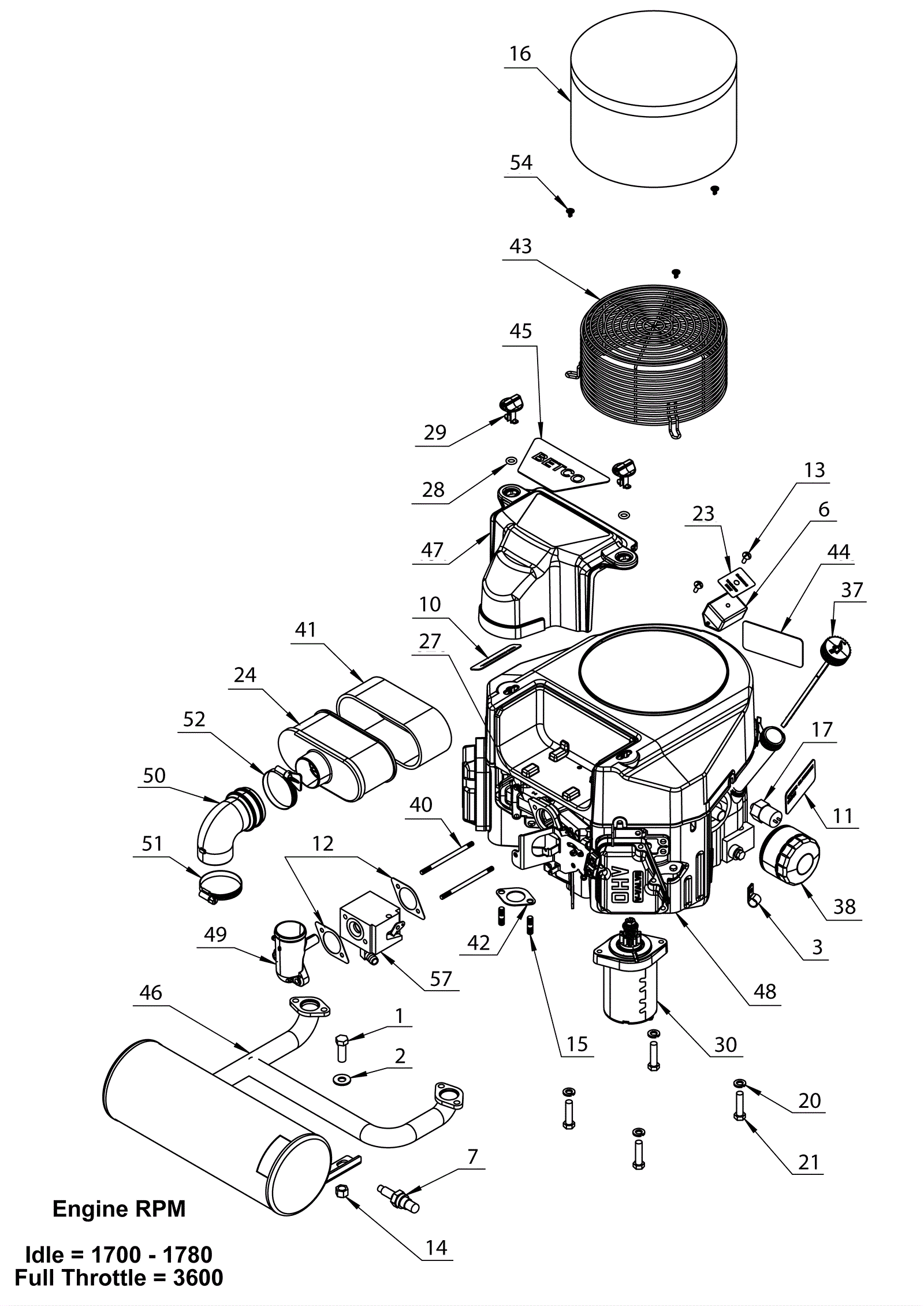

Kawasaki Engine Assembly

#PartDescription ReqNotesAvailability
1 204-0071 Bolt 1
2 999-0120 Washer 3/8 SAE flat 1
3 189-8452 J clip stamped hook 1
6 189-8544 Emissions shutdown module with oxygen sensor 1
7 189-8544 Emissions shutdown module with oxygen sensor 1
10 189-5146 Decal 1
11 189-5150 Oil pressure switch decal 1
12 178-0042 Carb intake gasket 2
13 189-0392 Screw #10 x 5/8 pan head phillips 2
14 189-5147 Nut 1
15 178-0036 Exhaust stud bolt 4
16 204-0162 Dust bonnet 1
17 189-8542 Oil pressure switch with 2 prongs 1
20 999-0034 Washer 3/8 split lock plain finish 4
21 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel 4
22 154-0042 Oil drain valve kit 1
23 189-5152 Propane emission decal 1
24 178-0256 Air filter 1
27 178-0280 Intake manifold 1
28 178-0278 O-ring 2
29 178-0277 Thumb nut 2
30 178-7106 Electric starter 1
37 189-3090 Oil dipstick 1
38 178-0254 Oil filter 1
39 178-0016 O-ring 1
40 178-0284 Stud bolt 2
41 178-0255 Air pre-filter 1
42 178-0257 Gasket 2
43 189-5144 Air intake guard 1
44 189-5151 Emission decal 1
45 189-5145 Betco decal 1
46 189-3087 Catalytic muffler and manifold assembly 1
47 178-0279 Air filter case 1
48 189-5149 Kawasaki FS481V engine 1
49 189-5157 Intake pipe 1
50 178-0282 Hose 1
51 178-0283 Hose clamp 1
52 178-0281 Hose clamp 1
53 178-0265 Voltage regulator 1
54 189-5143 Screw 3
57 189-3217 120V vacuum motor assembly 1
N/S 189-8544 Emissions shutdown module with oxygen sensor 1
N/S 189-5153 M-18 steel plug 1
N/S 178-0032 Valve stem seal 4
N/S 189-5154 Clutch decal 1
N/S 178-0043 Top oil seal (upper crankshaft - Kawasaki) 1
N/S 166-0008 Spark plug (Kawasaki FS481V) 2
N/S 178-0264 Ignition coil assembly Kawasaki FS481V 2
N/S 991-7143 Ignition coil assembly 2
N/S 178-0261 Cylinder head gasket (FS481V engine only) 2
N/S 189-7667 FS481V cylinder head #1 assembly 1
N/S 189-7647 FS481V cylinder head #2 assembly 1
N/S 178-0262 Rocker case gasket 2
N/S 178-0270 Intake valve 2
N/S 178-0269 Exhaust valve 2
N/S 189-4387 Kawasaki FS481V engine with emission kit 1 (includes 189-8544)
N/S 189-7568 Kawasaki FS481V engine 1
