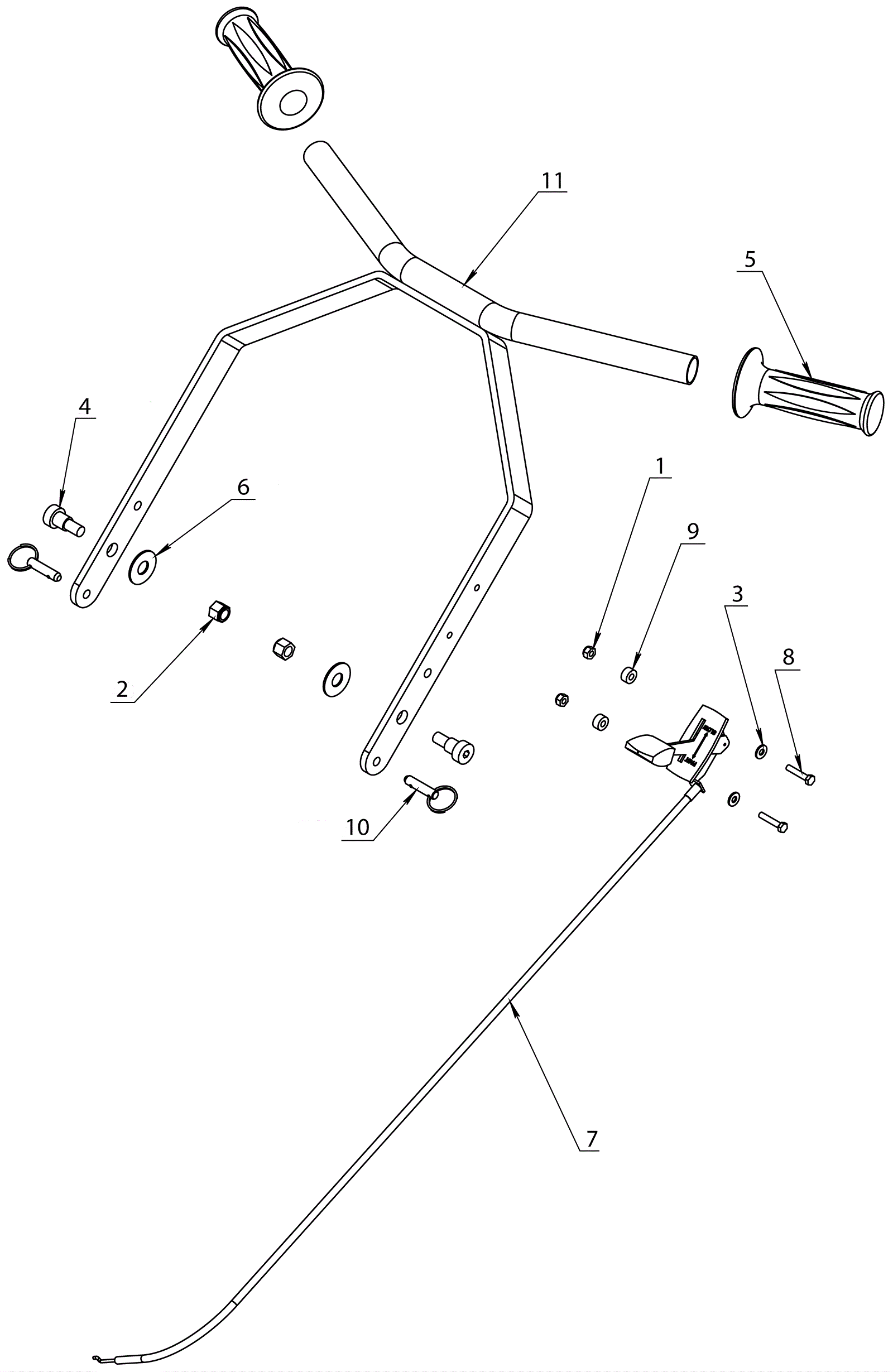

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
204-0062
|
Nut |
2 |
|
|
2 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
|
3 |
189-0382
|
Washer #10 SAE flat zinc |
2 |
|
|
4 |
189-3091
|
Screw 1/2 x 1/2 shoulder socket head |
2 |
|
|
5 |
189-3083
|
Hand grip |
2 |
|
|
6 |
189-3092
|
Washer 1/2 x 1 1/4 nylon |
2 |
|
|
7 |
189-3082
|
38 inch throttle cable |
1 |
|
|
8 |
189-3093
|
Screw 10-32 x 1 hex head zinc |
2 |
|
|
9 |
189-3094
|
Nylon spacer |
2 |
|
|
10 |
189-3095
|
Retaining pin with ring |
2 |
|
|
11 |
189-3096
|
Handle bar weldment |
1 |
|
|
