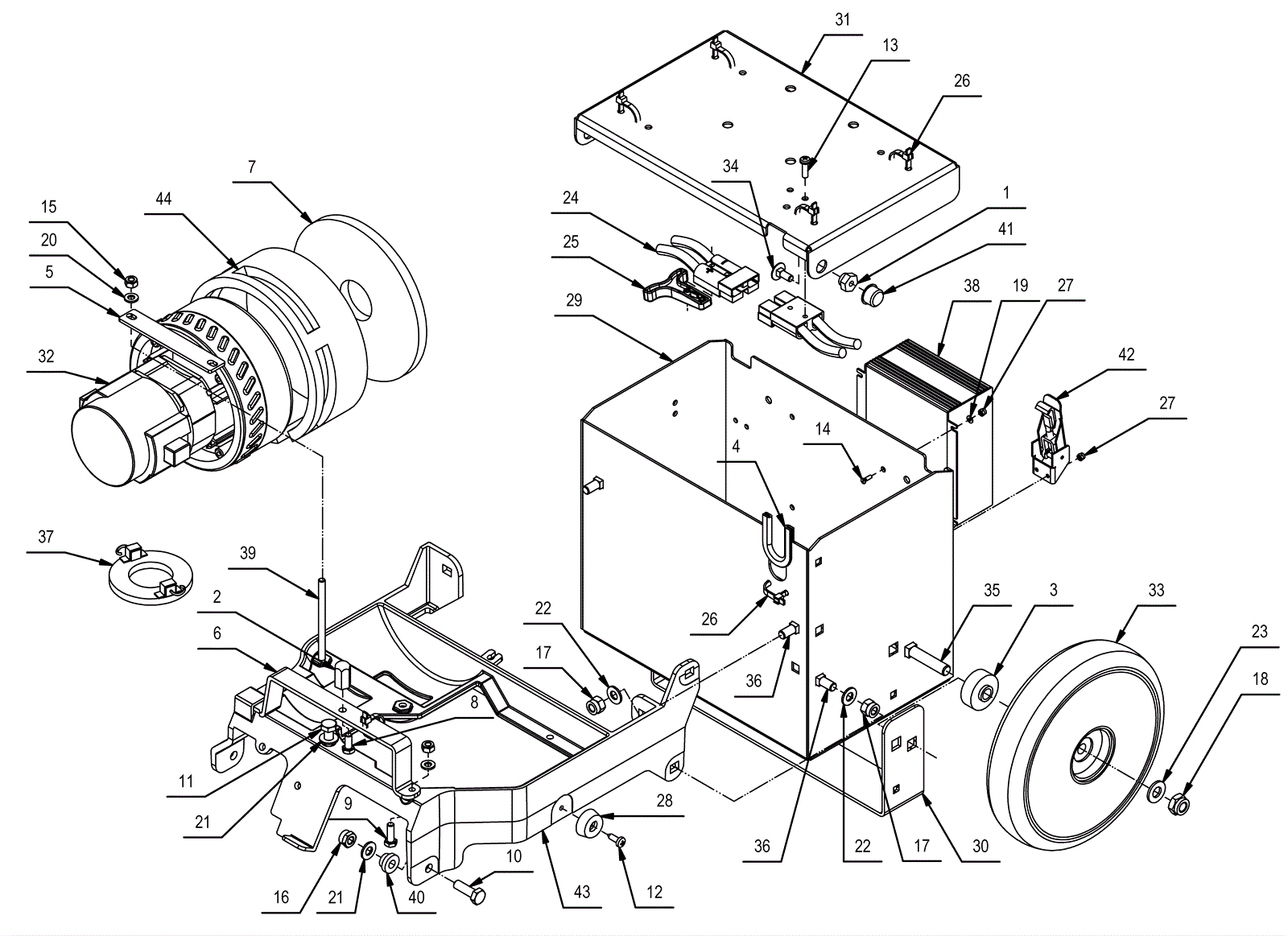

Main Frame Assembly

#PartDescription ReqNotesAvailability
1 189-9038 Bushing 2
2 189-9037 Hex lug 1
3 189-9039 Bushing 2
4 189-9040 Protective trim edging 1
5 189-9041 Clamp plate 1
6 189-8669 Bracket 1
7 189-5142 Sound deadening foam 1
8 206-0682 Screw (OBSOLETE) 1
9 999-1592 Bolt M6-1 x 18mm hex head stainless steel 1
10 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 2
11 999-0900 Screw M8-1.25 x 18mm hex head stainless steel 1
12 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 2
13 189-9081 Screw pan head phillips self tapping 2
14 999-0900 Screw M8-1.25 x 18mm hex head stainless steel 8
15 189-5094 Nut M6 3
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
18 999-1120 Nut M10-1.5 nylon insert lock stainless steel 2
19 999-1521 Washer M3 flat stainless steel 4
20 999-6714 Washer M6 x 12mm flat stainless steel 3
21 999-1267 Washer M8 flat zinc 3
22 999-9097 Washer M8 flat stainless steel 4
23 999-9099 Washer M10 flat stainless steel 2
24 189-7550 SB50 blue connector with pins 2
25 189-9046 Charger plug tee handle 1
26 206-0623 Clamp (OBSOLETE) 6
27 999-1161 Nut M3-.5 hex nylock stainless steel 8
28 189-9047 Rubber bumper 2
29 189-9048 Battery box 1
30 189-9049 Bracket 1
31 189-9050 Battery box lid 1
32 189-5141 12V vacuum motor 1
33 189-8667 Wheel 2
34 189-8521 Bolt M6 x 16mm carriage head stainless steel 2
35 189-9051 Bolt M10 x 50mm carriage stainless steel 2
36 189-9052 Bolt M8 x 20mm carriage stainless steel 4
37 189-9053 Carbon brush (OBSOLETE) 1
38 189-6186 12V 6amp AGM onboard battery charger 1
39 999-1609 Bolt M6-1 x 90mm hex head stainless steel 2
40 189-8671 Bushing 2
41 189-9055 Cap 2
42 189-9056 Latch 2
43 189-8668 Main frame weldment 1
