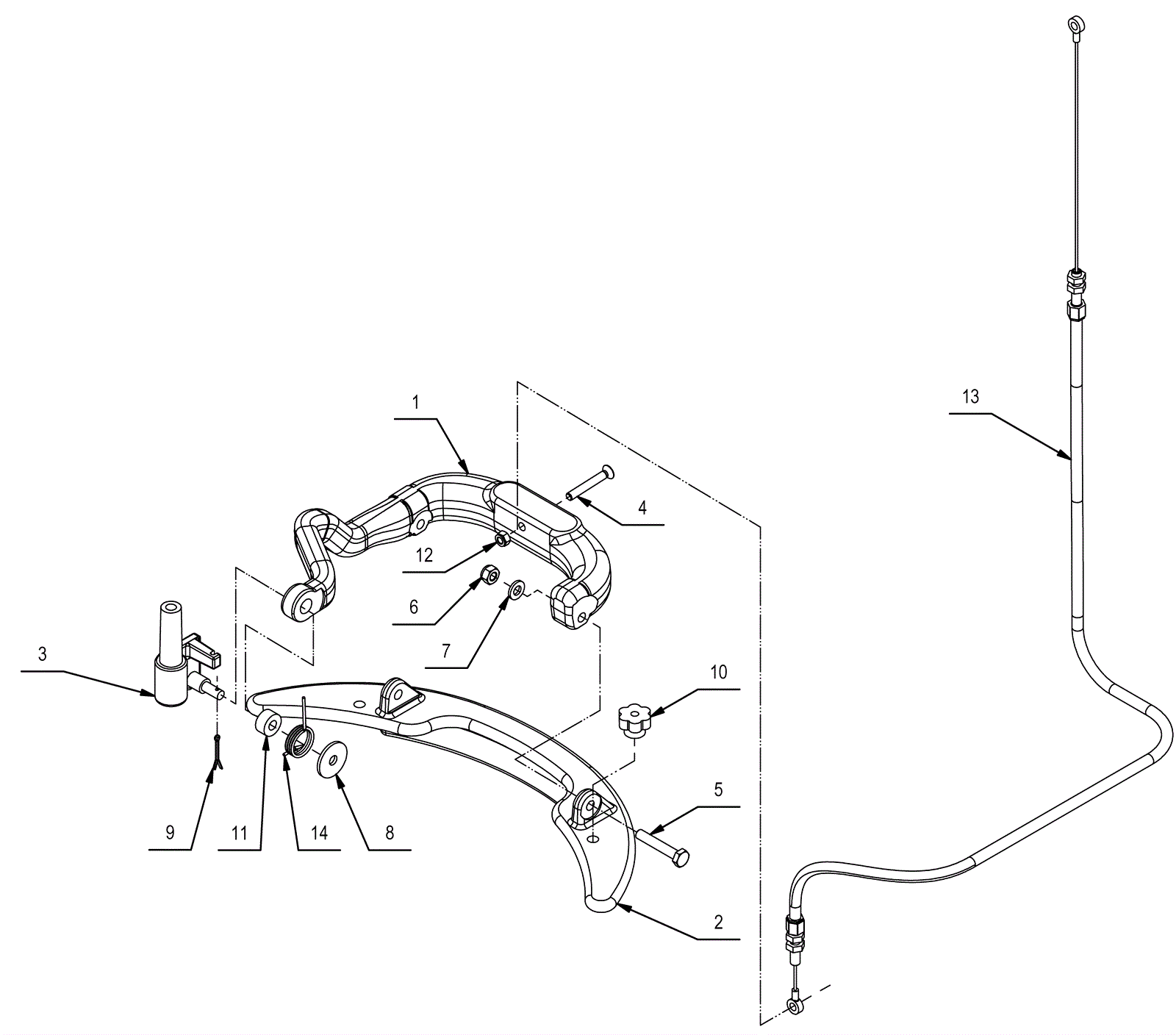

GENIE B Squeegee Yoke Assembly

#PartDescription ReqNotesAvailability
1 189-8662 Squeegee adjustment arm 1 usually ships 1-5 days
2 189-8663 Squeegee weldment 1 usually ships 1-5 days
3 189-9020 Support 1 usually ships 13-20 days
4 999-1589 Screw M5-.8 x 35mm phillips oval head stainless steel 1 usually ships 11-14 days
5 999-1265 Screw M6-1 x 35mm flat head phillips stainless steel 2 usually ships 11-14 days
6 189-5094 Nut M6 2 usually ships 13-20 days
7 999-6714 Washer M6 x 12mm flat stainless steel 2 usually ships 11-14 days
8 189-5096 Washer 5 x 24 x 2 1 usually ships 13-20 days
10 189-8664 Knob 2 usually ships 13-20 days
11 189-5098 Spacer 1 usually ships 13-20 days
12 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 1 usually ships 11-14 days
13 189-5133 Squeegee lift cable 1 usually ships 13-20 days
14 189-5099 Spring 1 usually ships 13-20 days
