| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

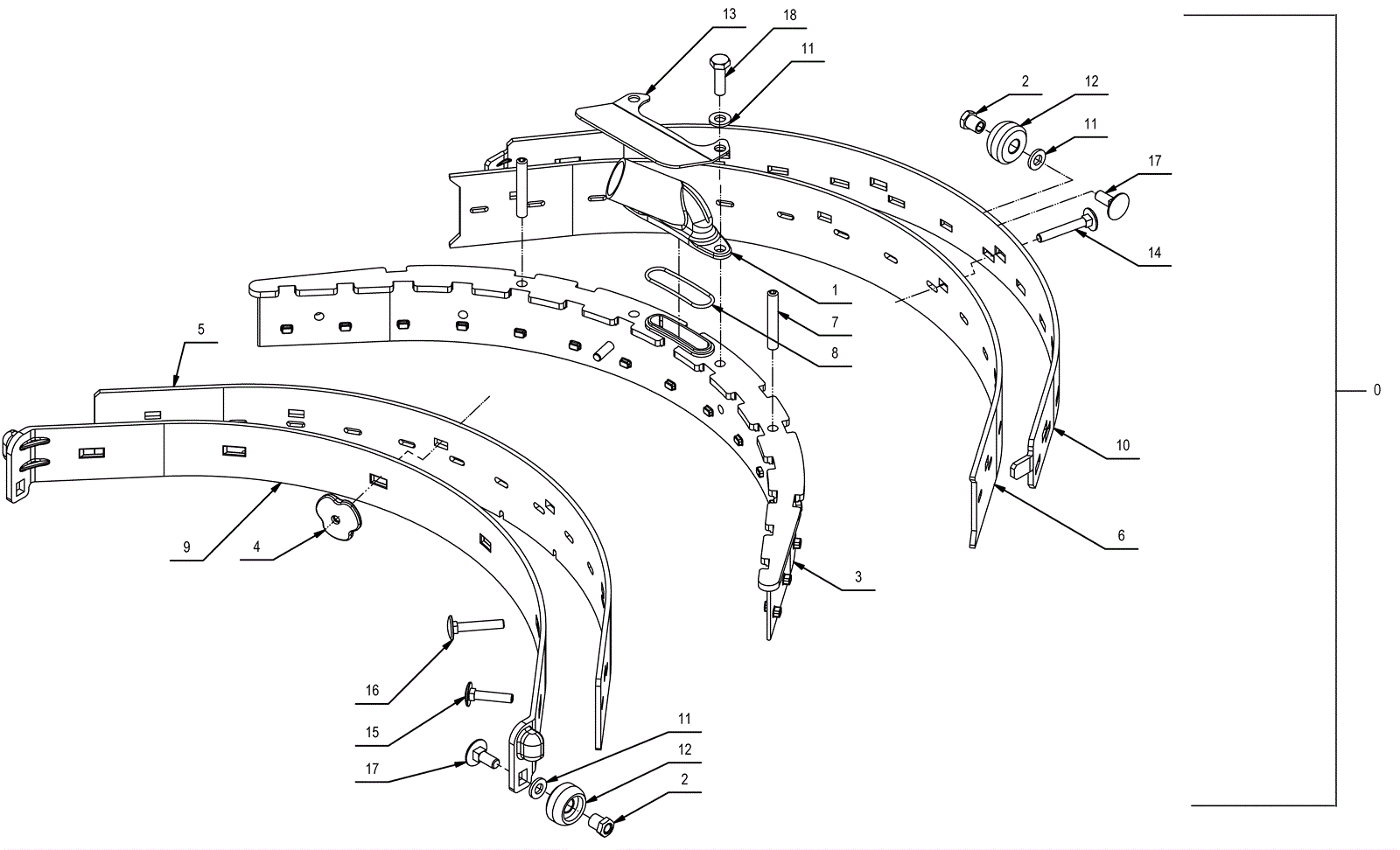

189-9036
|
14 inch squeegee assembly |
1 |
(includes 1-18) |
|
1 |
189-8658
|
Squeegee vacuum adapter |
1 |
|
|
2 |
189-8522
|
Bushing |
1 |
|
|
3 |
189-8659
|
Squeegee shoe |
1 |
|
|
4 |
189-8523
|
Squeegee blade retainer bushing |
1 |
|
|
5 |
189-8524
|
Front squeegee blade |
1 |
|
|
6 |
189-8525
|
Rear squeegee blade |
1 |
|
|
7 |
189-8732
|
Screw M6 x 40mm hex set flat end stainless steel |
1 |
|
|
8 |
189-8660
|
O-ring |
1 |
|
|
9 |
189-8519
|
Squeegee blade retainer plate |
1 |
|
|
10 |
189-9019
|
Squeegee rear support |
1 |
|
|
11 |
999-6714
|
Washer M6 x 12mm flat stainless steel |
1 |
|
|
12 |
189-8520
|
Squeegee support wheel |
4 |
|
|
13 |
189-8661
|
Squeegee hose guard |
4 |
|
|
14 |
999-1583
|
Bolt M5-.8 x 35mm carriage stainless steel |
2 |
|
|
15 |
999-1584
|
Bolt M5-.8 x 25mm carriage stainless steel |
1 |
|
|
16 |
999-1585
|
Bolt M5-.8 x 30mm carriage stainless steel |
1 |
|
|
17 |
189-8521
|
Bolt M6 x 16mm carriage head stainless steel |
1 |
|
|
18 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
