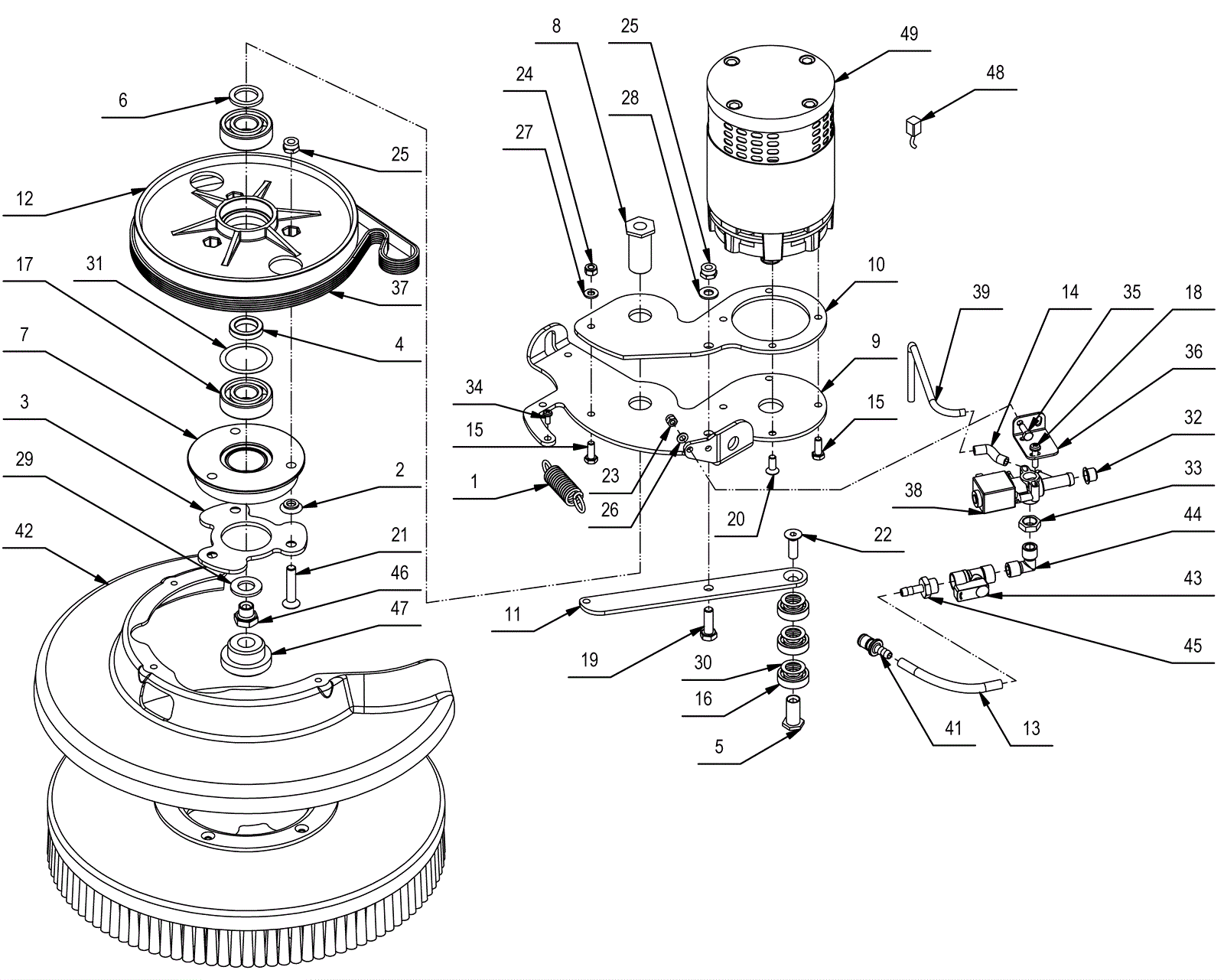

GENIE B Brush Deck Assembly

#PartDescription ReqNotesAvailability
1 189-8639 Belt tensioning spring 1 usually ships 13-20 days
2 189-8646 Spacer 3 usually ships 13-20 days
3 189-8645 Clutch plate 1 usually ships 13-20 days
4 189-8635 Spacer 1 usually ships 1-5 days
5 189-8637 Bushing 1 usually ships 13-20 days
6 189-8638 Spacer 1 usually ships 1-5 days
7 189-8633 Clutch flange 1 usually ships 1-5 days
8 189-8634 Bearing shaft 1 usually ships 1-5 days
9 189-8643 Bracket 1 usually ships 1-5 days
10 189-8644 Motor mount plate 1 usually ships 1-5 days
11 189-8636 Belt tensioning arm 1 usually ships 1-5 days
12 189-8648 Clutch pulley 1 usually ships 1-5 days
13 189-8655 Hose 1 usually ships 13-20 days
14 189-8652 Tubing 1 usually ships 13-20 days
15 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4 usually ships 11-14 days
16 203-3263 Bearing 3 usually ships 16-21 days
17 189-8647 Bearing 2 usually ships 13-20 days
19 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1 usually ships 11-14 days
21 999-0771 Screw M8-1.25 x 40mm flat head socket 3 usually ships 11-14 days
22 999-1588 Screw M8-1.25 x 25mm flat head socket zinc 1 usually ships 11-14 days
23 189-8730 Nut M5 x 7mm hex nylock zinc 2 usually ships 13-20 days
24 189-5094 Nut M6 1 usually ships 13-20 days
25 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4 usually ships 11-14 days
26 999-9100 Washer M5 flat stainless steel 2 usually ships 11-14 days
27 999-6714 Washer M6 x 12mm flat stainless steel 1 usually ships 11-14 days
28 999-1267 Washer M8 flat zinc 1 usually ships 11-14 days
29 999-0972 Washer M14 flat 1 usually ships 14-20 days
30 189-8725 Shim 3 usually ships 13-20 days
31 189-8738 Shim 1 usually ships 13-20 days
32 189-8653 Cap 1 usually ships 13-20 days
33 999-0971 Nut 1/4-20 jam stainless steel 1 usually ships 11-14 days
34 999-9101 Screw M4-.7 x 10mm pan head stainless steel 3 usually ships 11-14 days
35 999-1587 Bolt M5-.8 x 14mm hex head zinc 2 usually ships 11-14 days
36 189-8640 Bracket 1 usually ships 1-5 days
37 189-8616 Belt 1 usually ships 13-20 days
38 189-5128 Solenoid valve 1 usually ships 13-20 days
39 189-8642 Copper pipe 1/4 x 8 inch 1 usually ships 13-20 days
41 189-9014 Male quick connect 1 usually ships 13-20 days
42 189-8656 Brush cover 1 usually ships 13-20 days
43 189-8651 Double female ball valve 1 usually ships 13-20 days
44 189-8649 90 degree threaded elbow 1 usually ships 13-20 days
45 189-8650 Brass fitting 1 usually ships 13-20 days
46 189-8721 Hex lug 1 usually ships 13-20 days
47 189-8654 Bushing 1 usually ships 13-20 days
48 189-9034 Carbon brush 4 usually ships 13-20 days
49 189-9035 12V brush motor 1 usually ships 13-20 days
